High Speed Flute Laminator
The GW Series high-speed flute laminator features quick changeovers and consistent laminating accuracy, designed to reduce operator skill requirements and improve throughput.
High Speed Flute Laminator
The GW Series high-speed flute laminator features quick changeovers and consistent laminating accuracy, designed to reduce operator skill requirements and improve throughput.
Key Features
High-Speed Production
Max speed up to 22,000 sheets/hour, with stable 16,000 sheets/hour performance for continuous 24-hour operation.
Precision lamination
Full servo control helps maintain laminating accuracy at ±1.0 mm for standard sheet paper.
Intelligent Automation
One-button operation, automatic glue and pressure adjustment, and automatic bearing lubrication reduce manual intervention.
Energy Efficient
8 kW/h power consumption, saving 20% compared to standard models
Long service life
Built with 35% margin on servo load, ensuring accuracy and durability for over 15 years.
Advanced Glue System
Energy savings, reduced glue use, and less downtime accelerate your investment return.
Choose Your Model

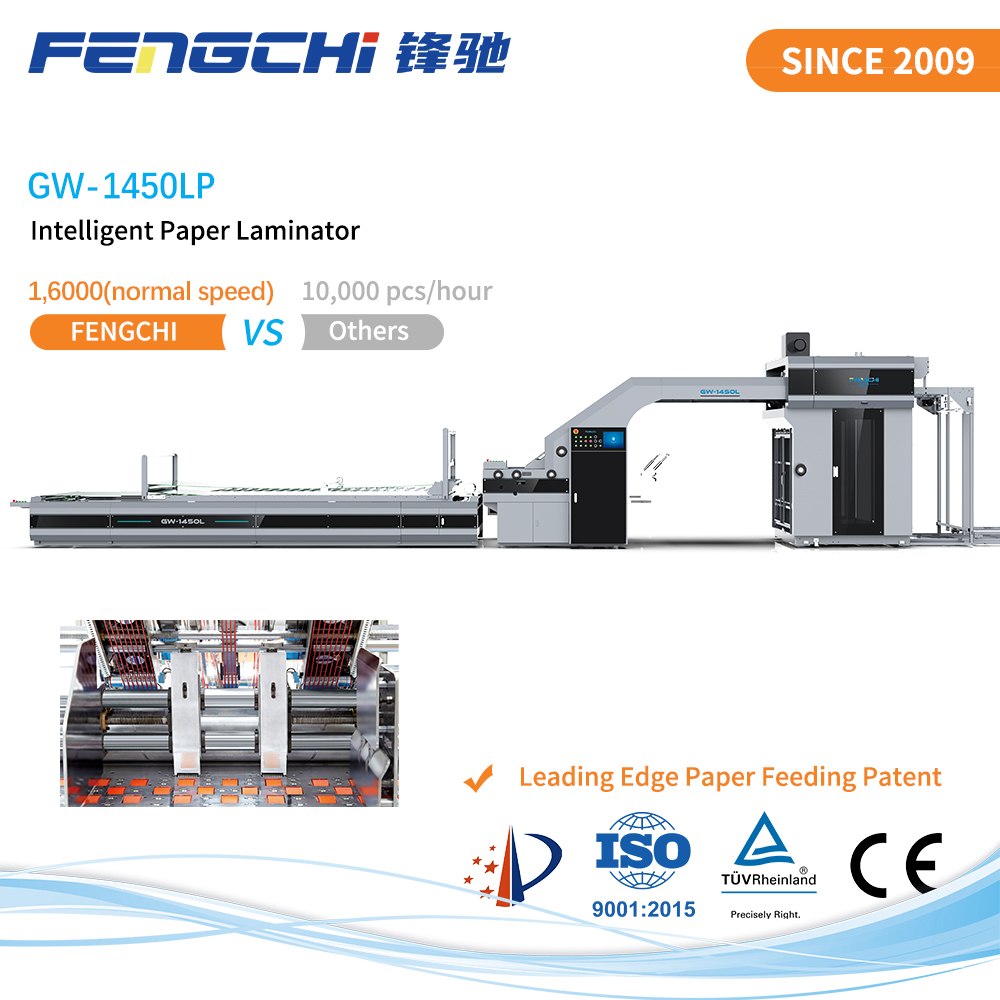

GW-1450lP Flute Laminator
Model: GW-1450LP (Euro-Spec Series)
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

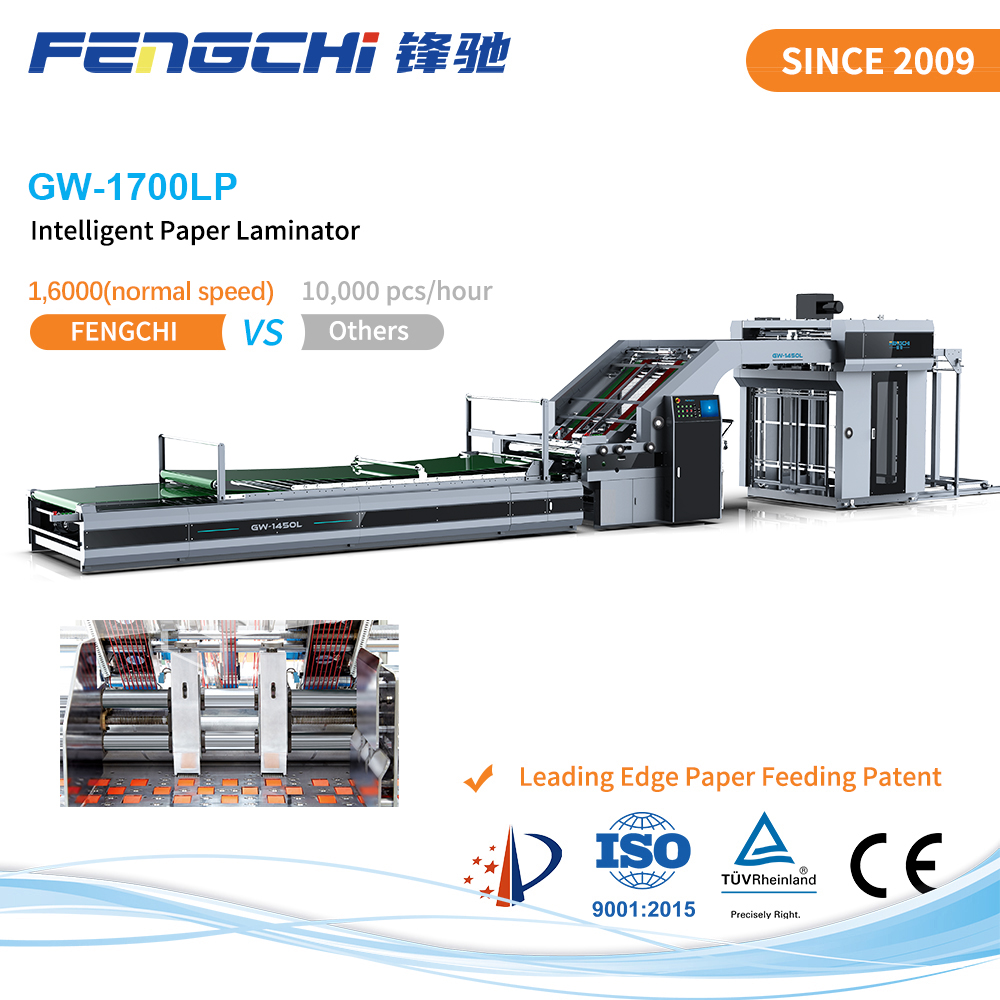

GW-1700LP Flute Laminator
Model: GW-1700LP (Euro-Spec Series)
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

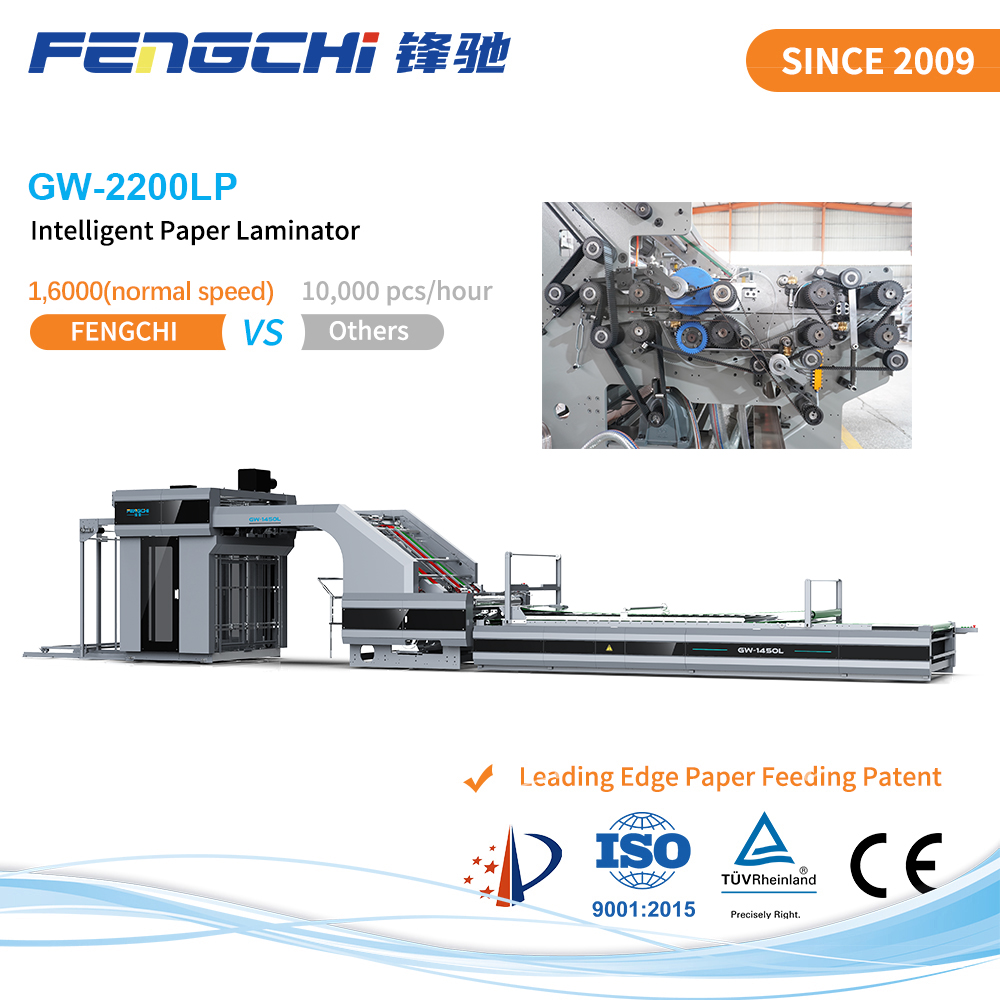

GW-2200LP Flute Laminator
Model: GW-2200LP (Euro-Spec Series)
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

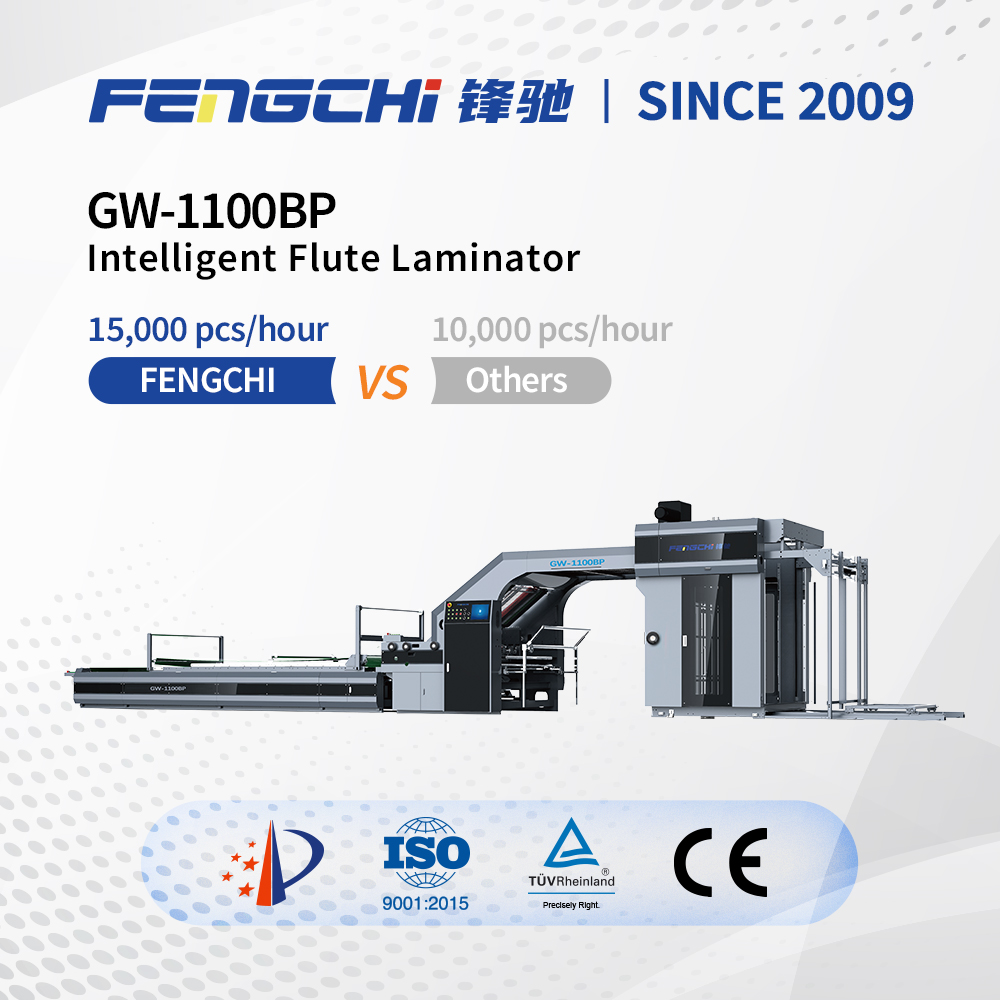

GW-1100BP Flute Laminator
Model: GW-1100BP (Euro-Spec Series)
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Feeder Method: Belt Feeder System
Max. Working Speed: 15,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
GW-1450BP Flute Laminator
Model: GW-1450BP (Euro-Spec Series)
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Feeder Method: Belt Feeder System
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
GW-1700BP Flute Laminator
Model: GW-1700BP (Euro-Spec Series)
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Feeder Method: Belt Feeder System
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
GW-2200BP Flute Laminator
Model: GW-2200BP (Euro-Spec Series)
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Feeder Method: Belt Feeder System
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
* Not sure which flute laminator machine is best suited to your needs? Contact our experts.
Technical Specifications
Leading Edge Feeder (Euro-Spec Series)
| Parameter / Model | GW-1450LP | GW-1700LP | GW-2200LP |
|---|---|---|---|
| Max Sheet Size | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size | 360 × 350 mm | ||
| Bottom Paper Sheet Thickness | 300gsm - 10mm | ||
| Upper Paper Sheet Thickness | 120g-700g | ||
| Max Speed | 22,000 sheets/hour | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Pape) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Machine Weight | 8,000 kg | 8,500 kg | 9,000 kg |
| Dimension (Lx W x H) | 15,700 × 2,400 × 2,550mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | ||
| Power | 26kW | 30kW | 32kW |
| Applicable Corrugated Board | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
Belt Feeder (Euro-Spec Series)
| Parameter / Model | GW-1100BP | GW-1450BP | GW-1700BP | GW-2200BP |
|---|---|---|---|---|
| Max Sheet Size | 1100 × 1200 mm | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size | 360 × 350 mm | 360 × 350 mm | 360 × 350 mm | 360 × 350 mm |
| Bottom Paper Sheet Thickness | 0.3mm–7mm | 300gsm - 10mm | ||
| Upper Paper Sheet Thickness | 120g-700g | |||
| Max Speed | 15,000 sheets/hour | 22,000 sheets/hour | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Pape) | |||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | |||
| Machine Weight | 6,000 kg | 8,000 kg | 8,500 kg | 9,000 kg |
| Dimension (Lx W x H) | 13,600 × 2,000 × 2,550mm | 15,700 × 2,400 × 2,550mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | |||
| Power | 20kW | 26kW | 30kW | 32kW |
| Bottom Paper Applicable | Cardboard above 300gsm, and A, B, C, E, F, 3ply, 5ply corrugated board | |||
Product Highlights
PU Bottom Feeding Wheel
- Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.
Belt Feeder System
- Extra heavy wear-resistant belt, suitable for cardboard/flute laminating, without scratch in conveying
One-button Operation
- Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.
Automatic Lubrication of Bearings
- Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.
Enlarged Glue Roller
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.
Servo Control Lifting Pile Plate
- High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.
Dual-bearing Structure
- Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
- Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
- Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.
See Our Machine in Action
Fast, Accuracy, Stable Turnkey Solution!
Our GW BP Series Flute Laminator delivers high-speed, accuracy, and stable turnkey solutions for small, medium, and large-scale production runs. Perfect for businesses seeking to boost productivity and reduce costs with a cutting-edge, corrugated laminating solution.
Final Product Samples
Read Installation Case Study
PMS Lithography was using other mounting equipment prior to acquiring the Fengchi GW1700, but according to Prosenica, it lacked speed.
“We needed to increase our productivity, and the Fengchi GW1700 provides that for us. We’ve kept the other equipment as backup, but we haven’t had to use it even for increased workloads as this machine is more than capable of doing the work. We’ve reduced the workload from two shifts to one, which has been a major advantage for us,” Prosenica said.
Why Partner with Fengchi?
If you are looking for a reliable and fully automatic high-speed flute laminator, Fengchi is the right supplier for you.
High Quality
Our quality management system is certified by ISO9001. Products manufactured by Fengchi are also certified by CE.
Vast Experience
More than 15 years of experience within automation gives us an enormous know-how and expertise in laminating solutions.
50 Patents
We continuously push the boundaries of speed and performance, securing 50 patents through independent research and development.
Global Support
We proudly export corrugated laminating solutions worldwide, ensuring international clients benefit from our innovative technology.
What Our Customers Say
Hear from industry leaders who have transformed their production with our high-speed automatic flute laminators
We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!
Best regards.
We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding. Every delivery meets our high standards, giving us a competitive edge in the market. They are truly a trustworthy partner.
I really like FENGCHI’s machines. These machines are easy to operate, and the finished products are very good.
Trusted by Industry Leaders Worldwide
Major Suppliers
Our Technical Service
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunctionwith their machinery.
Frequently Asked Questions
What is the main advantage of the GW Series High-Speed Flute Laminator?
The main advantages are high-speed output, full servo control, one-key operation, quick job changes, and automation that reduces operator skill requirements.
What materials can it laminate?
The GW Series high-speed flute lamintors can process corrugated board, cardboard, and common flute structures including A, B, C, E, F, 3-ply, 5-ply, and 7-ply applications depending on model configuration.
Is the machine suitable for high-volume production?
Yes. The GW series flute laminator has a maximum speed of 22,000 sheets/hour and stable 16,000 sheets/hour operation for continuous 24-hour running.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Do you test all your goods before delivery?
Yes, we have 100% functional testing and pilot run before delivery to ensure product integrity. All products are certificed by CE.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
What are your packaging conditions?
Usually, we pack the machine in a container with a plastic bag with desiccants, then with strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into case.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
