GW Series Flute Laminator
GW Series full servo high-speed flute laminator: 16,000 sheets/hour, ±1.0mm accuracy, 3-minute job changeover. Ideal for corrugated packaging production.
GW Series full servo high-speed flute laminator: 16,000 sheets/hour, ±1.0mm accuracy, 3-minute job changeover. Ideal for corrugated packaging production.
- Home
- /
- Flute Laminators
- /
- GW Series
Key Benefits
High-Speed Operation
Up to 16,000 sheets/hour for small paper sizes, faster speeds available
One-Key Operation
Smart HMI, remote debugging support, easy maintenance
Quick Job Changeover
Job change in 2-5 minutes, adapts to multi-variety orders, improves productivity.
Full Servo Control
Full servo control ensures high stability, high speed, and high efficiency.
Engineered for Longevity
Servo motors and drives built with 35% load reserve for 15+ years of consistent performance.
Global Support Network
24-hour remote response with 1-year warranty and lifetime support options. CE certified for international safety standards.
Choose Your Model

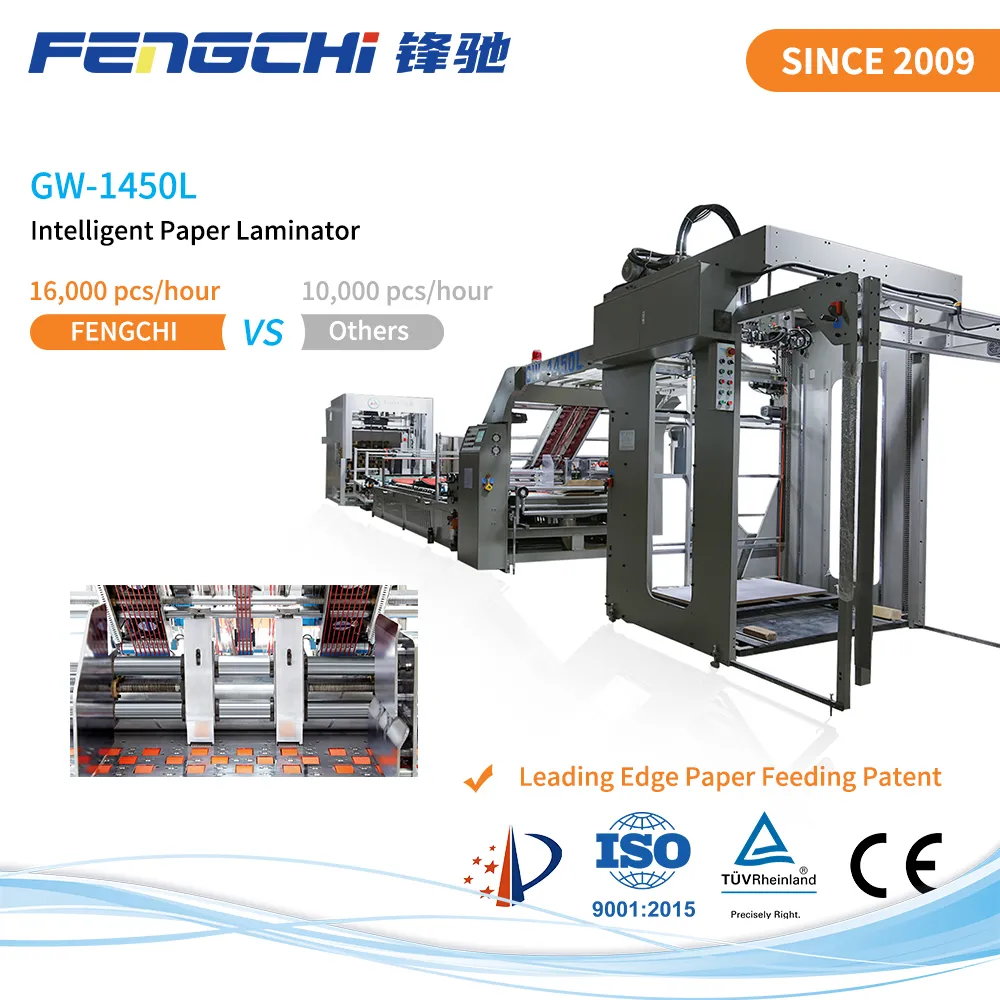

GW-1450L Flute Laminator
Product Features
- Model: GW-1450L (Mainstream Model)
- Patent: Leading Edge Paper Feeding Patent
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.

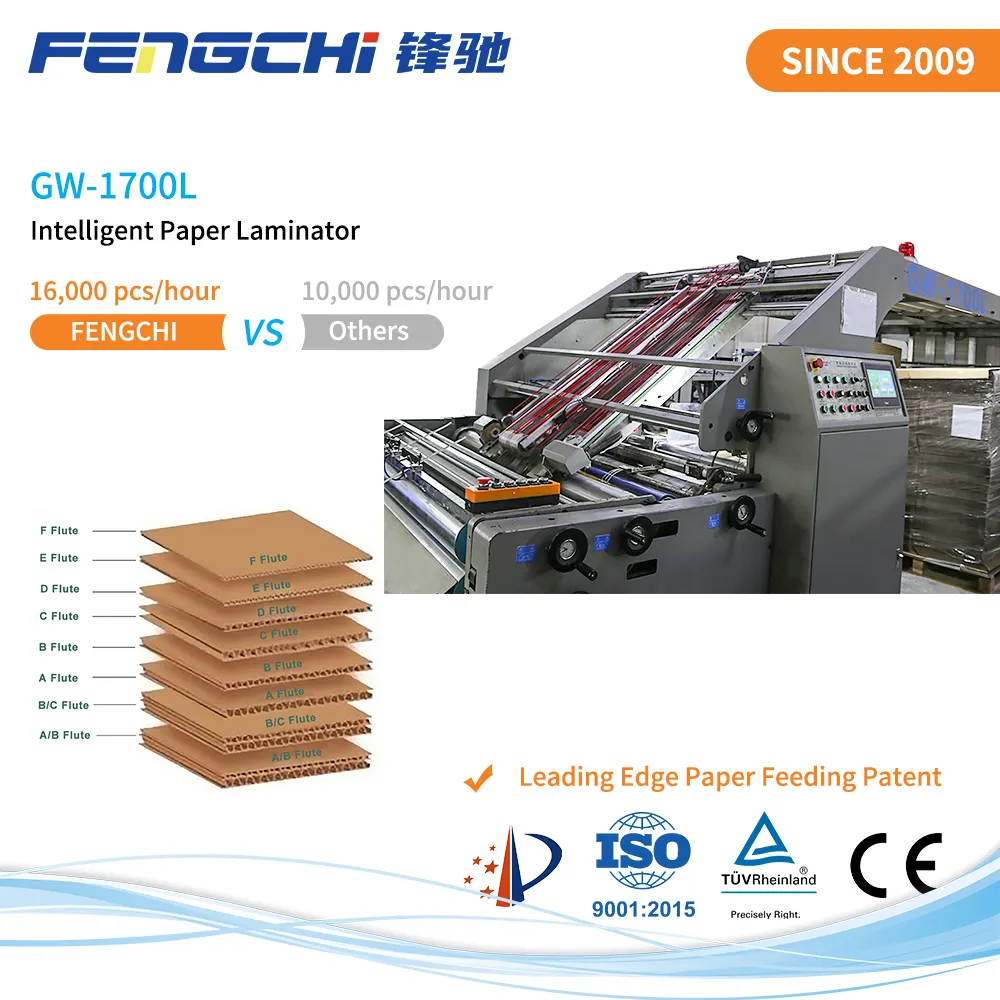

GW-1700L Flute Laminator
Product Features
- Model: GW-1700L (Mainstream Model)
- Patent: Leading Edge Paper Feeding Patent
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.

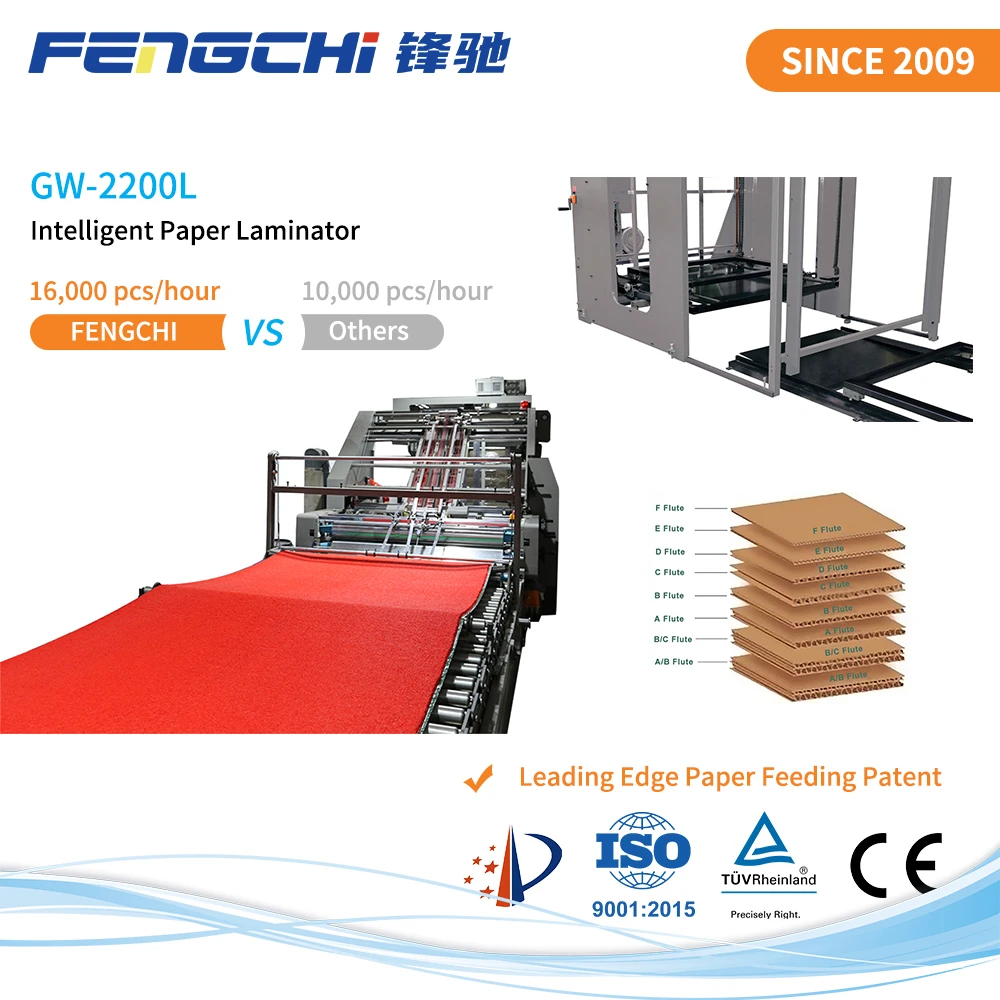

GW-2200L Flute Laminator
Product Features
- Model: GW-2200L (Mainstream Model)
- Patent: Leading Edge Paper Feeding Patent
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.

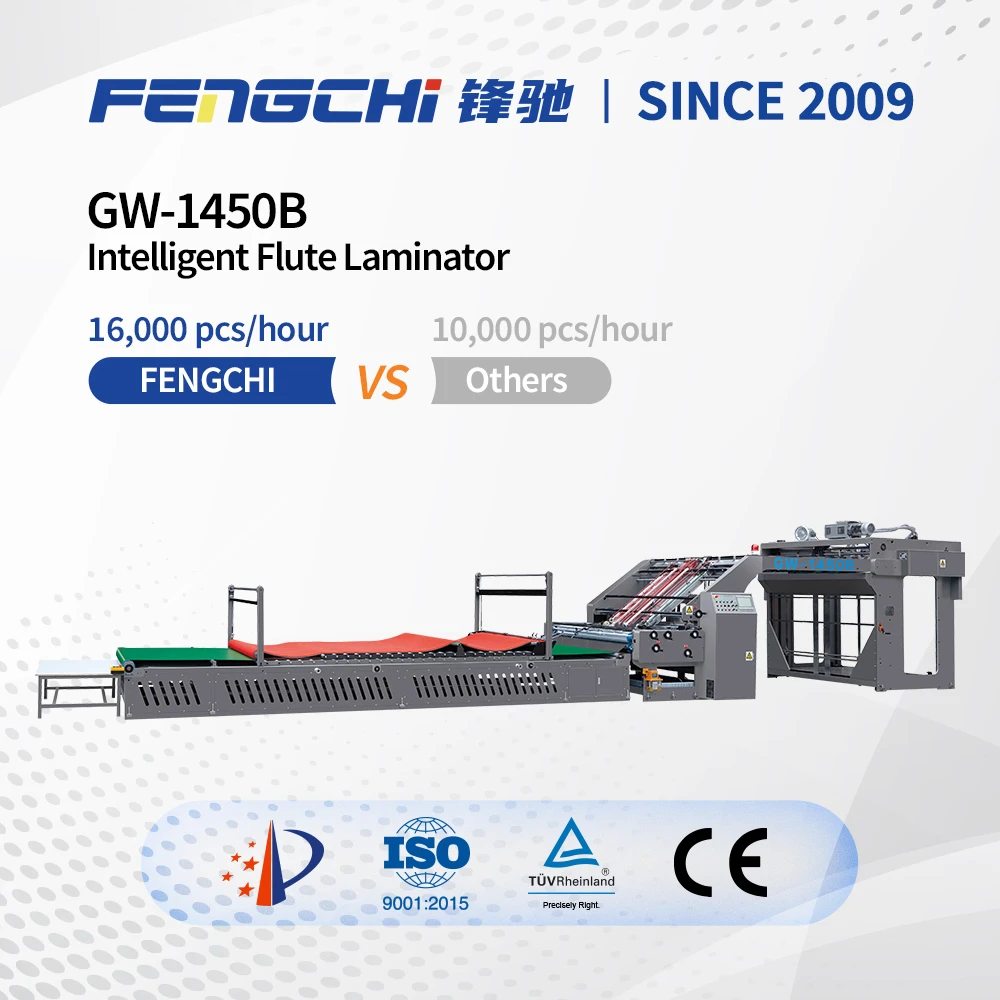

GW-1450B Flute Laminator
Product Features
- Model: GW-1450B (Mainstream Model)
- Feeder Method: Belt Feeder System
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.

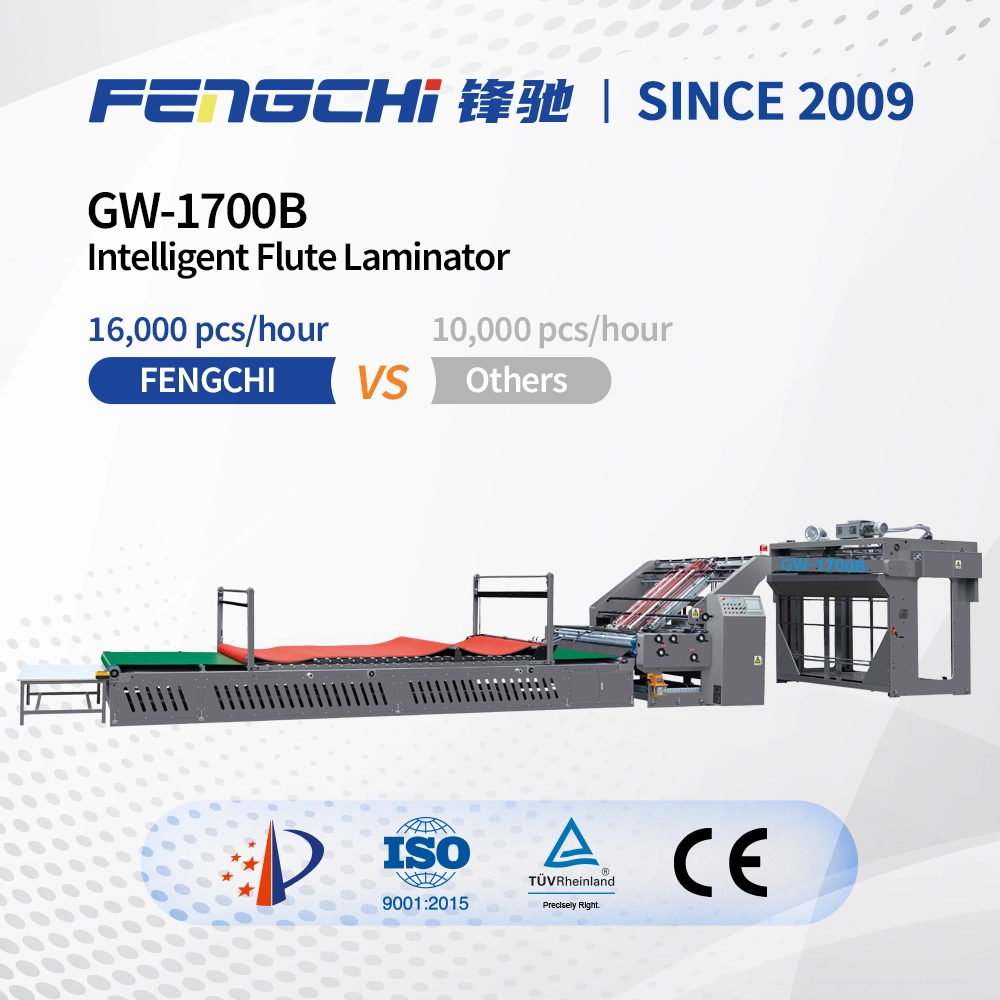

GW-1700B Flute Laminator
Product Features
- Model: GW-1700B (Mainstream Model)
- Feeder Method: Belt Feeder System
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.
GW-2200B Flute Laminator
Product Features
- Model: GW-2200B (Mainstream Model)
- Feeder Method: Belt Feeder System
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.
Technical Specifications
Leading-edge Feeder Version
| Model | GW-1450L | GW-1700L | GW-2200L |
|---|---|---|---|
| Max paper size (W × L) | 1,450 mm × 1,450 mm | 1,700 mm × 1,650 mm | 2,200 mm × 2,100 mm |
| Min paper size (W × L) | 360 mm × 350 mm | ||
| Bottom Paper Sheet Thickness | F flute-10 mm | ||
| Upper Paper Sheet Thickness | 120 g-700 g | ||
| Max Speed | 16,000 Sheets/hour (165 m/min) | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue, milky glue (PH 6~8 will be suitable) | ||
| Machine Weight | 8,000 kg | 8,500 kg | 9,000 kg |
| Dimension (L × W × H) | 15,700 mm × 2,400 mm × 2,550 mm | 16,300 mm × 2,650 mm × 2,550 mm | 18,500 mm × 3,050 mm × 2,880 mm |
| Voltage | 380 VAC / 3P | ||
| Power | 26 kw | 30 kw | 32 kw |
| Applicable paper | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
Belt Feeder Version
| Model | GW-1450B | GW-1700B | GW-2200B |
|---|---|---|---|
| Max paper size (W × L) | 1,450 mm × 1,450 mm | 1,700 mm × 1,650 mm | 2,200 mm × 2,100 mm |
| Min paper size (W × L) | 360 mm × 350 mm | ||
| Bottom Paper Sheet Thickness | 300 gsm - 10 mm | ||
| Upper Paper Sheet Thickness | 120 g-700 g | ||
| Max Speed | 16,000 Sheets/hour (165 m/min) | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue, milky glue (PH 6~8 will be suitable) | ||
| Machine Weight | 8,000 kg | 8,500 kg | 9,000 kg |
| Dimension (L × W × H) | 15,700 mm × 2,400 mm × 2,550 mm | 16,300 mm × 2,650 mm × 2,550 mm | 18,500 mm × 3,050 mm × 2,880 mm |
| Voltage | 380 VAC / 3P | ||
| Power | 26 kw | 30 kw | 32 kw |
| Bottom paper applicable | Double-coated paper above 250 gsm, and A, B, C, E, F, 3ply, 5ply corrugated board | ||
Machine Highlights

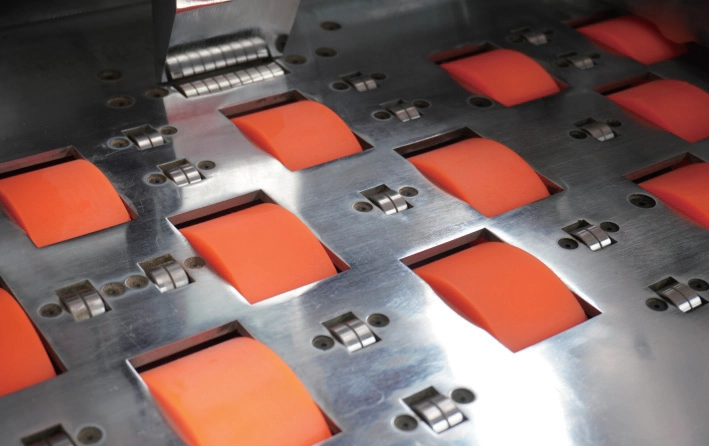

PU Bottom Feeding Wheel
- Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.

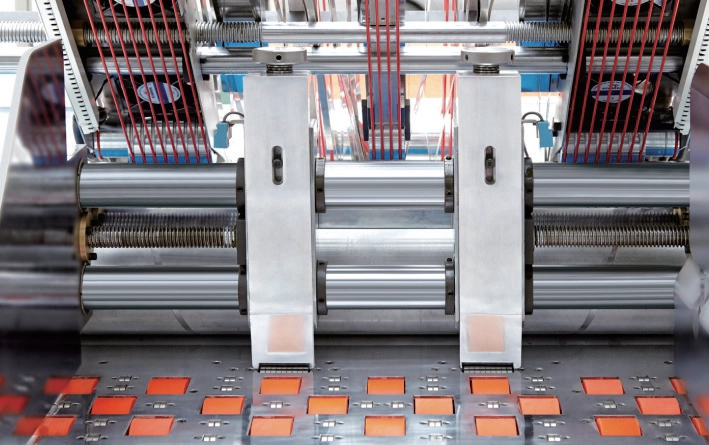

Leading-edge Feed System
- Self-developed leading-edge feed system specially for deformed, warped corrugated papers.

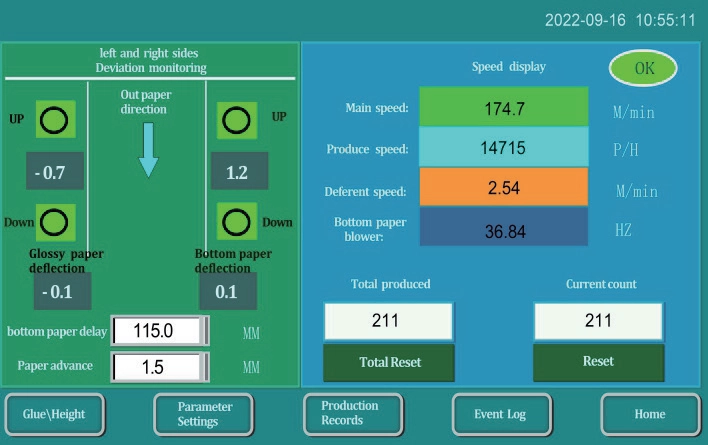

One-button Operation
- Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.

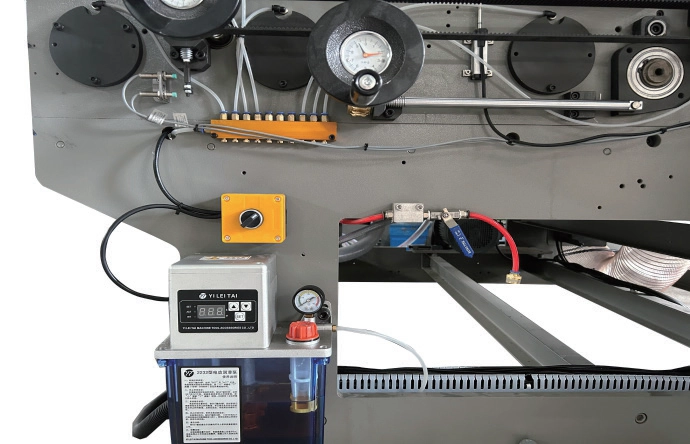

Automatic Lubrication of Bearings
- Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.
Enlarged Glue Roller
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.

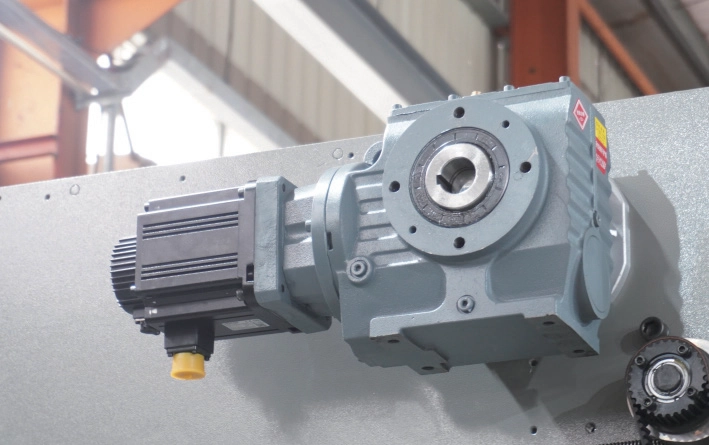

Servo Control Lifting Pile Plate
- High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.

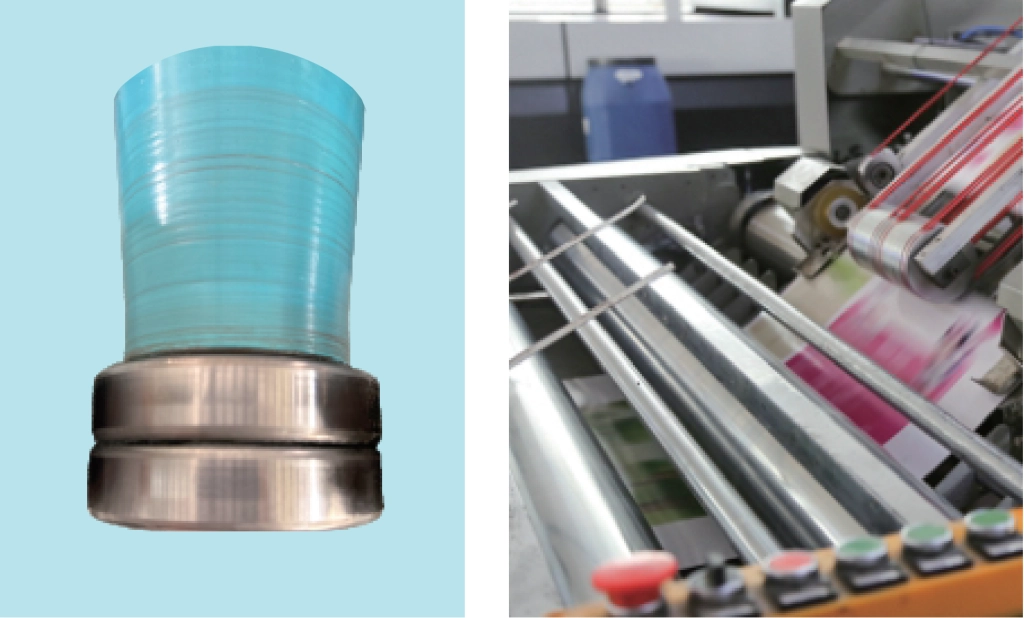

Dual-bearing Structure
- Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
- Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
- Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.
See Our Machine in Action
Final Product Samples
Real Results from Real Customers
See how industry leaders are transforming their production with Fengchi
MicroPack Americas: 50-Year Packaging Leader
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!
Best regards.”
— Julio Miamau, CEO, MicroPack Americas
Production Impact
- Faster production cycles – Reduced time-to-market by 30%
- More consistent lamination quality – 99.8% quality acceptance rate
- Lower operating costs – 22% reduction in per-unit costs
- Enhanced competitive edge – Enabled new premium product lines
Why Partner with FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Hear from industry leaders who have transformed their production with our high-speed automatic flute laminators
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.”
“We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding.”
“If you need to boost your productivity, Fengchi always has a solution. Excellent value for money, superior quality, delivered on time, with technical support long after installation.”
Our Proud Partners
Major Component Brands
Our Service for Your Success
Our service team ensures maximum production reliability and efficiency.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunctionwith their machinery.
Frequently Asked Questions
What is the maximum production speed of the high-speed flute laminator?
The GW Series (mainstream models) achieves up to 16,000 sheets per hour with full servo control and one-key digital operation.
What materials can this high-speed flute laminator handle?
It handles corrugated board from A/B/C/E/F-flute to 3-ply, 5-ply, and 7-ply, with top sheet paper ranging from 120gsm to 700gsm.
How quick is the job changeover?
Changeover takes under 5 minutes thanks to the one-key digital recall system for all servo axes. No manual adjustments needed.
How long does installation take?
Installation and commissioning schedules vary by machine model, but our engineers provide complete setup and operator training support.
Do you provide overseas after-sales service?
Yes. Fengchi provides overseas installation, training, technical support, and spare parts assistance for global customers.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
Are you a manufacturer?
Yes, FENGCHI specializes in the design and manufacture of automatic flute laminators and flip flop stackers.
