Folder Gluers
Our automatic folder gluer machines deliver 2,500+ sheets/hr with ±1mm positioning accuracy. FC Series (double-piece) & HX Series (single-sheet) for corrugated box production.
- Home
- /
- Post-Press Machines
- /
- Folder Gluers
The Bottleneck You Know Too Well
Manual folding and gluing is where corrugated box plants lose money
Gluing can't match upstream speed
Your laminator runs at full speed, but boxes pile up waiting.
Changeover eats every order
Manual size adjustment wastes hours daily.
Separate gluing and stitching lines
Two machines, two operators, double floor space. The HD gluer-stitcher does both in one line.
Inconsistent glue seams hurt quality
Full-servo motion control keeps alignment consistent order after order.
Choose Your Folder Gluer

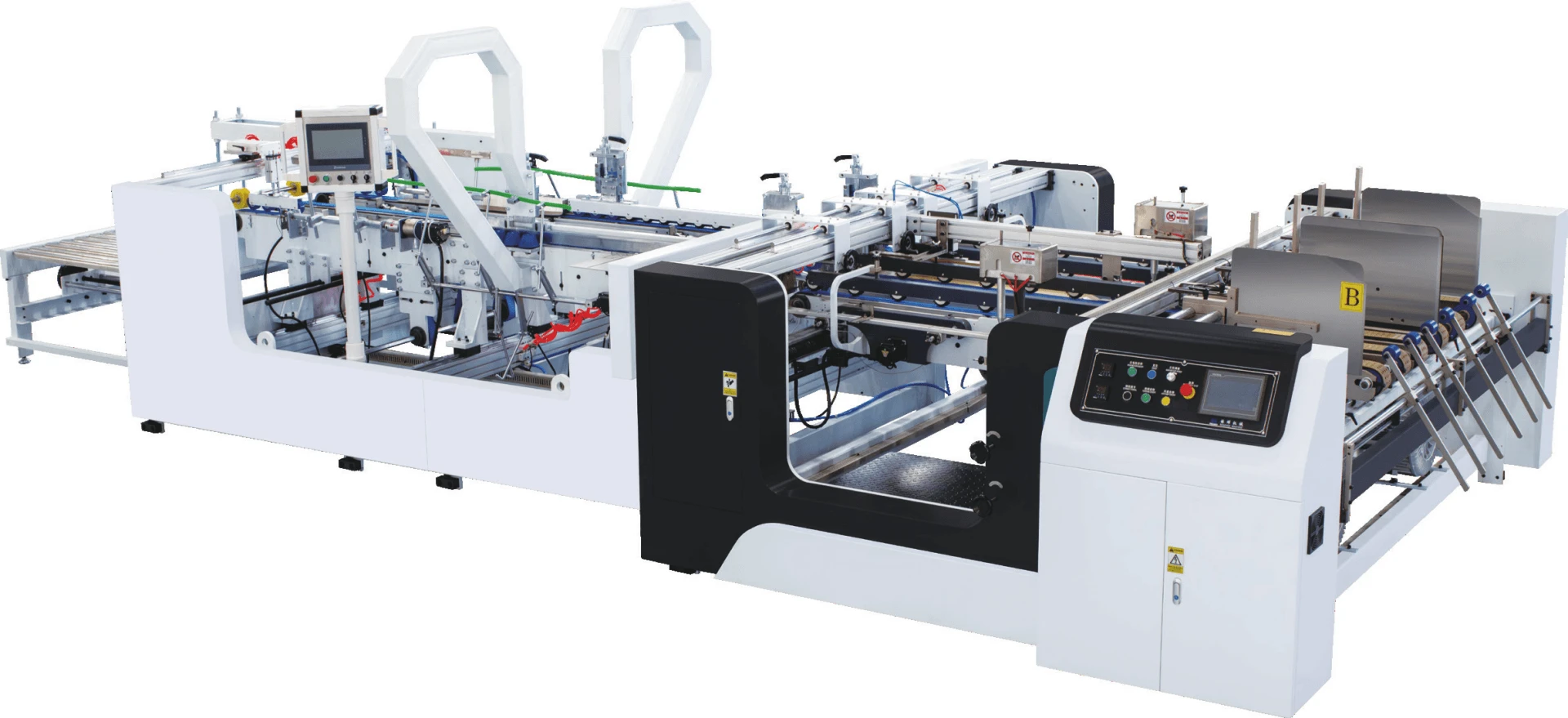

FC Series: Double-Piece Folder Gluer
Ideal for：Large corrugated shipping boxes, industrial packaging, heavy-duty transport cartons

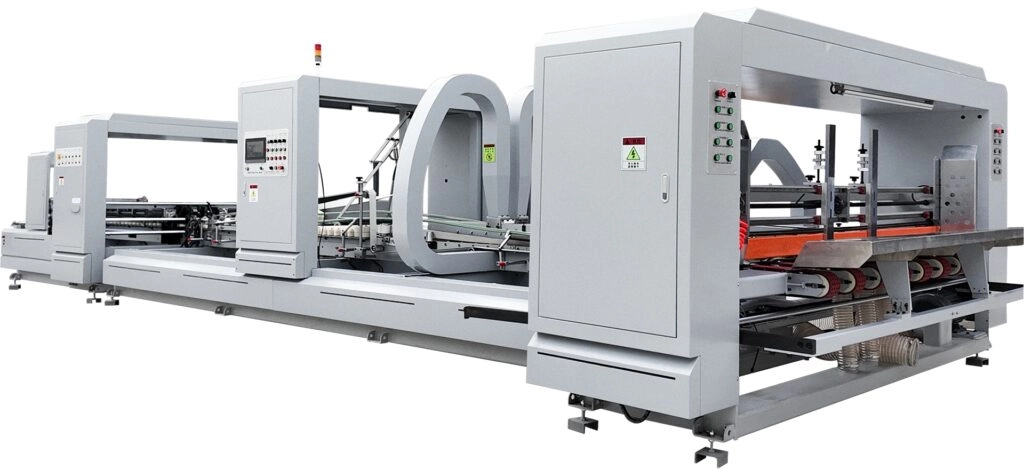

HX Series: Single-Sheet Folder Gluer
Ideal for：E-commerce mailers, food packaging boxes, retail display cartons, pharmaceutical boxes
FC Series vs. HX Series: Which One Fits Your Boxes?
| Parameter | FC Series — Double-Piece | HX Series — Single-Sheet |
|---|---|---|
| Box Type | FCDouble-piece (AB-type) boxes | HXSingle-sheet boxes |
| Models | FC-2300Z / FC-2600Z / FC-3000Z | HX-2800 / HX-3200 |
| Max. Sheet Size (L×W) | Up to 1500 × 1150 mm | Up to 3200 × 1200 mm |
| Min. Sheet Size (L×W) | 450 × 320 mm | 680 × 300 mm |
| Speed | Up to 2,500 sheets/hr (AB-type boxes) | Up to 100 m/min |
| Accuracy | ±1.0 mm registration | ±1.0 mm scissor opening; ±1.5 mm large/small opening |
| Board Range | E flute to 10 mm, multi-ply (A, B, E, F flutes) | A / B / C / AB / AC / BC / BE flute, 3-ply & 5-ply |
| Power | 16 kW | ≤7 kW (HX-2800) / ≤11 kW (HX-3200) |
| Weight | 4.5 – 6 T | 7 T / 9 T |
| Machine Size (L×W×H) | 6300 × 3300–4000 × 1800 mm | 12500–13500 × 4100–4500 × 2300 mm |
| Job Changeover | 5-second servo positioning with digital input | 3–5 min with order memory function |
| Best For | Large shipping boxes, industrial packaging, heavy-duty transport cartons | E-commerce mailers, food packaging, retail display cartons, pharmaceutical boxes |
Key Features
High Capacity
The maximum speed for single-sheet folding and gluing is up to 100 meters per minute.
Advanced Engineering
Full-servo motion control for precise alignment and consistent quality.
Smart Interaction
Digital display provides real-time self-diagnostics and automatic fault locking, ensuring efficient and safe operation for both man and machine.
Fast Setup
5-second servo positioning via digital input with automatic size adjustment, significantly boosting changeover efficiency.
Durability
Industrial-grade construction for 24/7 operation in demanding environments.
Technical Support
Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Applications
From fruit boxes to industrial transport cartons
Why Partner with FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Innovative Solutions
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
See what our customers say about our automatic folder gluers.
“We added the HX Series to handle both folding gluing and stitching in one line, and it immediately made production simpler. The one-key conversion between modes is practical, and the 3–5 minute job changeover has helped us switch orders much faster than before. It is a strong fit for our high-volume corrugated box work.”
“This machine has been very reliable for our factory. The full computer control is easy for the team to learn, and the stability has improved our output consistency. Being able to process large corrugated sheets while keeping changeovers short has saved us both time and labor.”
“We were looking for a flexible folder gluer stitcher, and the FC Series delivered. The ability to switch between single stitching, double stitching, and gluing without complicated setup has been a big advantage. It is exactly the kind of machine that helps a packaging plant stay efficient and responsive to different customer orders.”
Our Proud Partners
Global Service and Support
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi has a team of professional technicians dedicated to equipment installation and commissioning.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunction with their machinery.
Folder Gluer FAQS
What is a folder gluer machine?
A folder gluer machine folds and glues flat corrugated board blanks into finished boxes at high speed. It is the final converting step in corrugated box production, replacing manual folding for dramatically higher throughput, accuracy, and consistency. The machine feeds pre-cut blanks, applies adhesive (cold glue or hot melt), folds the flaps along scored lines, and delivers stacked finished boxes.
What is the difference between FC Series and HX Series?
FC Series is a double-piece folder gluer built for large corrugated shipping boxes and industrial packaging. HX Series is a single-sheet gluer for e-commerce mailers, food, retail display and pharmaceutical boxes — with folding and stitching in one line. Compare both in the complete folder gluer guide, or jump to the FC Series and HX Series pages.
How fast does automatic folder gluer run?
Single-sheet folding and gluing runs at up to 100 meters per minute, delivering 2,500+ sheets/hr with ±1mm positioning accuracy.
Can one machine do both gluing and stitching?
Yes — the HD series gluer-stitcher combines folding, gluing and stitching with one-key conversion between modes and 3–5 minute job changeovers. See the HD-2800 breakdown for the full configuration.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
Do you offer customization?
Yes, we can modify the folder gluer to match your specific box sizes, paper types, and production line layout. Our engineers will work with you to design the perfect solution.
