The Bottleneck You Know Too Well
When litho labels meet thin paper or gray board, alignment errors turn straight into waste. Sound familiar?
Misalignment ruins premium stock
Printed face stock is your most expensive material.
Glue costs quietly add up
Precision stainless-steel glue roller controls adhesive at just 18 g/m².
Labor-heavy stacking and feeding
Automatic paper collecting cuts labor costs by 30–50%.
Size changeover stalls the line
Servo positioning switches sheet sizes and jobs in minutes.
Choose Your Model
Tell us your sheet size and materials — an engineer replies within one business day.
GK-1207 Cardboard Laminator
Product Features
- High Precision
Digital control system with positional accuracy up to ±0.5 mm. - High Speed
Up to 9,000 sheets/hour to meet high-volume production needs. - Wide Compatibility
Front-suction feeder supports face paper down to 100 g/m² and backing paper down to 200 g/m². - Glue-saving Design
High-precision stainless-steel core-wrapped glue roller accurately controls adhesive application at 18 g/m², significantly reducing glue consumption while ensuring bonding quality.

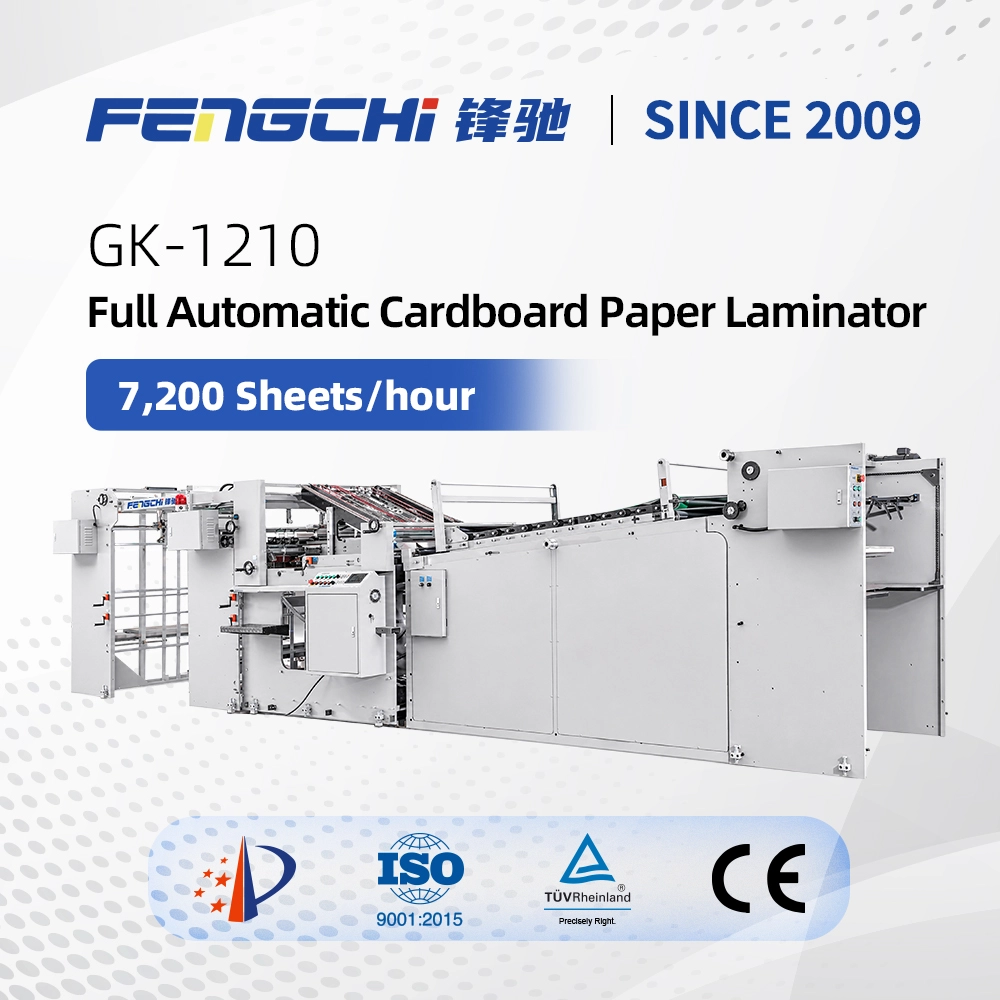

GK-1210 Cardboard Laminator
Product Features
- High Precision
Digital control system with positional accuracy up to ±0.5 mm. - High Speed
Up to 7,200 sheets/hour to meet high-volume production needs. - Wide Compatibility
Front-suction feeder supports face paper down to 100 g/m² and backing paper down to 200 g/m². - Glue-saving Design
High-precision stainless-steel core-wrapped glue roller accurately controls adhesive application at 18 g/m², significantly reducing glue consumption while ensuring bonding quality.
Key Features
Engineered for high output, precision — and low operator workload
High-Speed Operation
Up to 9,000 sheets per hour with the GK-1207 model, ensuring maximum production efficiency for high-volume operations.
High Accuracy
Digital servo control system delivers ±0.5mm laminating accuracy, ensuring perfect alignment every time.
Quick Changeovers
Switch between different sheet sizes and jobs in minutes
Glue-Saving Design
Precision stainless-steel glue roller controls adhesive at just 18 g/m², significantly reducing material costs.
Wide Material Range
Compatible with thin paper, coated paper, gray board, thick paperboard, and more — top paper 100–700gsm, bottom 200–1300gsm.
Front-Suction Feeder
Reliable feeding system handles face paper from 100 g/m² and backing from 200 g/m² with precision.
Technical Specifications
| Specification | GK-1207 | GK-1210 |
|---|---|---|
| Max Paper Size (W × L) | 1,200 × 720 mm |
1,200 × 1,000 mm
|
| Min Paper Size (W × L) | 450 × 350 mm | |
| Top Paper Thickness | 100-700 gsm | |
| Bottom Paper Thickness | 200-1,300 gsm | |
| Max Working Speed | 9,000 Sheets/hour |
7,200 Sheets/hour
|
| Laminating Accuracy | ±0.5 mm (Standard Sheet Paper) | |
| Applicable Glue | Starch glue, resin glue, milky glue, etc. (PH value 6-8) | |
| Machine Weight | 7,000 kg | |
| Machine Size (L × W × H) | 9,020 × 2,320 × 2,180 mm | |
| Input Voltage | 380 VAC/3P | |
| Power | 13 kw | |
| Applicable Paper | Thin paper, cardboard paper, coated paper, gray board, thick paperboard, and more. | |
Still unsure which model fits? Send your sheet size & materials — an engineer replies within 1 business day →
Machine Highlights

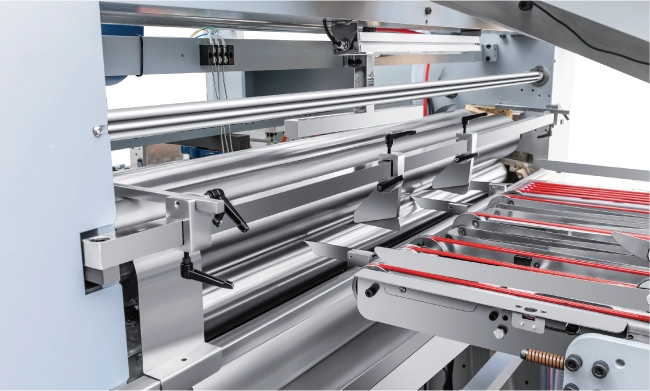

Laminating Part
- The paper lamination alignment adopts differential speed tracking; the top and bottom papers are simultaneously conveyed to the alignment guide, ensuring accurate lamination.

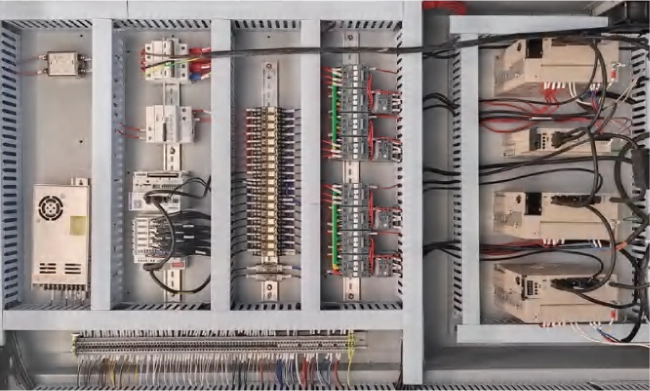

Electric System
- Uses well-known components from both domestic and international brands, designed to meet CE standards, and supports remote control with equipment upgrades.

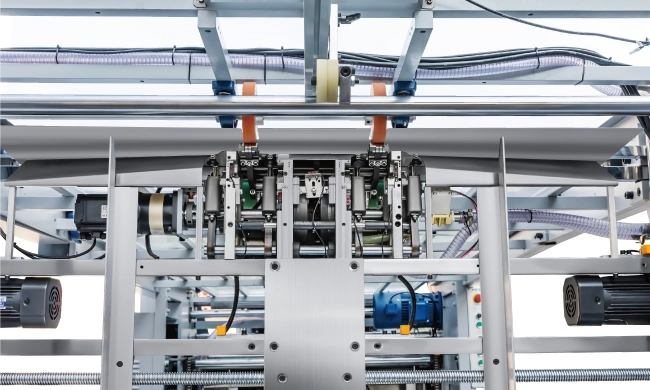

Feeding System
- Uses a 360-degree rotating high-speed front suction servo feeder equipped with a 4.0 kW vacuum pump to ensure faster, more stable paper feeding and smoothly handle both thick and thin papers.

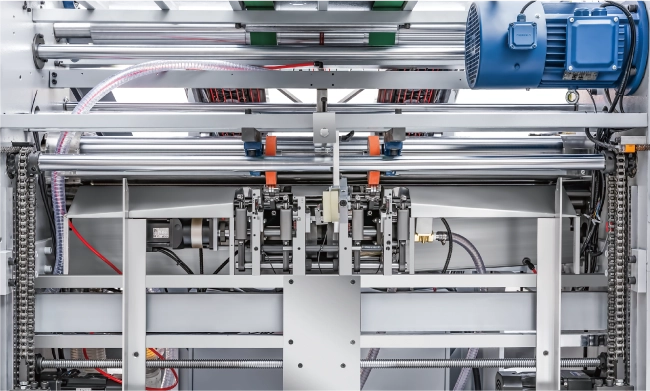

Servo-controlled Stacking System
- Uses a servo control system that allows each lift or drop speed to be freely adjusted, ensuring stable, smooth, and seamless conversion.

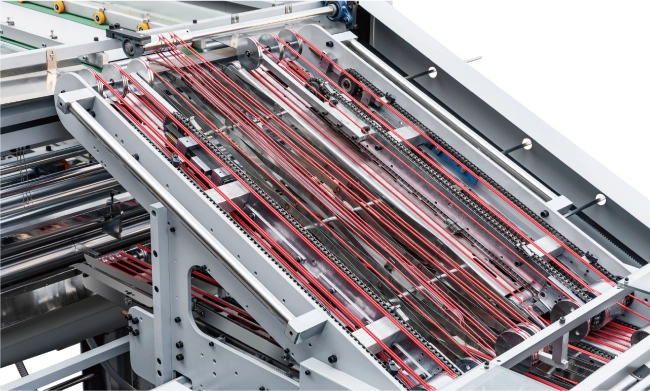

Aligning System
- A full-servo tracking system ensures stability and achieves ±0.2 mm high-precision alignment.

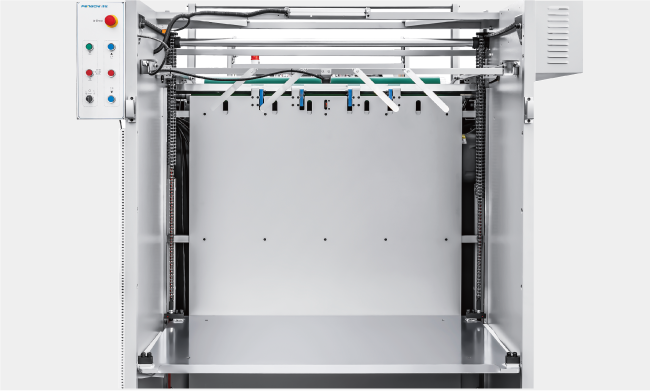

Paper Collecting System
- Laminated paper is automatically stacked and transported via forklift, thereby reducing labor costs by 30% to 50%.
See It in Action
Applications
The GK Series laminator is trusted by cardboard packaging manufacturers across diverse industries worldwide.
Why Partner with FENGCHI
Quality Assured
Built by skilled technicians under an ISO 9001 quality system. CE-certified products for international compliance.
Vast Experience
Stand-alone machines to fully integrated turnkey lines. Customization is our strength.
50 Patents
Independent R&D keeps pushing the boundaries of speed and performance.
Global Support
11 service centers and ~50 sales agents worldwide — direct technical support and a parts department.
What Our Customers Say
See what our customers say about the GK Series automatic cardboard laminator.
“The machine runs very stably during long production shifts. Production efficiency improved significantly after installation.”
“We were looking for accurate laminating quality and lower labor costs. This machine achieved both.”
“The installation and training support were professional. The machine is easy to operate and highly efficient.”
Trusted by Industry Leaders Worldwide
Global Service and Support
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi has a team of professional technicians dedicated to equipment installation and commissioning.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunction with their machinery.
Cardboard Laminator FAQS
If your question isn’t here, send it with your inquiry — we reply with photos and videos so every detail is clear.
What is the difference between the GK-1207 and GK-1210?
Both deliver ±0.5mm laminating accuracy and the same 18 g/m² glue-saving design. The GK-1207 is the speed model at up to 9,000 sheets/hour with 1,200×720 mm max sheet; the GK-1210 handles larger 1,200×1,000 mm sheets at up to 7,200 sheets/hour. Still unsure? Send your sheet size and materials — an engineer replies within one business day.
What materials can it handle?
Top paper from 100 to 700 gsm and bottom paper from 200 to 1,300 gsm — thin paper, coated paper, gray board and thick paperboard. Applicable glues include starch, resin and milky glue (PH 6–8).
How fast is the machine, really?
Speed ranges from 7,200 to 9,000 sheets/hour depending on model. The GK-1207 tops out at 9,000 SPH; the wider-format GK-1210 runs up to 7,200 SPH — with register accuracy held at ±0.5 mm at full speed.
How about installation and training?
One operator can finish installation in about 2 hours using the included manual and video. Prefer hands-on help? Train free at our Dongguan factory (travel at your cost), or we can send our engineer to your factory — travel cost covered by the purchaser.
How long is delivery?
Delivery is 10–30 working days after receiving the deposit or full payment, depending on the model and order quantity. We confirm exact timing in your quotation.
How about warranty?
12 months from shipping date, with spare parts supplied during the period, plus a lifetime paid-service option. Warranty excludes misuse or operator error — we state that clearly up front.
Can the machine be customized?
Yes. Configurations can be adapted to your production requirements and material specifications — tell us what you run and our engineers will confirm the build.
