Window Patchers

Full-servo window patching machines from 9,000 to 36,000 sheets per hour, holding ±0.5 mm film registration for tissue, cosmetic, bakery, toy and electronics packaging.

Home
/
Post-Press Machines
/
Window Patchers

The Bottleneck You Know Too Well

Manual window patching is costing you more than labor

Manual taping can not keep up

Hand-applied film windows max out around 1,500 sheets/hr. A single operator cannot close the gap to a 36,000 sheets/hr line.

Registration rework on premium boxes

Cosmetic and rigid boxes demand ±0.5 mm precision. Manual registration rework is the single largest hidden cost on premium cartons.

High SKU mix kills changeover time

Digital one-touch setup sets glue, film and cutting parameters without phase adjustment, turning a re-rig into a recipe recall.

Film waste eating your margin

Servo-driven registration cut one customer’s scrap rate by over 90% — the machine paid for itself in 10 months.

Choose Your Window Patcher

Tell us your box type and monthly volume. Our engineers will match the right model and configuration.

Model P Window Patcher

Ideal for tissue boxes, bakery boxes, and standard retail packaging.

Model Q Window Patcher

For luxury cosmetic boxes, toy packaging, and complex die-cuts.

Model Y Window Patcher

The ultimate versatility: Flat window + V-cut + Creasing in one machine.

Model P, Q and Y at a Glance

Parameter	Model P High-volume flat patching	Model Q V-cut & creasing	Model Y 3-in-1 all-rounder
Available models	BTM-760P BTM-950P BTM-1100P	BTM-760Q BTM-950Q BTM-1100Q	BTM-760Y BTM-950Y BTM-1100Y
Max sheet width	760 / 950 / 1100 mm	760 / 950 / 1100 mm	760 / 950 / 1100 mm
Max speed	36,000 sheets/hr	9,000 sheets/hr	36,000 sheets/hr
Sustained 24h speed	32,000 sheets/hr	8,000 sheets/hr	32,000 sheets/hr
Film placement accuracy	±1.0 mm	±0.5 mm	±1.0 mm flat / ±0.5 mm registration
V-cut & creasing	—	Integrated	Integrated
Sheet size (W × L)	up to 1100 × 760 mm min 100 × 150 mm	up to 1100 × 780 mm min 150 × 130 mm	up to 1100 × 760 mm min 100 × 150 mm
Window size (W × L)	up to 700 × 700 mm min 30 × 50 mm	up to 480 × 350 mm min 30 × 50 mm	up to 500 × 450 mm min 30 × 50 mm
Board / paper	Cardboard 200–2000 g/m² · Corrugated board 1–4 mm
Window film	PET 0.03–0.2 mm · PVC 0.03–0.25 mm
Drive system	9 servos	6 servos + 3 motors	9 servos
Machine power	21 kW	16 kW	28 kW
Machine weight	2,600–3,000 kg	3,000–3,500 kg	3,200–4,000 kg
Power supply	380 V / 50 Hz, three-phase

Need a tailored configuration? Send your box sizes and target output — a sales engineer will size the machine for your line.

Key Features

Three product series can handle all window patching tasks for folding cartons.

Up to 36,000 sheets/hour

Flat window patching output for high-volume folding carton plants.

±0.5 mm registration

Servo registration for premium window patches.

Flat + V-cut + creasing

Model Y combines three functions in one compact line.

PET/PVC film support

Handles film thickness from 0.03 to 0.25 mm.

Wide material range

Cardboard 200-2000 g/m² and corrugated board up to 4 mm.

Digital one-touch setup

Glue, film and cutting parameters set without phase adjustment.

Can This Machine Make Your Box?

Window style / finishing feature	Model P	Model Q	Model Y
General flat window (normal pasting)	✓	✓	✓
Small window, tight register	✓	✓	✓
Sandwich box window	✓	Optional	✓
Double window (two windows, one sheet)	Optional	✓	✓
2 creasing lines	—	✓	✓
3 creasing lines	—	✓	✓
Vertical V-cut	—	✓	✓
Horizontal V-cut	—	Optional	Optional
Slitting line on film (tissue boxes)	✓	Optional	✓

Running an unusual die-cut or a multi-window layout? Send a sample photo or artwork — our engineers will confirm feasibility and quote the device.

Applications

From premium cosmetics to everyday tissue packs, the same line keeps up with your product mix.

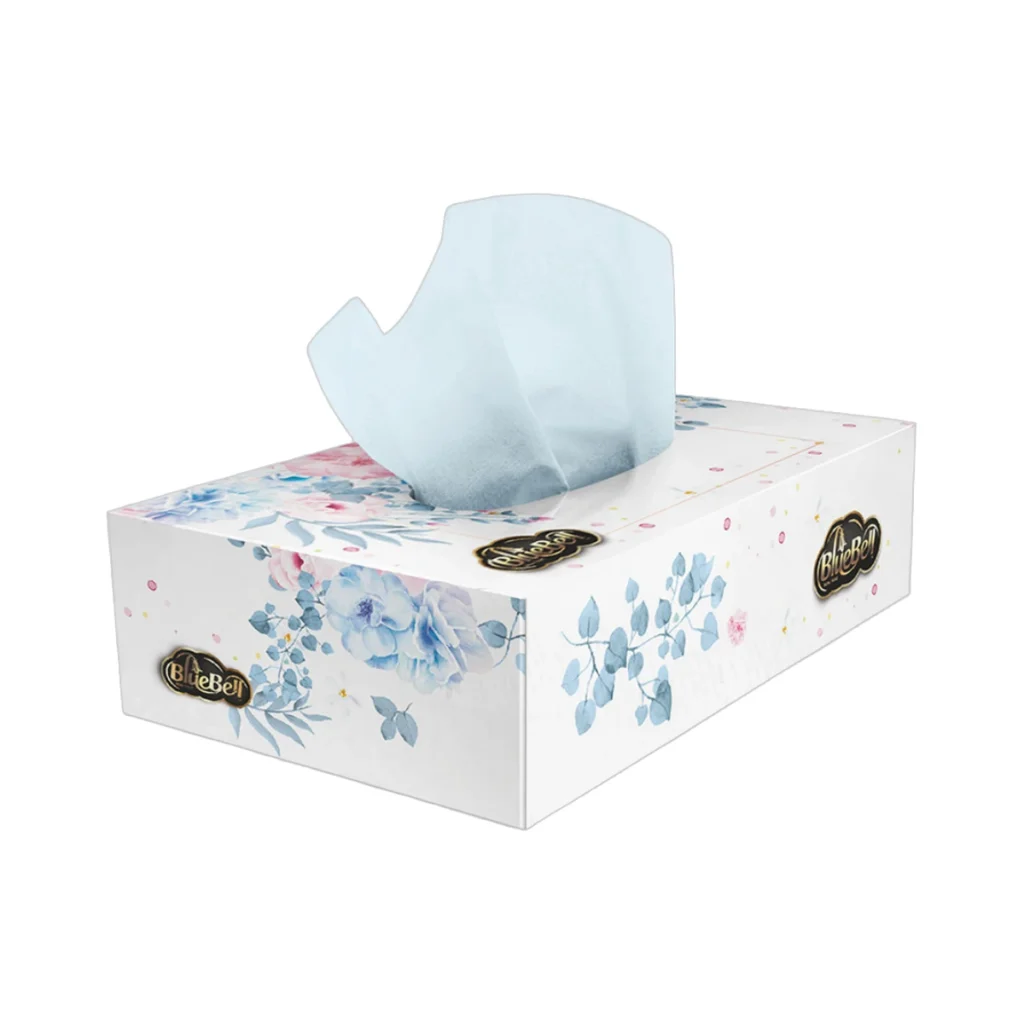

Tissue Boxes

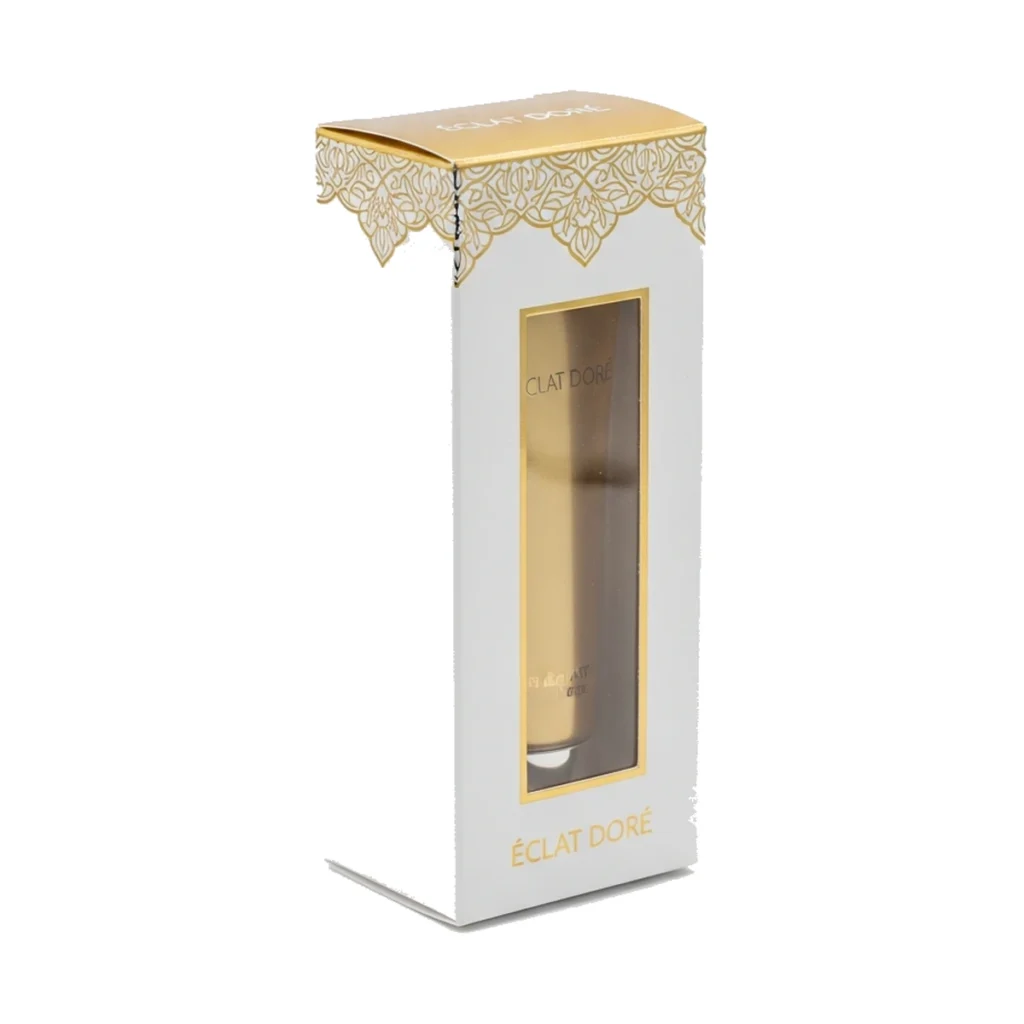

Cosmetic Packaging

Electronics Packaging

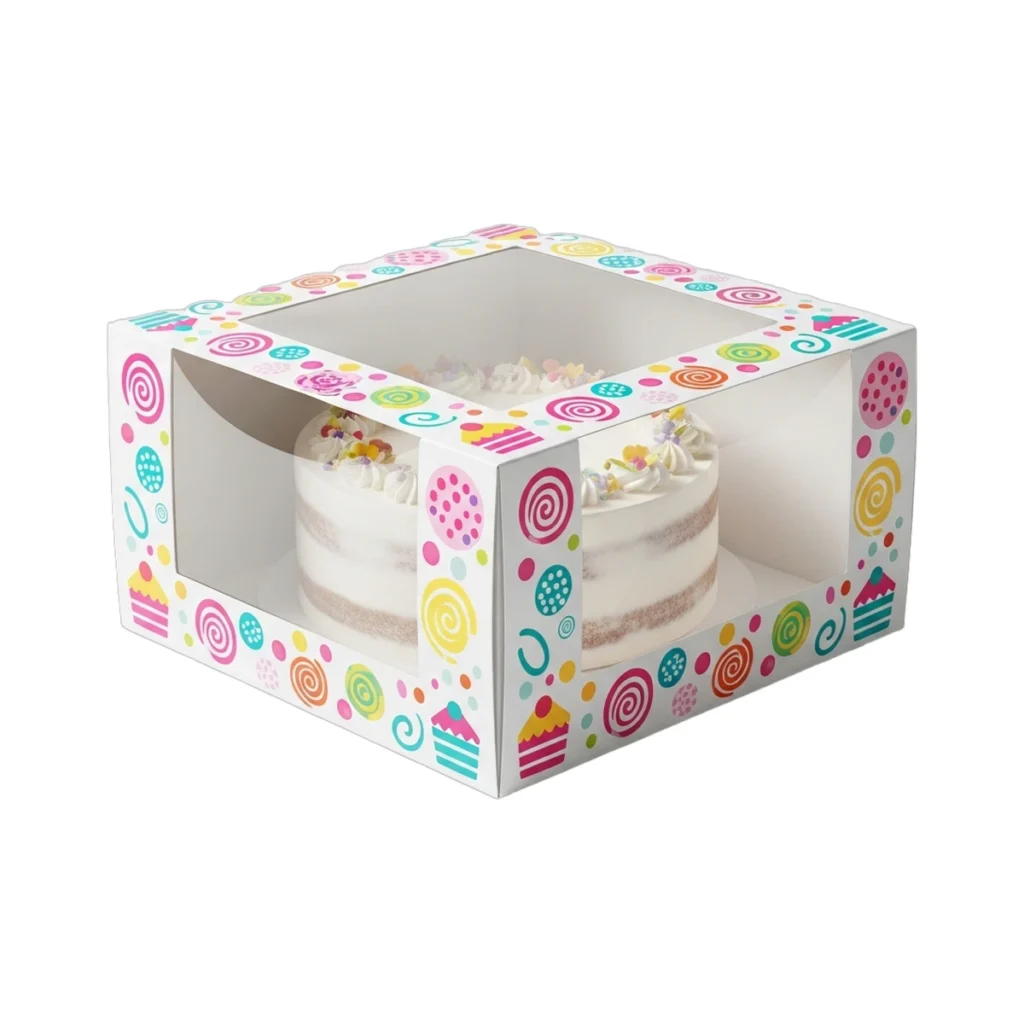

Bakery & Food Boxes

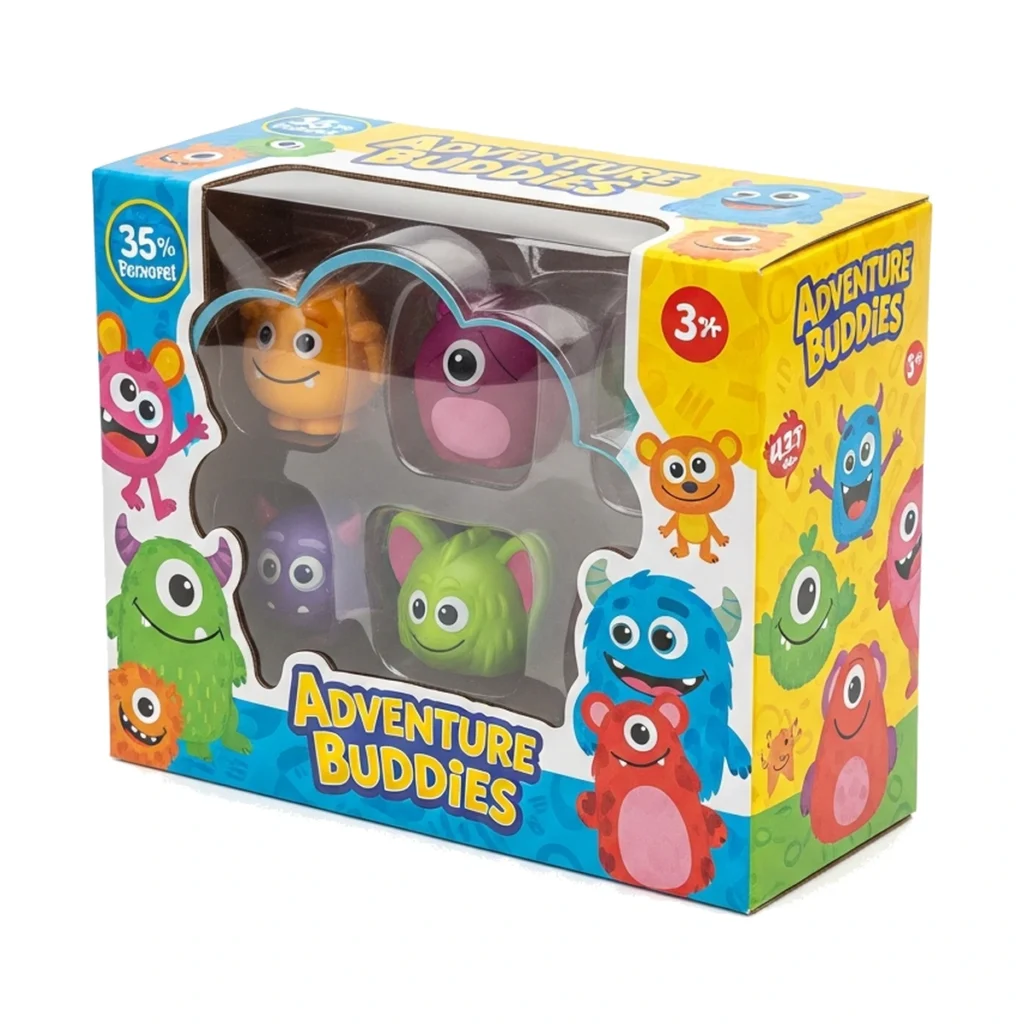

Toy Packaging

Watch the Machines Run

Exported Worldwide

Installed and commissioned with on-site engineer support worldwide.

Why Partner with FENGCHI?

15+ years of specialized experience in post-press machinery manufacturing

Quality Assured

Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.

Innovative Solutions

We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.

Global Support

11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.

What Packaging Professionals Say

Real feedback from packaging professionals worldwide

“We run a high-mix schedule for cosmetics and toy boxes. This machine handles every window type we throw at it and the integrated registration capability has significantly reduced rework.”

– Luca Moretti, Packaging Manager

“We’ve reduced our scrap rate by over 90% and our technicians can now focus on more complex tasks. The Model Q paid for itself in just 10 months.”

– Michael Torres, Production Manager

“My team loves how safe and easy it is to use. The window patching accuracy has eliminated our waste problems and we’re saving thousands annually on materials alone.”

– David Johnson, Owner

Global Service and Support

After Sales service begins with the arrival of the machinery at the customer’s factory.

To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi has a team of professional technicians dedicated to equipment installation and commissioning.

Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.

Fengchi is always available to its customers if they have a problem, concern or malfunction with their machinery.

Window Patcher FAQs

What is the difference between Model P, Q and Y window patcher?

Model P is built for volume: up to 36,000 sheets per hour of flat window patching with ±1.0 mm accuracy, and sheet widths up to 1400 mm.

Model Q adds V-cut and creasing for premium cosmetic, gift and toy cartons, holding ±0.5 mm registration at up to 9,000 sheets per hour.

Model Y combines both: flat patching, V-cut and creasing in a single pass, with ±1.0 mm flat and ±0.5 mm registration modes.

All three series share the same full-servo architecture, one-touch digital setup and 24-hour duty rating.

What film and board materials can it handle?

All three series run cardboard from 200 to 2000 g/m² and corrugated board from 1 to 4 mm. Supported window films are PET from 0.03 to 0.2 mm and PVC from 0.03 to 0.25 mm.

What is the maximum production speed?

Model P and Model Y reach a maximum of 36,000 sheets per hour and sustain 32,000 sheets per hour in 24-hour continuous operation at sheet widths up to 950 mm. At the widest formats the ceiling is 30,000 sheets per hour for 1100 mm and 27,000 sheets per hour for 1400 mm.

Model Q runs up to 9,000 sheets per hour with continuous output of 8,000 sheets per hour, because V-cut and creasing are performed in the same pass.

Can the machine handle small batch orders?

Yes. Glue position, film length and cut length are entered digitally on the HMI without wrenches or phase adjustment, so a job change is a recipe recall rather than a mechanical re-rig.

This is what makes short-run, high-SKU schedules practical, and it is why Model Q and Model Y are usually chosen by plants running cosmetics, toys and seasonal packaging.

What is the warranty and delivery lead time?

Machines include a 12-month warranty from the shipping date and lifetime paid-service support. Delivery is usually 10-30 working days after deposit or full payment.

Do you provide installation and training?

Yes. Our engineers provide on-site installation, commissioning, and operator training. We also offer remote video training and 24/7 technical support via WhatsApp and email.

Can machine specifications be customized?

Yes. FENGCHI offers OEM/ODM services and can customize machine width, speed and features for your production requirements and material needs.
