Model Y Window Patcher
The Model Y window patcher is specifically designed for high-mix folding carton plants. It handles flat window patching, V-cut, and creasing functions — all in a single compact unit.
The Model Y window patcher is specifically designed for high-mix folding carton plants. It handles flat window patching, V-cut, and creasing functions — all in a single compact unit.
- Home
- /
- Post-Press Machines
- /
- Window Patchers
- /
- Model Y
Who It is Built for
Model Y is the right main scenario when you run a daily mix of tissue, bakery, electronics, toy, and cosmetic boxes, need 24-hour output, and cannot afford a separate machine for every window style.
High-mix folding carton plants
You switch between flat patch, V-cut, and creasing jobs during a single shift, and every switch is a stop.
24-hour production schedules
You need sustained output around the clock, not a machine that only hits its rated speed for the first hour.
Premium and standard boxes together
You sell cosmetic and toy packaging that demands registration, plus everyday retail boxes that demand volume.
The Problem
Two machines. Four changeovers. One bottleneck.
Changeover eats your capacity
Every time a V-cut and creasing order arrives, the line stops while operators re-rig a flat-only machine. On a high-mix schedule, those stops add up to lost hours every week.
Precision slips at speed
Industry-average registration of ±1.5–2.0 mm may pass a standard tissue box, then fail on a cosmetic or toy carton. Rework and scrap are the hidden tax.
Labor becomes the ceiling
Manual feeding, gluing, film application, and collection tie skilled operators to repetitive work. Output is capped by headcount, not by the equipment.
Floor space has no slack
Adding a second single-purpose machine looks like the only answer, but it doubles footprint, maintenance, and spare-part complexity on the same floor.
The Solution
Model Y: one servo-driven line that does the work of three.
Flat + V-cut + creasing
Flat window patching, V-cut cornering, and creasing — all in one machine. Switch between job types instantly via the touchscreen HMI without buying separate equipment.
High-speed efficiency
Produce up to 36,000 sheets/hour continuously, with 24-hour non-stop runs.
Secondary positioning
A full-servo system removes push-claw and glue-drive errors, holding ±0.5 mm registration even on complex die-cuts.
Wide material range
PET 0.03–0.2 mm, PVC 0.03–0.25 mm, cardboard 200–2000 g/m², and corrugated board up to 4 mm.
Choose Your Model
Same full-servo performance — different sheet widths to match your carton sizes
BTM-760Y Window Patcher
- High-Speed Efficiency:
Max speed 36,000 sheets/hr (200m/min); continuous 32,000 sheets/hr (185m/min), 24h non-stop. - Intelligent Sheet Collection:
Auto count & stack collection for non‑box products. - Precision Control:
Full-servo system with ±1.0mm flat-patching, ±0.5mm registration accuracy.
High-speed stable. - Long-Term Durability:
35% load‑reserve servos; > 15 year life span. - Intelligent Setup:
Digital settings + one‑touch for glue, film, cut. - Synergistic Drive:
9 servos for smart operation. - Precision Alignment：Eliminates push claw and glue drive errors. Ensures accurate positioning.
- Gentle Film Feeding：Independent servo control. Smooth feeding, no stretching.
BTM-950Y Window Patcher
- High-Speed Efficiency:
Max speed 36,000 sheets/hr (200m/min); continuous 32,000 sheets/hr (185m/min), 24h non-stop. - Intelligent Sheet Collection:
Auto count & stack collection for non‑box products. - Precision Control:
Full-servo system with ±1.0mm flat-patching, ±0.5mm registration accuracy.
High-speed stable. - Long-Term Durability:
35% load‑reserve servos; > 15 year life span. - Intelligent Setup:
Digital settings + one‑touch for glue, film, cut. - Synergistic Drive:
9 servos for smart operation. - Precision Alignment：Eliminates push claw and glue drive errors. Ensures accurate positioning.
- Gentle Film Feeding：Independent servo control. Smooth feeding, no stretching.
BTM-1100Y Window Patcher
- High-Speed Efficiency:
Max speed 30,000 sheets/hr;, 24h non-stop. - Intelligent Sheet Collection:
Auto count & stack collection for non‑box products. - Precision Control:
Full-servo system with ±1.0mm flat-patching, ±0.5mm registration accuracy.
High-speed stable. - Long-Term Durability:
35% load‑reserve servos; > 15 year life span. - Intelligent Setup:
Digital settings + one‑touch for glue, film, cut. - Synergistic Drive:
9 servos for smart operation. - Precision Alignment：Eliminates push claw and glue drive errors. Ensures accurate positioning.
- Gentle Film Feeding：Independent servo control. Smooth feeding, no stretching.
Model Y Technical Specifications
Three configurations available to match your production requirements
| Model | BTM-760Y | BTM-950Y | BTM-1100Y | |
|---|---|---|---|---|
| Flat Patching section | Paper spec 1st (W x L) | 760 x 760 - 100 x 150 mm | 950 × 760 - 100×150 mm | 1100 × 760 - 150×180 mm |
| Machine speed 1st | Up to 12,000 sheets/hr | Up to 12,000 sheets/hr | Up to 10,000 sheets/hr | |
| Paper spec 2nd (W x L) | 760 x 420 - 100 x 150 mm | 950 × 420 - 100 × 150 mm | 1100 x 420 - 150 x 180 mm | |
| Machine speed 2nd | Up to 24,000 sheets/hr | Up to 24,000 sheets/hr | Up to 20,000 sheets/hr | |
| Paper spec 3rd (W x L) | 760 x 260 - 100 x 150 mm | 950 × 260 - 100 × 150 mm | 1100 × 260 - 150 × 180 mm | |
| Machine speed 3rd | Up to 36,000 sheets/hr | Up to 36,000 sheets/hr | Up to 30,000 sheets/hr | |
| Window dimension (W × L) | 500 × 450 - 30 × 50 mm | 500 × 450 - 30 × 50 mm | 500 × 450 - 50 × 50 mm | |
| Positioning accuracy | ±1.0 mm | ±1.0 mm | ±1.0 mm | |
| Registration section | Paper spec 1st (W x L) | 760 x 760 - 100 x 150 mm | 950 × 450 - 100 × 150 mm | 1100 × 760 - 150 × 180 mm |
| Machine speed 1st | Up to 15,000 sheets/hr | Up to 15,000 sheets/hr | Up to 15,000 sheets/hr | |
| Paper spec 2nd (W x L) | 760 × 420 - 100 × 150 mm | 950 × 420 - 100 × 150 mm | 1100 × 420 - 150 × 180 mm | |
| Machine speed 2nd | Up to 15,000 sheets/hr | Up to 15,000 sheets/hr | Up to 15,000 sheets/hr | |
| Window dimension (W × L) | 500 × 400 - 30 × 50 mm | 500 × 400 - 30 × 50 mm | 500 × 400 - 50 × 50 mm | |
| Positioning accuracy | ±0.5 mm | ±0.5 mm | ±0.5 mm | |
| Paper weight/sheet thickness | Cardboard 200-2000 g/m²; corrugated board 1-4 mm | |||
| Film thickness | PET 0.03-0.2 mm; PVC 0.03-0.25 mm | |||
| Power voltage | 380V / 50Hz | |||
| Machine power | 28 kW | |||
| Machine weight | 3,200 kg | 3,500 kg | 4,200 kg | |
| Overall dimensions (L x W x H) | 5,500 x 1,600 x 2,080 mm | 5,500 x 1,850 x 2,080 mm | 5,500 x 2,000 x 2,080 mm | |
* Need a tailored spec? Tell us your box sizes and target output and a sales engineer will configure the machine for your line.
Machine Highlights
Paper Feeding System
- Features optimally stable separation blades with zero wobble when locked, ensuring superior paper separation.
- Single-plate feeding belt simplifies maintenance and replacement.
- Linear bearings enable smooth front/rear movement of the paper pressing mechanism; pneumatic vibration motors reduce noise and optimize vibration.
Paper Pressing Wheel Assembly
- Gear-driven dual-power transmission on upper/lower wheels delivers exceptional stability during paper conveyance, particularly with corrugated paper.
Pusher Claw System
- Linear guide fixation eliminates vibration (vs. linear bearings), ensuring stable paper feed.
- Patent-certified synchronous belt drive provides quiet operation, stretch resistance, oil-free performance, low noise, and sustained precision.
- Front/rear adjustable press wheels adapt to product positions; side-fixed design simplifies setup. Side guides synchronize with claws to reduce adjustment frequency and time.
Gluing System
- Independent servo drive allows parameter input via HMI without wrenches or phase adjustment.
- Hard-anodized aluminum alloy glue rollers offer lightweight and high hardness.
- Optimized program with glue sensor enables automatic activation with product presence, separation without product, and jam alarm/shutdown.
Glue Distribution System
- Entire unit slides out for cleaning.
- Cutting Shaft: 180mm diameter/40mm wall; 17 deep holes + hundreds of air holes with end grooves ensure smooth cutting.

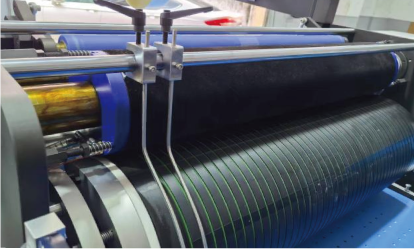

Film Lamination & Cutting System
- Lamination Unit: Monolithic roller ensures stability; aluminum alloy wear-resistant air grooves; spring + screw mechanism enables zero-pressure contact and tool-free maintenance.
- Cutting Shaft: 180mm diameter/40mm wall; 17 deep holes + hundreds of air holes with end grooves ensure smooth cutting.
Bottom Blade & Film Feeding
- Bottom Blade: Reinforced casting; V-shaped structure (spiral blade-inspired); 5mm sharp steel blade; detachable stainless steel bridge + felt prevent film scratching.
- Film Feeding: Dual rollers + long-arm pneumatic clamping for precise length control.
- Glue sensor for automatic activation
- Jam detection with alarm/shutdownfunction

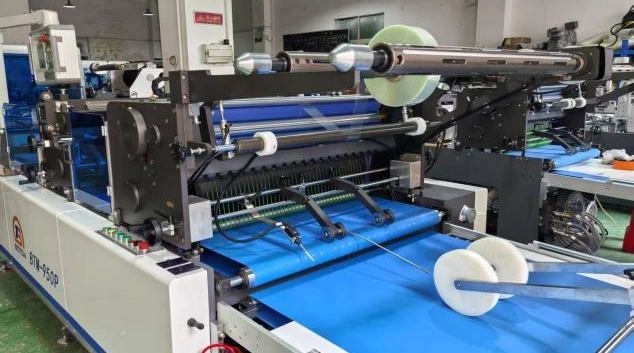

Film Unwinding & Collection System
- Unwinding Unit: Dual frames support dualwindow patching; single-side fixation +operable-side access; magnetic particlebrake; axial film sensor requires no recalibration.
- Collection Unit: Independent servo systemwith integrated counting function,Configurable sheet quantity and stacking intervals.

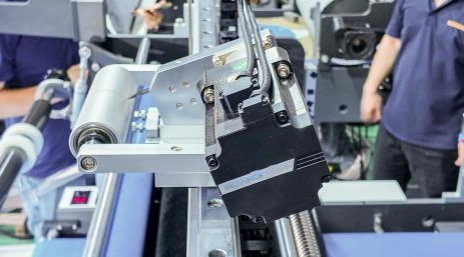

Innovative Tissue Box Slotting Unit
- Independent servo drive enables digital position adjustment.
- Manual screw fine-tuning for lateral positioning.
- Surgical blades allow easy replacement.

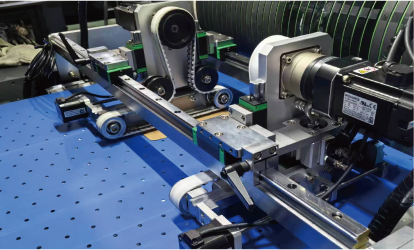

Secondary Positioning System
- Utilizes secondary positioning technology to effectively eliminate errors from push claws entering the belt and glue spreading drive, enhancing overall positioning accuracy.

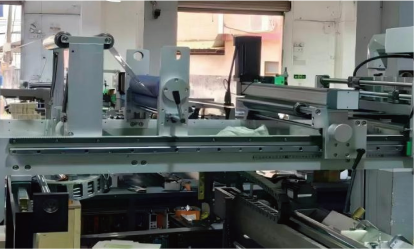

Register Film Production System
- A modular register film production system integrates servo intelligent film feeding, long-distance film swinging, servo braking, and two-verti- cal-one-horizontal corner cutting and creasing functions, achieving high-precision intelligent film production.
Electrical System
- INOVANCE components (China’s top-tier brand) with bus-based control ensure efficient, stable operation and simplified maintenance.
See It in Action
Perfect for Every Window Packaging Type
From tissue boxes to luxury cosmetics — the Model Y handles them all with consistent quality
Cosmetic Packaging
Electronics Packaging
Cake & Bakery Boxes
Tissue Boxes
Toy Packaging
Exported Worldwide
Why Partner with FENGCHI
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Innovative Solutions
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Real feedback from cardboard packaging professionals
“We added the Model Y to handle growing window-patching orders, and the throughput difference was immediate. It is a serious machine for factories that need both speed and consistency.”
“What impressed me most was the precision. The Model Y holds tight alignment on window patching, and the servo-driven feeding feels smooth and controlled even on demanding runs.”
“The machine feels robust, the setup is straightforward, and maintenance has been easier than expected. It is exactly the kind of equipment that gives you confidence when you are pushing for higher output.”
Our Proud Partners
Our Service for Your Success
Fengchi Printing Machinery knows that successful installation, training, and support are critical to your operation and achieving the profitability gains you target. This drives our commitment to your success.
Our goal is to provide you with the tools and technical knowledge that your in-house maintenance needs, to be able to fix their own machines.
Our technical support team and parts department work with customers to resolve issues over the phone, but when special care is needed, our team is prepared to make emergency field service visits, to get your plant up and running quickly. Parts, service, and support are handled directly through the Fengchi technical support group.
Frequently Asked Questions
What can the Model Y window patcher actually do?
Model Y applies transparent PET or PVC film over pre-cut windows in folding cartons, and adds flat, V-cut and creasing in the same line. It is built for cardboard packaging from 200–2000 g/m² and corrugated board up to 4 mm.
How fast is it in real production?
BTM-760Y and BTM-950Y reach 36,000 sheets/hr maximum and sustain 32,000 sheets/hr in 24-hour operation. BTM-1100Y reaches 30,000 sheets/hr at maximum paper width.
Is the precision enough for premium boxes?
The registration section holds ±0.5 mm and flat patching holds ±1.0 mm. Secondary positioning eliminates push-claw and glue-drive errors on complex die-cuts.
Which BTM-Y width should I choose?
Choose by maximum sheet width: 760 mm, 950 mm, or 1,100 mm. If your cartons fall in a middle range or you plan new formats, send the sheet sizes and target output and the engineering team will recommend the configuration.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Can the machine be customized?
Yes. Machine configurations can be adjusted based on production requirements.
