FC Series Folder Gluer
High-speed automatic folder gluer is specially designed for gluing and folding double-piece corrugated boxes.
High-speed automatic folder gluer is specially designed for gluing and folding double-piece corrugated boxes.
- Home
- /
- Post-Press Machines
- /
- Folder Gluers
- /
- FC Series
How the FC Series Delivers Unmatched Performance
What makes the FC Series automatic folder gluer the preferred choice for thousands of customers and agents globally? It’s the fusion of robust engineering with intelligent automation designed for real-world production floors.
High Throughput
Achieve high-volume production with consistent speeds up to 2,500 sheets/hour for AB-type boxes.
Engineered Precision
Motion-control servo positioning ensures registration accuracy within ±1.0 mm, box after box.
Minimize Downtime
Works on A, B, E, F flutes and multi-ply constructions. Quick changeover minimizes setup time when switching sheet sizes or types.
Optimize Labor
Professional delivery line design enables efficient one-person operation, reducing labor costs.
See It in Action
The FC Series automatic folder gluer isn’t just machinery; it’s a strategic investment in your plant’s efficiency and profitability.
Scope of Application
This high-speed automatic folder gluer machine is specially designed for gluing and folding double-piece (AB-type) boxes.
Choose Your Model
FC-2300Z Folder Gluer
Main Features:
- Fast Setup: 5-second servo positioning via digital input with automatic size adjustment, significantly boosting changeover efficiency.
- Millimeter Precision: Motion-controlled servo positioning ensures 0-1mm accuracy for flap-joining and irregular boxes, delivering precise and aesthetic results.
- Stable Conveying: Independent A/B drives and frequency-controlled suction ensure smooth feeding, eliminating paper scuffing and feeding errors.
- Dual Coating: Aluminum hot-melt and stainless steel cold-glue units with pressure gluing ensure uniform, durable, and stronger bonding.
- Smart Interaction: Digital display provides real-time self-diagnostics and automatic fault locking, ensuring efficient and safe operation for both man and machine.

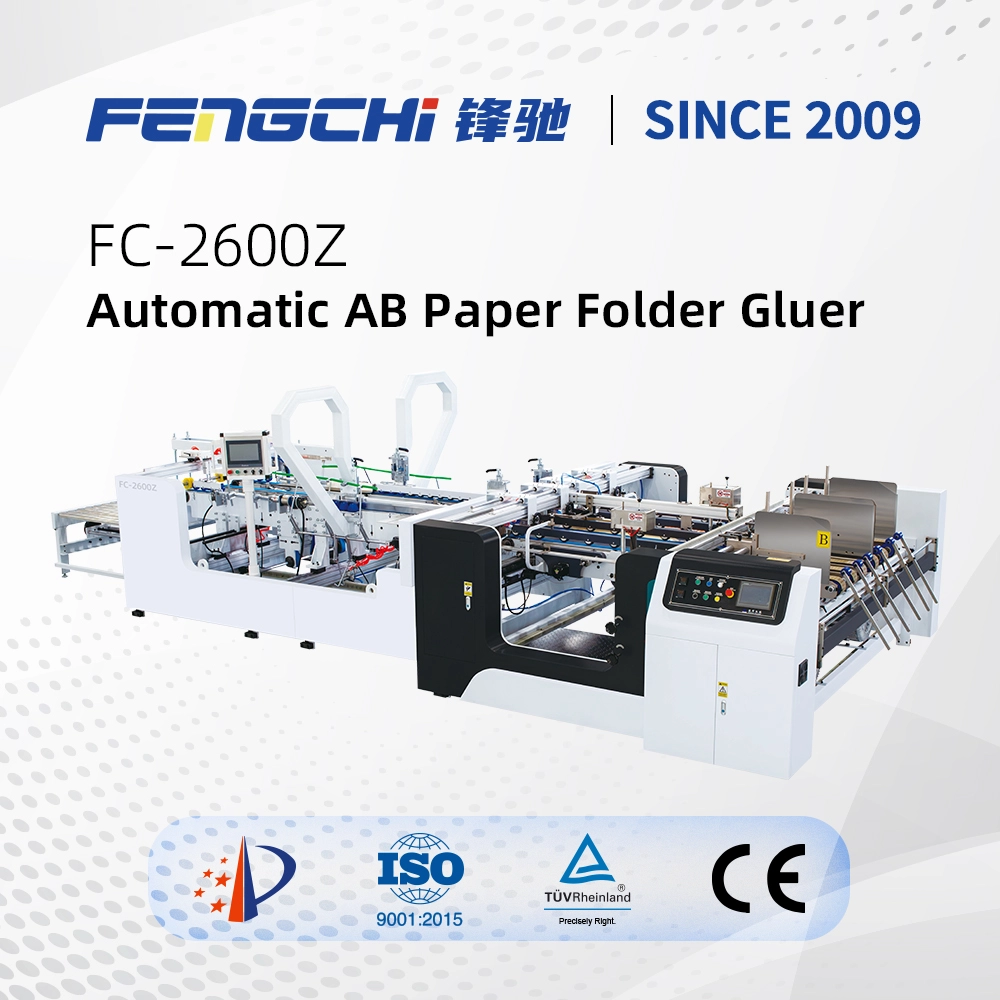

FC-2600Z Folder Gluer
Main Features:
- Fast Setup: 5-second servo positioning via digital input with automatic size adjustment, significantly boosting changeover efficiency.
- Millimeter Precision: Motion-controlled servo positioning ensures 0-1mm accuracy for flap-joining and irregular boxes, delivering precise and aesthetic results.
- Stable Conveying: Independent A/B drives and frequency-controlled suction ensure smooth feeding, eliminating paper scuffing and feeding errors.
- Dual Coating: Aluminum hot-melt and stainless steel cold-glue units with pressure gluing ensure uniform, durable, and stronger bonding.
- Smart Interaction: Digital display provides real-time self-diagnostics and automatic fault locking, ensuring efficient and safe operation for both man and machine.
FC-3000Z Folder Gluer
Main Features:
- Fast Setup: 5-second servo positioning via digital input with automatic size adjustment, significantly boosting changeover efficiency.
- Millimeter Precision: Motion-controlled servo positioning ensures 0-1mm accuracy for flap-joining and irregular boxes, delivering precise and aesthetic results.
- Stable Conveying: Independent A/B drives and frequency-controlled suction ensure smooth feeding, eliminating paper scuffing and feeding errors.
- Dual Coating: Aluminum hot-melt and stainless steel cold-glue units with pressure gluing ensure uniform, durable, and stronger bonding.
- Smart Interaction: Digital display provides real-time self-diagnostics and automatic fault locking, ensuring efficient and safe operation for both man and machine.
Technical Specifications
| Parameter / Model | FC-2300Z | FC-2600Z | FC-3000Z |
|---|---|---|---|
| Maximum Sheet Size (Single) | 1,150 x 1,150 mm | 1,300 x 1,150 mm | 1,500 x 1,200 mm |
| Minimum Sheet Size (Single) | 550 x 350 mm | 550 x 350 mm | 550 x 350 mm |
| Max Height Of Stack | 400 mm | 400 mm | 400 mm |
| Main Motor Power | 1.5 kW | 1.5 kW | 1.5 kW |
| Total Power | 16 kW | 16 kW | 16 kW |
| Total Weight | 4.5 T | 5.0 T | 6.0 T |
| Machine Size (Receiving Parts Exclusive) | 6,300 x 3,300 x 1,800 mm | 6,300 x 3,600 x 1,800 mm | 6,300 x 4,000 x 1,800 mm |
Need a tailored specification? Our sales engineers can configure a solution for your unique site and product requirements.
Machine Highlights

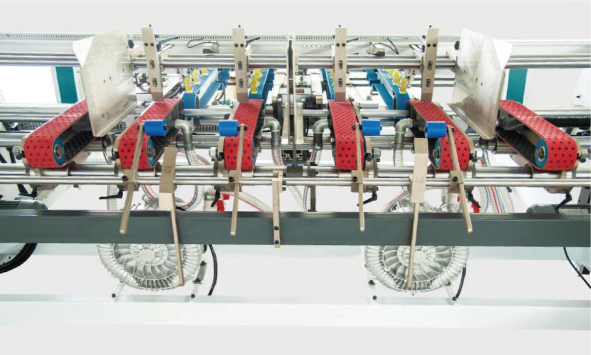

Independent Dual Feeding Mechanism
- Dual suction paper feeding mechanism is independently controlled, providing stable, precise and reliable paper feeding with easy adjustment.

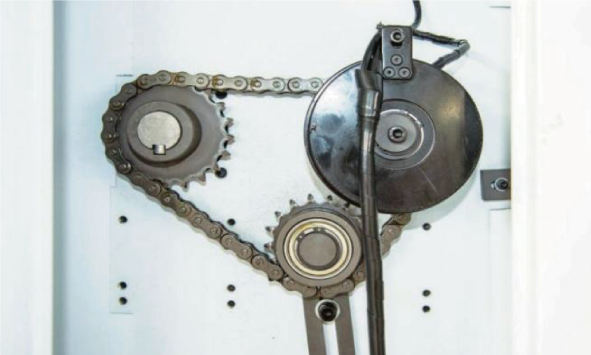

Sheet Delivery Individual Control
- An individual drive structure for AB sheet feeding to avoid scratches.

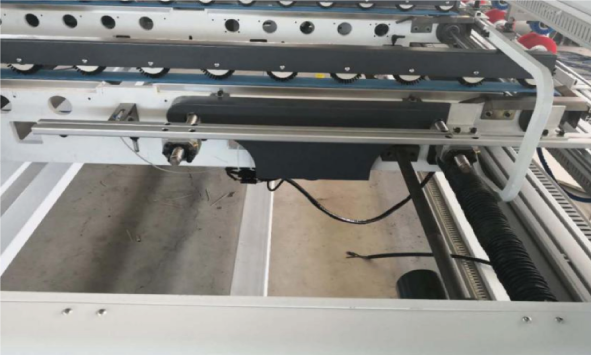

Alignment System
- A motion-control servo positioning system ensures more accurate carton alignment and faster digital adjustments.

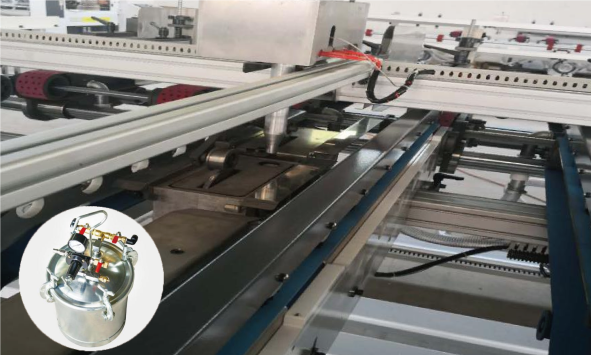

Strong Cohesiveness
- The hot glue is heated by aluminum glue box quickly. Stainless steel bucket stores cold glue to resist corrosion with pressure for automatic gluing.

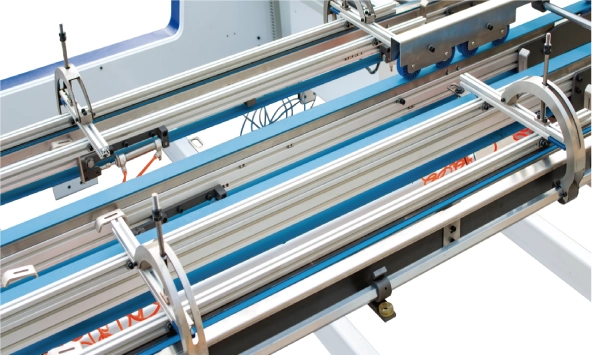

Special Belt Feeder System
- Equipped with four conveying belts to ensure smooth sheet conveying.

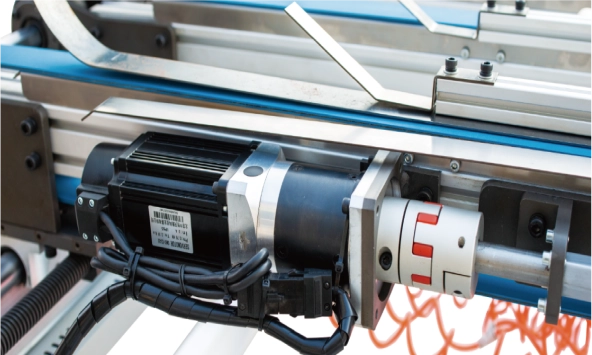

Servo Motor Controls Folding
- Use servo motor to fold the carton, with adjustable pressure and stable folding.

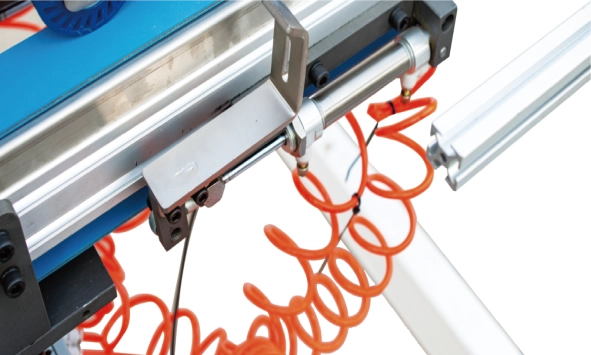

Positioning Devices for Easy Adjustment
- Equipped with front and rear positioning devices, which can be easily adjusted according to different products.

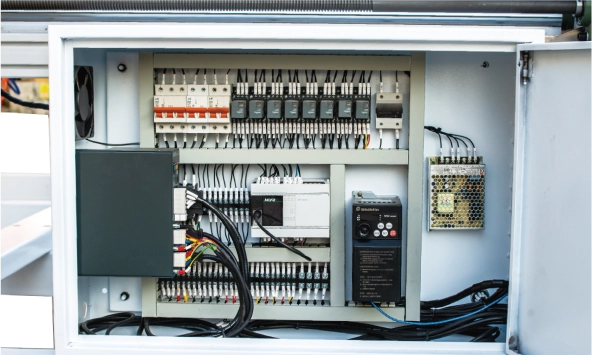

Well-known Brand Electrical Components
- The electrical components are from well-known brands at home and abroad to ensure the normal operation of the machine.

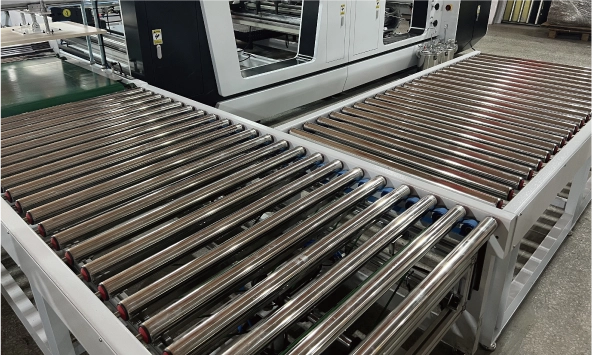

Carton Receiving Line Design
- Professional design enables one-man operation for input and receiving to save the labor cost in production.
Why Partner with FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
More than 17 years of experience within automation gives us an enormous know-how and expertise in laminating solutions.
50 + Patents
We continuously push the boundaries of speed and performance, securing 50 patents through independent research and development.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
