GW Upgraded Series Flute Laminator
Up to 16,000 stable sheets/hour with ±1.0 mm accuracy. Built for 24/7 corrugated packaging production.
Up to 16,000 stable sheets/hour with ±1.0 mm accuracy. Built for 24/7 corrugated packaging production.
- Home
- /
- Flute Laminators
- /
- GW Upgraded Series
Key Features
High-Speed Output
Max speed of 16,000 sheets/hr for 24/7 production to reduce lead times and increase capacity.
High Accuracy
Full servo control maintains laminating accuracy at ±1.0 mm for standard sheet paper. Consistent quality across every run.
Intelligent Automation
One-button operation, automatic glue and pressure adjustment, and automatic bearing lubrication reduce manual intervention.
Energy Efficient
8 kW/h power consumption, saving 20% compared to standard models
Long service life
Built with 35% margin on servo load, ensuring accuracy and durability for over 15 years.
Advanced Glue System
150 mm stainless roller with laser-engraved anilox applies an even ~18 g/m² glue line — no splash, 30% glue savings.
Choose Your Model

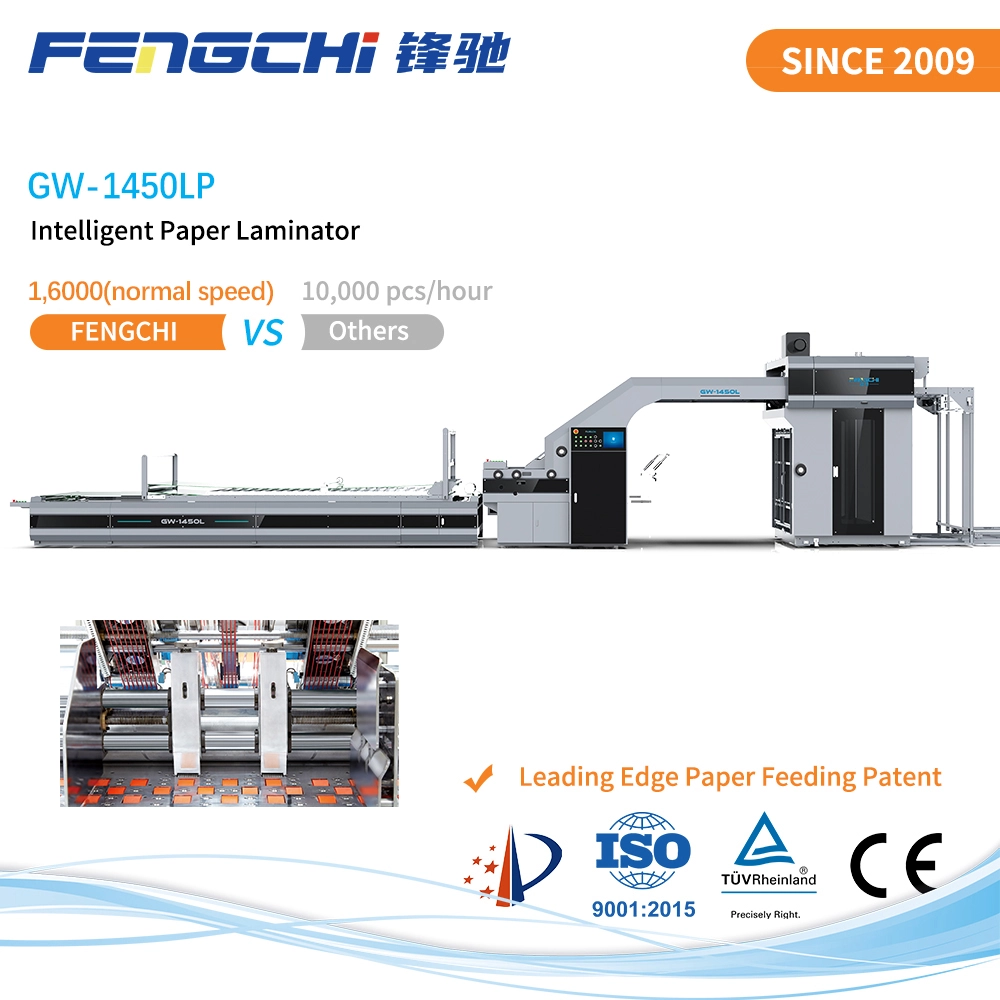

GW-1450LP Flute Laminator
Product Features
- Model: GW-1450LP (Euro-Spec Series)
- Patent: Leading Edge Paper Feeding Patent
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.

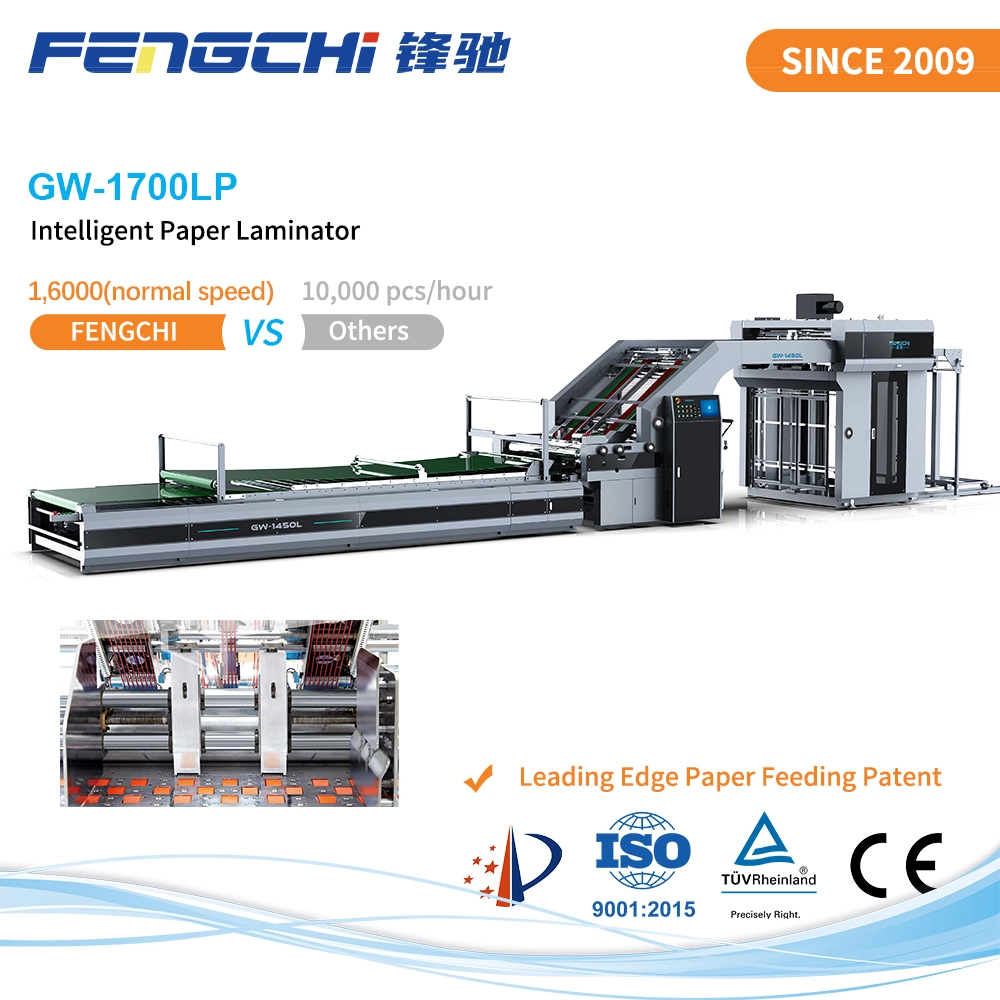

GW-1700LP Flute Laminator
Product Features
- Model: GW-1700LP (Euro-Spec Series)
- Patent: Leading Edge Paper Feeding Patent
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.

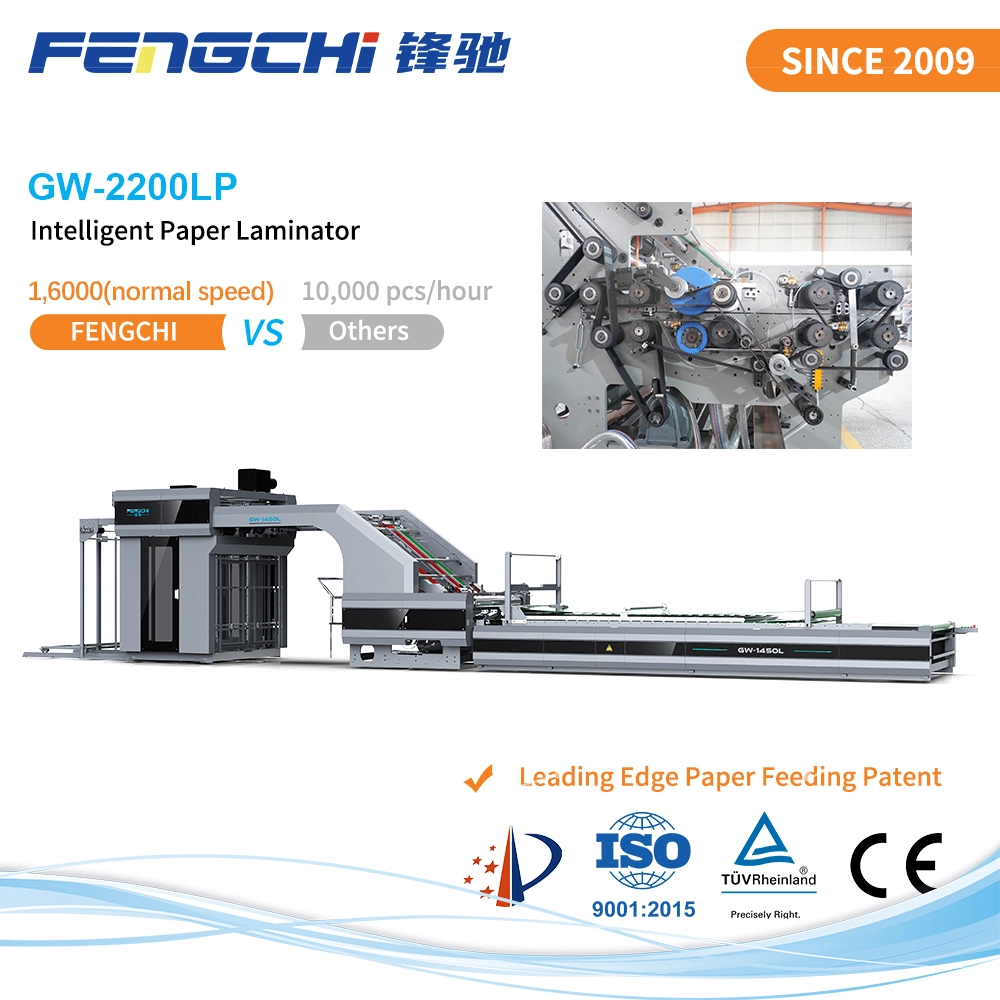

GW-2200LP Flute Laminator
Product Features
- Model: GW-2200LP (Euro-Spec Series)
- Patent: Leading Edge Paper Feeding Patent
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.

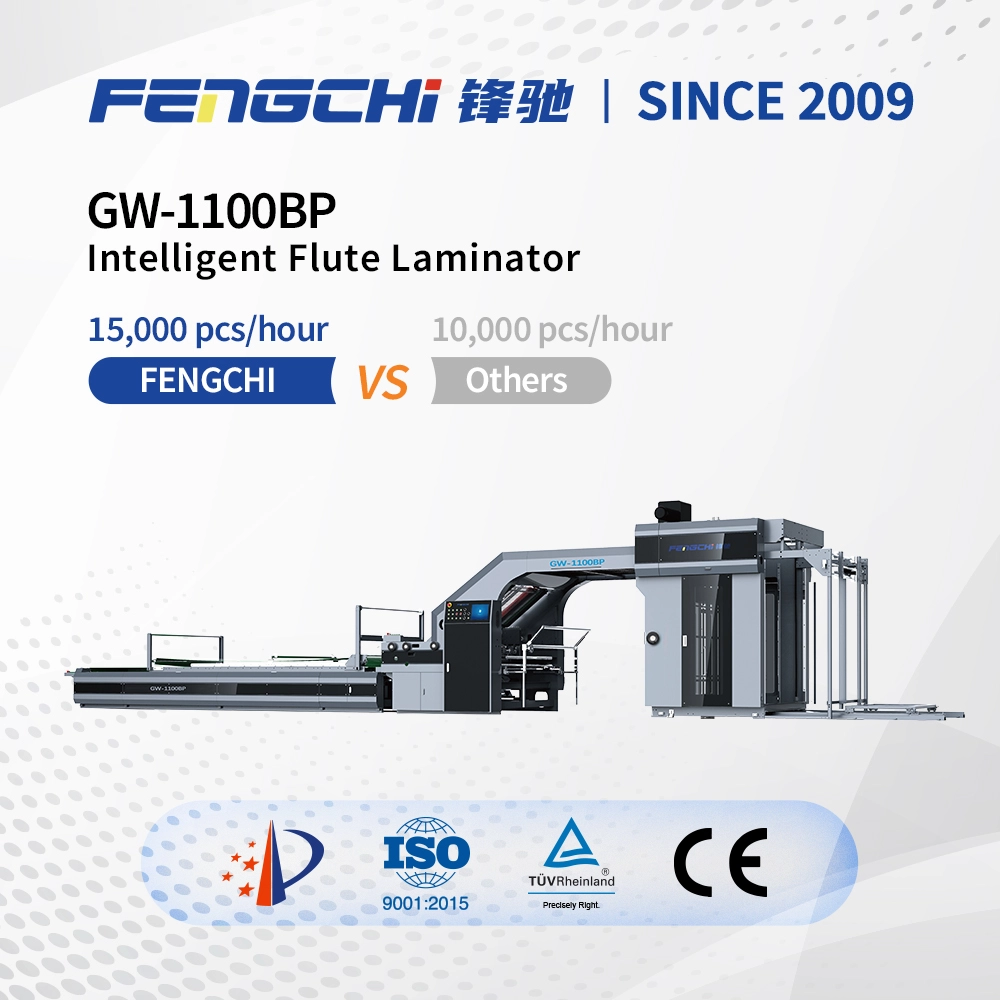

GW-1100BP Flute Laminator
Product Features
- Model: GW-1100BP (Euro-Spec Series)
- Leading Belt Feeder
- Max speed: 22,000 sheets/hour. Stable high speed: 15,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.

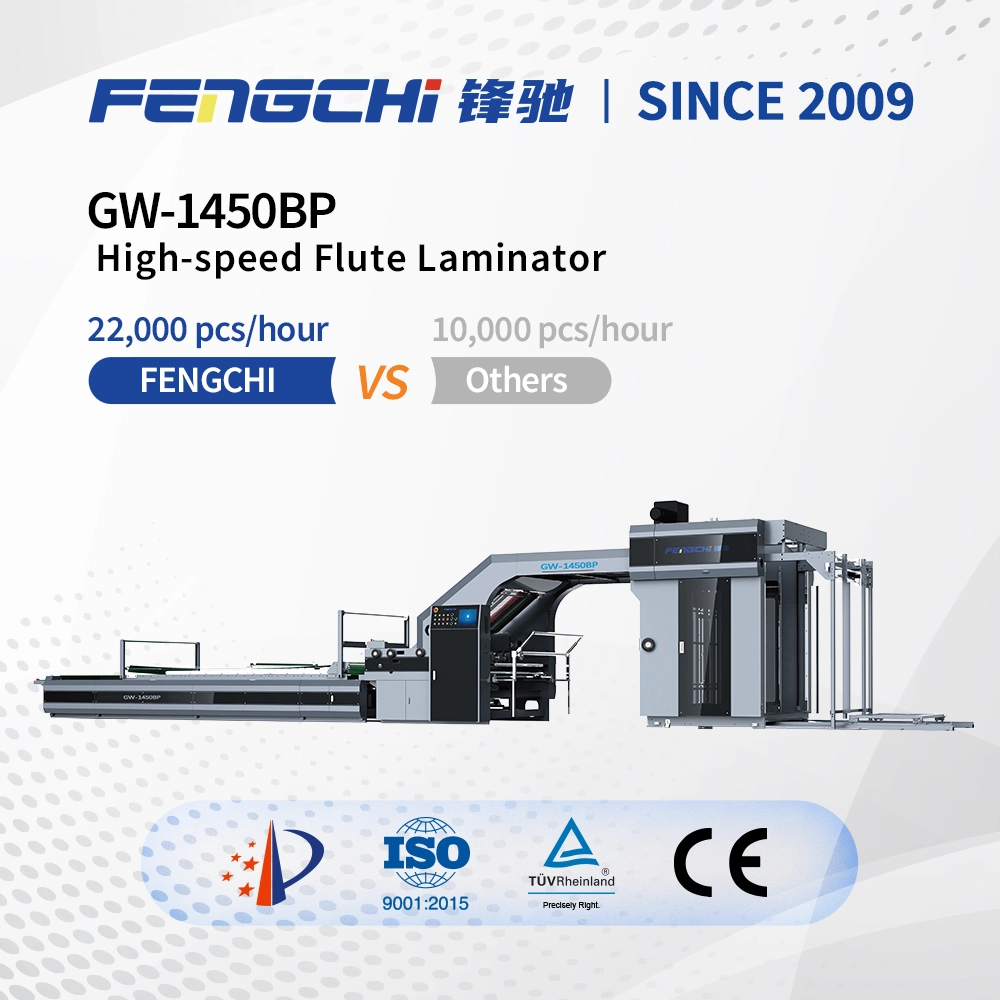

GW-1450BP Flute Laminator
Product Features
- Model: GW-1450BP (Euro-Spec Series)
- Leading Belt Feeder
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.
GW-1700BP Flute Laminator
Product Features
- Model: GW-1700BP (Euro-Spec Series)
- Leading Belt Feeder
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.
GW-2200BP Flute Laminator
Product Features
- Model: GW-2200BP (Euro-Spec Series)
- Leading Belt Feeder
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.
Technical Specifications
Leading Edge Feeder
| Parameter / Model | GW-1450LP | GW-1700LP | GW-2200LP |
|---|---|---|---|
| Max Sheet Size (W × L) | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size (W × L) | 360 × 350 mm | ||
| Bottom Paper Sheet Thickness | F flute-10mm | ||
| Upper Paper Sheet Thickness | 120-700 g | ||
| Max Speed | 16,000 sheets/hr | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Machine Weight | 8,000 kg | 8,500 kg | 9,000 kg |
| Machine Dimensions (L × W × H) | 15,700 × 2,400 × 2,550 mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | ||
| Power | 26 kW | 30 kW | 32 kW |
| Applicable Paper | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
* Contact our sales engineers for custom configurations.
Belt Feeder
| Parameter / Model | GW-1100BP | GW-1450BP | GW-1700BP | GW-2200BP |
|---|---|---|---|---|
| Max Sheet Size (W × L) | 1100 × 1200 mm | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size (W × L) | 360 × 350 mm | |||
| Bottom Paper Sheet Thickness | 0.3mm–7mm | 300gsm - 10mm | ||
| Upper Paper Sheet Thickness | 120-700 g | |||
| Max Speed | 15,000 sheets/hr | 16,000 sheets/hr | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | |||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | |||
| Machine Weight | 6,000 kg | 8,000 kg | 8,500 kg | 9,000 kg |
| Machine Dimensions (L × W × H) | 13,600 × 2,000 × 2,550 mm | 15,700 × 2,400 × 2,550 mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | |||
| Power | 20 kW | 26 kW | 30 kW | 32 kW |
| Bottom Paper Applicable | Double-coated paper above 250 gsm, and A, B, C, E, F, 3ply, 5ply corrugated board | |||
* Contact our sales engineers for custom configurations.
Machine Highlights
PU Bottom Feeding Wheel
- Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.

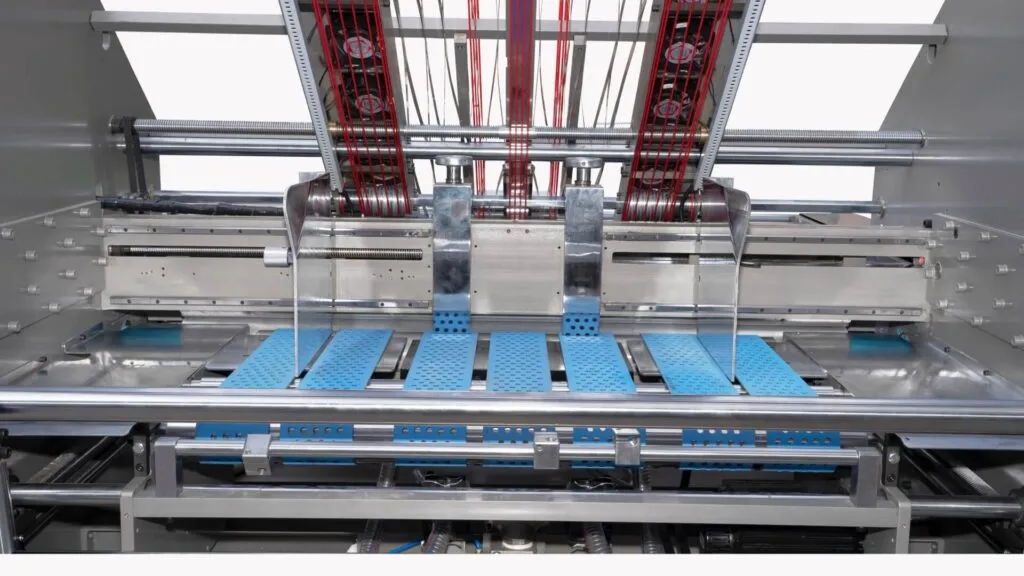

Belt Feeder System
- Extra heavy wear-resistant belt, suitable for cardboard/flute laminating, without scratch in conveying
One-button Operation
- Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.
Automatic Lubrication of Bearings
- Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.
Enlarged Glue Roller
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.
Servo Control Lifting Pile Plate
- High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.
Dual-bearing Structure
- Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
- Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
- Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.
Real Output, Real Plants
Final product samples laminated on GW Series machines — toy packaging, shipping cartons, milk boxes, display boxes and premium retail packaging.
Why Partner with FENGCHI?
If you are looking for a reliable and fully automatic high-speed flute laminator, Fengchi is the right supplier for you.
Quality Assured
ISO9001 certified quality management. CE certified products ensuring international compliance. Skilled technicians with decades of experience.
Vast Experience
We find the right solution for your packaging production — from stand-alone machines to fully integrated turnkey systems.
Global Support
11 service and support centers worldwide with around 50 sales agents. Direct technical support and parts department.
Trusted by Packaging Leaders Worldwide
Hear from packaging industry leaders who have transformed their production with FENGCHI flute laminators.
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.”
“We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding.”
“If you need to boost your productivity, Fengchi always has a solution. Excellent value for money, superior quality, delivered on time, with technical support long after installation.”
Our Proud Partners
Major Component Brands
Global Service and Support
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi has a team of professional technicians dedicated to equipment installation and commissioning.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunction with their machinery.
Frequently Asked Questions
What is the main advantage of the GW Series High-Speed Flute Laminator?
Full-servo control with one-button operation delivers up to 16,000 stable sheets/hour at ±1.0 mm accuracy — while reducing glue consumption by 30%, power by 20%, and operator skill requirements by 80% versus conventional machines.
What materials can the GW flute laminator laminate?
GW models handle A, B, C, E, F, 3-ply, 5-ply and 7-ply corrugated board, plus top sheets from 120 gsm to 700 gsm. BP models also laminate double-coated paper above 250 gsm. Compatible glues include resin adhesive, starch glue and milky glue (pH 6–8).
Is the GW Series suitable for high-volume 24/7 production?
Yes. Servo motors carry a 35% load margin reserved for longevity, and the machines run continuously with automated lubrication and glue management — supporting over 15 years of service life.
What is the difference between LP and BP models?
LP models use a leading edge feeder — ideal for heavy 3–7 ply board and maximum accuracy at full speed. BP models use a belt feeder — better suited to lighter board and multi-purpose plants, with a lower entry cost.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Do you test all your goods before delivery?
Yes, we have 100% functional testing and pilot run before delivery to ensure product integrity. All products are certificed by CE.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
What are your packaging conditions?
Usually, we pack the machine in a container with a plastic bag with desiccants, then with strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into case.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
