Flute Laminating Line
Engineered for unparalleled speed, accuracy & reliability.
Runs up to 16,000 sheets/hour with laminating accuracy ±1.0 mm.
Flute Laminating Line
High-speed flute laminating line for corrugated and cardboard packaging.
Overview
Automatic flute laminator production line
FENGCHI is a market leader in high-speed flute laminator machines. For over 16 years, we have installed more than 3,200 automatic flute laminator machine production lines in over 60 countries and regions.
FENGCHI automatic flute laminator is the ultimate solution for laminating color-printed paper onto corrugated board, offering unmatched accuracy and speed. This equipment is ideal for medium to large-scale packaging manufacturers.
Automatic flip flop stackers are an auxiliary equipment for flute laminators, specifically designed for seamless integration into corrugated board production lines.
Our automatic flute laminator line is engineered to maximize throughput, improve product quality, and lower labor costs.
Experience the difference with Fengchi flute laminator lines and discover how we can elevate your operations to new heights.
Choose Your Model
At Fengchi Printing Machinery, we offer a wide range of high-speed flute laminator lines to meet your production needs.

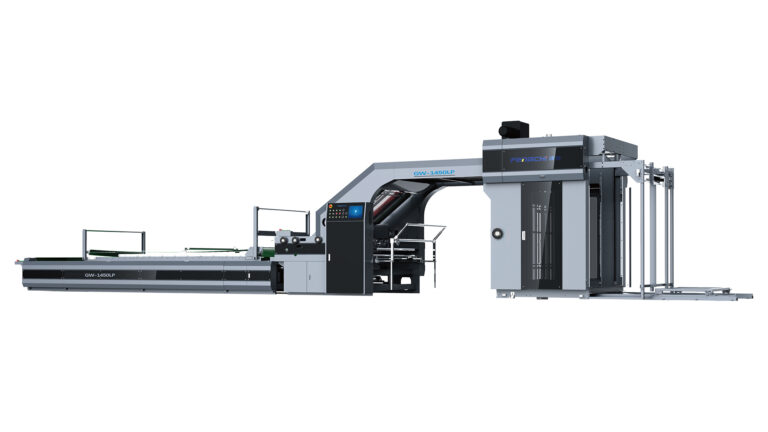

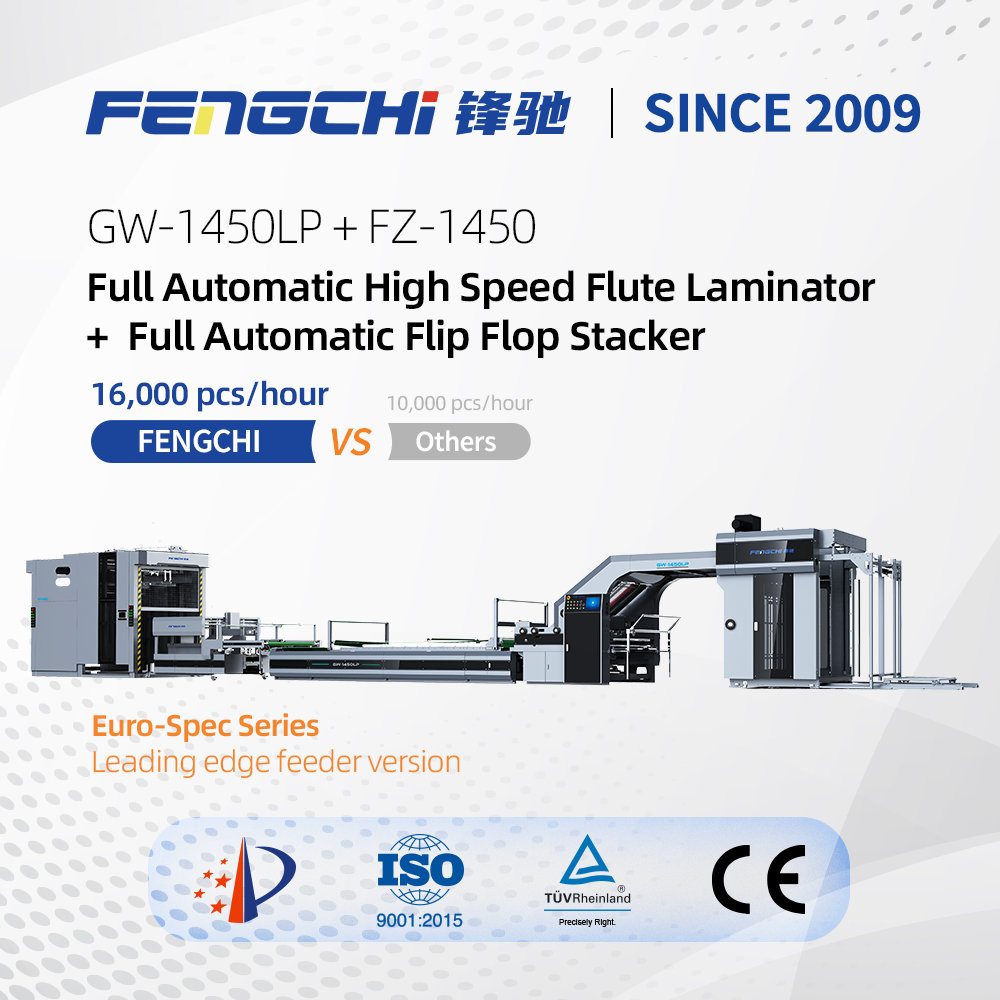

GW-1450LP Automatic flute laminator machine production line
Product Features
- Model: GW-1450LP (Euro-Spec Series)
- Patent: Leading Edge Paper Feeding Patent
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.
GW-1700LP Automatic flute laminator machine production line
Product Features
- Model: GW-1700LP (Euro-Spec Series)
- Patent: Leading Edge Paper Feeding Patent
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.
GW-2200LP Automatic flute laminator machine production line
Product Features
- Model: GW-2200LP (Euro-Spec Series)
- Patent: Leading Edge Paper Feeding Patent
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.

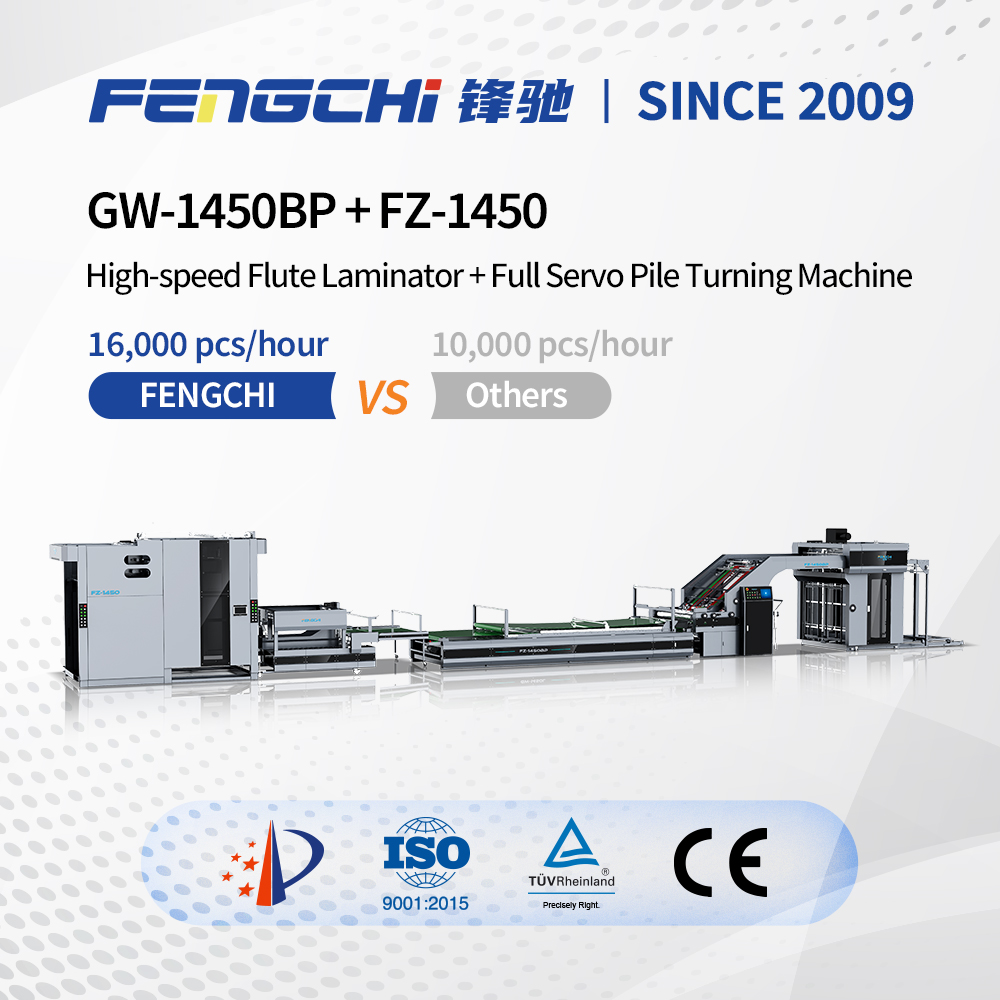

GW-1450BP Automatic flute laminator machine production line
Product Features
- Model: GW-1450BP (Euro-Spec Series)
- Leading Belt Feeder
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.
GW-1700BP Automatic flute laminator machine production line
Product Features
- Model: GW-1700BP (Euro-Spec Series)
- Leading Belt Feeder
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.

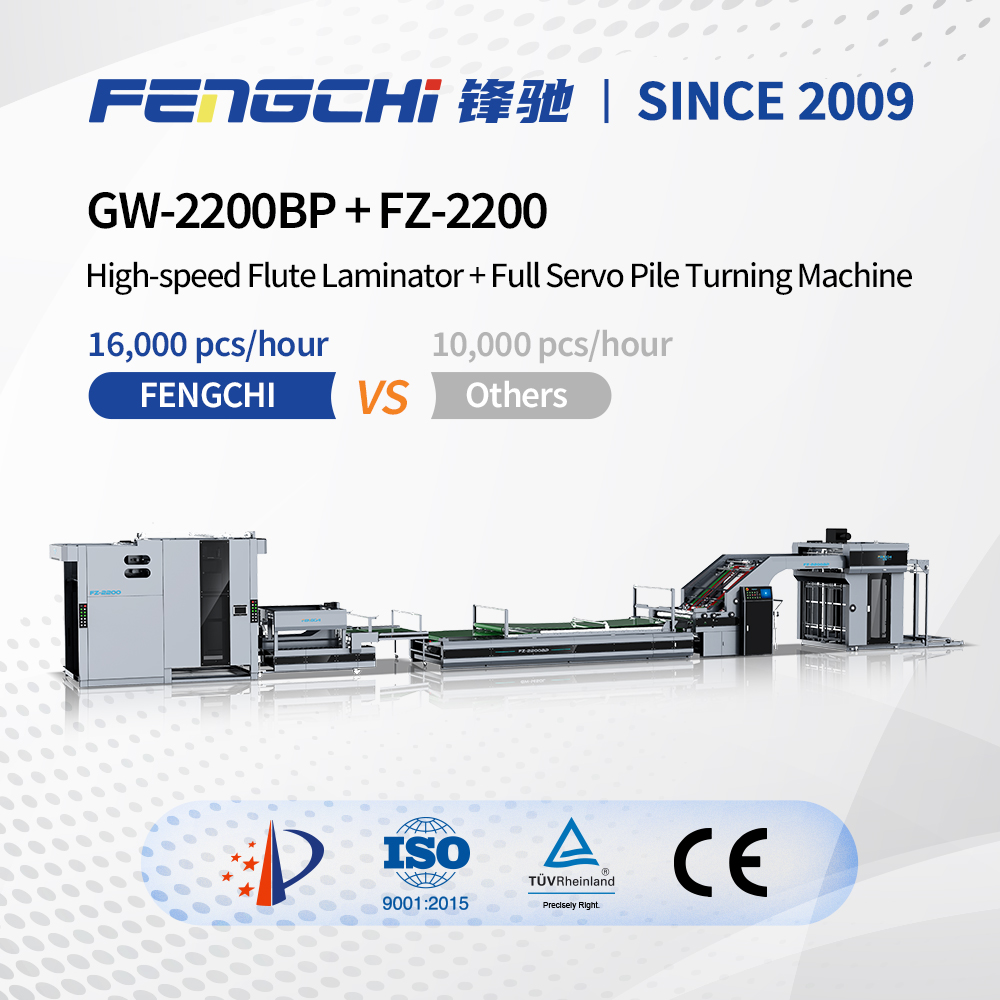

GW-2200BP Automatic flute laminator machine production line
Product Features
- Model: GW-2200BP (Euro-Spec Series)
- Leading Belt Feeder
- Max speed: 22,000 sheets/hour. Stable high speed: 16,000 sheets/hour for continuous 24-hour running.
- Power consumption about 8 kW/h, saving about 20% of power.
- Digitally intelligent design with automatic glue and pressure adjustment, as well as automatic bearing lubrication. Technical requirements for equipment operators reduced by 80%.
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about 18g/㎡, saving 30% of the glue.
- Full servo control systems, high-speed and stable laminating with the accuracy ±1.0mm.
- Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged.
* Not sure which flute laminator machine is best suited to your needs? Contact our experts.
High-Speed Flute Laminator
Technical Specifications
Leading Edge Feeder Version
| Model | GW-1450LP | GW-1700LP | GW-2200LP |
|---|---|---|---|
| Max. Paper Size (W x L) | 1450 x 1450 mm | 1700 x 1650 mm | 2200 x 2100 mm |
| Min. Paper Size (W x L) | 360 x 350 mm | 360 x 350 mm | 360 x 350 mm |
| Bottom Paper Sheet Thickness | F flute-10mm | ||
| Upper Paper Sheet Thickness | 120 g-700 g | ||
| Max. Working Speed | 16,000 Sheets/Hour (165 M/Min) | ||
| Laminating Accuracy | ±1.0mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Power Supply | 380 VAC/3P | ||
| Power | 26 kW | 30 kW | 32 kW |
| Applicable Corrugated Board | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
| Machine Weight | 8,000 KG | 8,500 KG | 9,000 KG |
| Overall Dimension (L x W x H) | 15,700 x 2,400 x 2,550 mm | 16,300 x 2,650 x 2,550 mm | 18,500 x 3,050 x 2880 mm |
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Belt Feeder Version
| Model | GW-1450BP | GW-1700BP | GW-2200BP |
|---|---|---|---|
| Max. Paper Size (W x L) | 1450 x 1450 mm | 1700 x 1650 mm | 2200 x 2100 mm |
| Min. Paper Size (W x L) | 360 x 350 mm | 360 x 350 mm | 360 x 350 mm |
| Bottom Paper Sheet Thickness | 300gsm - 10mm | ||
| Upper Paper Sheet Thickness | 120 g-700 g | ||
| Max. Working Speed | 16,000 Sheets/Hour (165 M/Min) | ||
| Laminating Accuracy | ±1.0mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Power Supply | 380 VAC/3P | ||
| Power | 26 kW | 30 kW | 32 kW |
| Applicable Corrugated Board | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
| Machine Weight | 8,000 KG | 8,500 KG | 9,000 KG |
| Overall Dimension (L x W x H) | 15,700 x 2,400 x 2,550 mm | 16,300 x 2,650 x 2,550 mm | 18,500 x 3,050 x 2880 mm |
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Flute Laminator Highlights
PU Bottom Feeding Wheel
- Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.
Leading-edge Feed System
- Self-developed leading-edge feed system specially for deformed, warped corrugated papers.
One-button Operation
- Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.
Automatic Lubrication of Bearings
- Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.
Enlarged Glue Roller
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.
Servo Control Lifting Pile Plate
- High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.
Dual-bearing Structure
- Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
- Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
- Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.

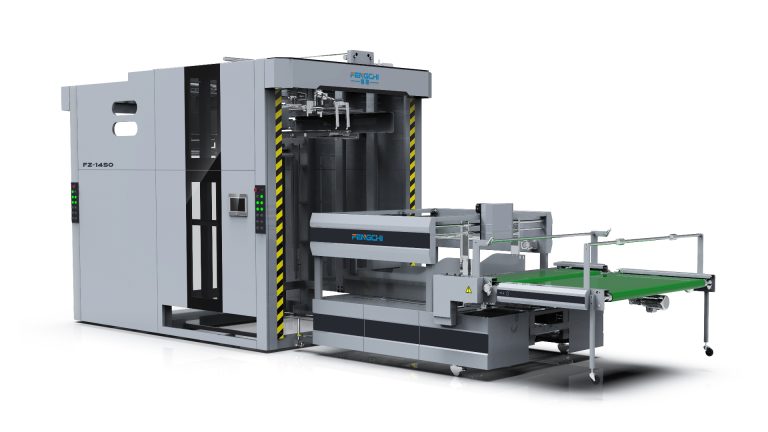

Flip Flop Stacker
Technical Specifications
| Model | FZ-1450 | FZ-1700 | FZ-2200 |
|---|---|---|---|
| Max.Sheet Size(W x L) | 1450 x 1450 mm | 1700 x 1650 mm | 2100 x 1650 mm |
| Min.Sheet Size (W x L) | 500 x 380 mm | 550 x 380 mm | 600 x 380 mm |
| Max. Working Speed | 15,000 sheets/hour | ||
| Machine Weight | 3,800 kg | 4,000 kg | 5,600 kg |
| Dimension (L x W x H) | 6,955 x 2,432 x 2,892 mm | 7,555 x 2,682 x 2,892 mm | 9,120 x 2,910 x 2,892 mm |
| Voltage | 380 VAC/3P | ||
| Power | 12 kW | 12 kW | 14 kW |
| Gas source | 0.8 MPa >5.5 kW | ||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Flip Flop Stacker Highlights
Electrical Control System
- The system adopts internationally advanced motion control technology and digital control, ensuring smoother, faster, and more stable machine operation with easier usability.
Pile Turning Mechanism
- Adopting high-speed silent track which is smooth, silent, wear-free, and with long-term service life. The flipping servo and lifting servo electronic cam are locked, the flipping lifting speed can be adjusted disposable.
Lubrication
- Adopting simple man-machine interface which only needs to input the paper size, one key to adjust the machine, no need to use any tools, one key to start. The equipment adopts operation control technology.
Paper Division
- The three-section independent frequency conversion speed regulation mechanism can adjust the speed of each section of the paper according to the thickness of the paper output from the main machine press.
See Flute Laminator Line in Action
Automatic flute laminating production line designed for reliability and speed
Final Product Samples
Why Partner with Fengchi?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Hear from industry leaders who have transformed their production with our automatic flute laminators
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!”
– JULIO Julio Miamau, CEO
“We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding. Every delivery meets our high standards, giving us a competitive edge in the market. They are truly a trustworthy partner.”
– Farhan Mathur, Business Owner
“If you need to boost your productivity, Fengchi always has a solution for you. Their equipment offers excellent value for money, is of superior quality, and is delivered on time. They pay close attention to detail and continue to provide technical support long after the equipment has been installed.”
– Theo Prosenica, Managing Director
Our Proud Partners
Major Component Brands
Our Service for Your Success
Fengchi Printing Machinery knows that successful installation, training, and support are critical to your operation and achieving the profitability gains you target. This drives our commitment to your success.
Our goal is to provide you with the tools and technical knowledge that your in-house maintenance needs, to be able to fix their own machines.
Our technical support team and parts department work with customers to resolve issues over the phone, but when special care is needed, our team is prepared to make emergency field service visits, to get your plant up and running quickly. Parts, service, and support are handled directly through the Fengchi technical support group.
Frequently Asked Questions
What makes Fengchi different from other flute laminator line manufacturers?
We specialize exclusively in flute laminating technology with 15+ years of focused innovation. Our 25-engineer R&D team holds 30 patents specifically for solving corrugated lamination challenges like glue waste and paper warping. Unlike general machinery manufacturers, we’ve dedicated our entire business to perfecting this specific technology.
What is your typical delivery time?
Most standard models ship in 10-30 working days after order confirmation. We maintain some stock models for quicker delivery—contact us for current availability. For custom configurations, delivery time depends on the specific modifications required, but we work efficiently to minimize lead times without compromising quality.
What warranty is provided?
Standard warranty is 12 months from shipping date. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Can machines be customized?
Yes — tailored configurations are available through our sales engineers.
How do you ensure machine quality before shipment?
Every machine undergoes 100% functional testing and a full pilot run with materials similar to yours. We are CE certified for international safety standards. Our quality control process includes dozens of specific checkpoints covering mechanical, electrical, and operational parameters.
