Automatic Spot UV Coating Machine
Industrial-grade spot UV coaters that reach 9,000 sheets/hour with ±0.15 mm accuracy
What Is a Spot UV Coating Machine?
The spot UV coating machine uses precision registration systems and a calibrated coating head to apply varnish only where it delivers maximum visual and tactile impact. The result is an elevated, premium finish that commands higher shelf appeal and brand recognition.
Fengchi’s automatic spot UV coaters are purpose-built for high-volume production — integrating servo-driven feeding, PLC control, IR + UV curing, and photoelectric alignment to eliminate waste while maximizing throughput and consistency.
Key Features
Built for industrial-scale production with high efficiency, coating precision, and long-term reliability.
High-Speed Operation
Maximize productivity with speeds up to 9,000 sheets/hour. Continuous operation designed for high-demand production environments.
Precision Coating
Achieve perfect spot UV application with millimeter-level accuracy for stunning visual effects.
Precision Engineering
Apply a precise, high-gloss finish to specific parts of your print using our calibrated machines.
Easy Operation
User-friendly interfaces and automated systems make operation simple and efficient.
Long-Term Durability
Built to last with high-quality materials for long-term reliability.
Expert Support
Comprehensive technical support and training for optimal operation.
Choose Your Spot UV Coating Solution
Two distinct series to match your production demands, from high‑volume packaging to boutique short‑run jobs.

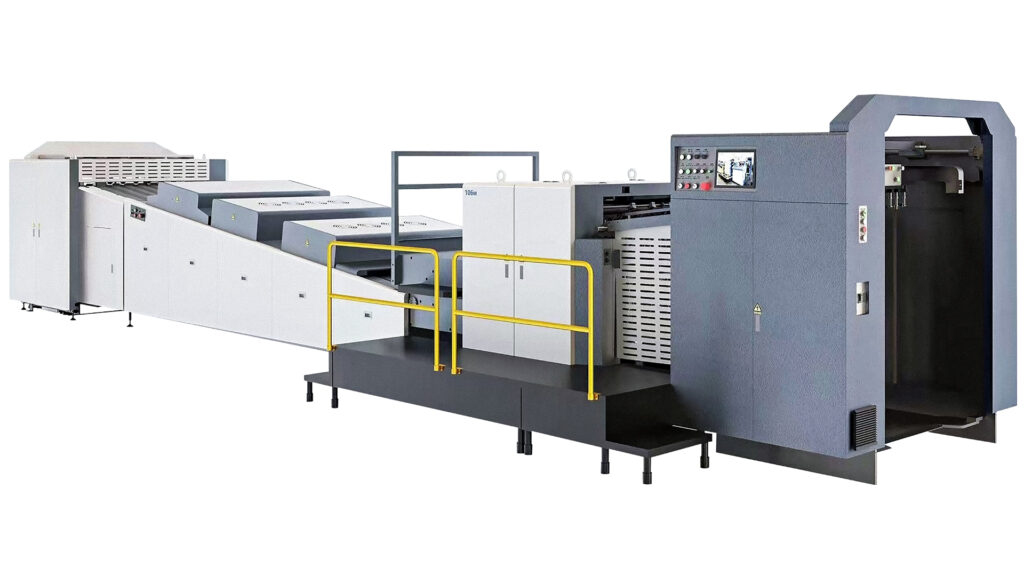

TY Series — Automatic Spot UV Coating Machine
Ideal for large runs and coating contrast on logos, images, and text.
| Speed | Up to 6,500–8,000 sheets/hour |
|---|---|
| Registration | ±0.15 mm |
| Max.Coating Area | 1290 × 1640 mm |
| Max Sheet | up to 1300 × 1650 mm |

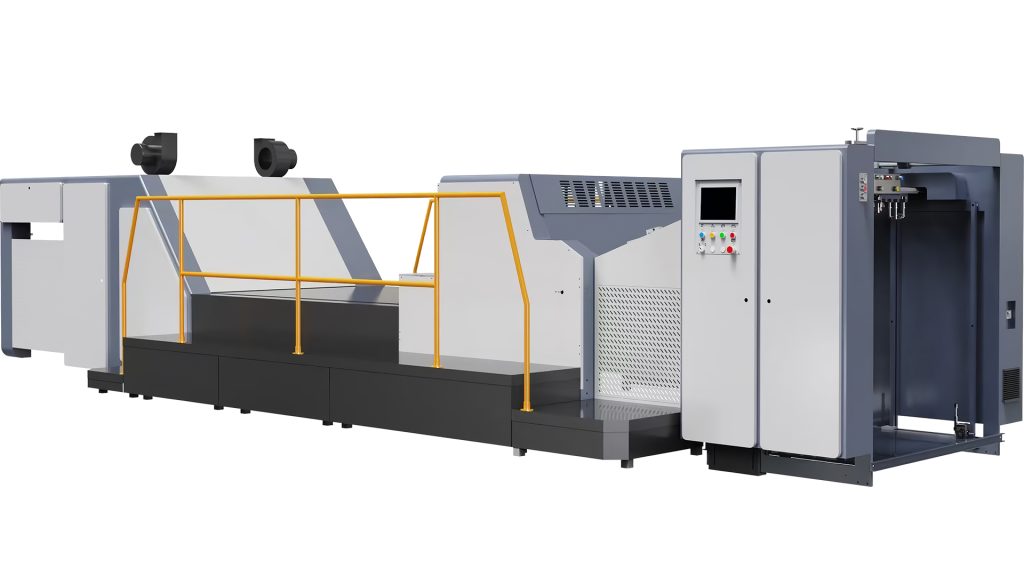

Focus Series — High‑Speed Local UV Glazing Machine
Perfect for high-mix shops and fast turnarounds with maximum speed.
| Speed | Up to 9,000 sheets/hour |
|---|---|
| Registration | ±0.2 mm |
| Max.Coating Area | 740 × 1050 mm |
| Max Sheet | up to 750 × 1060 mm |

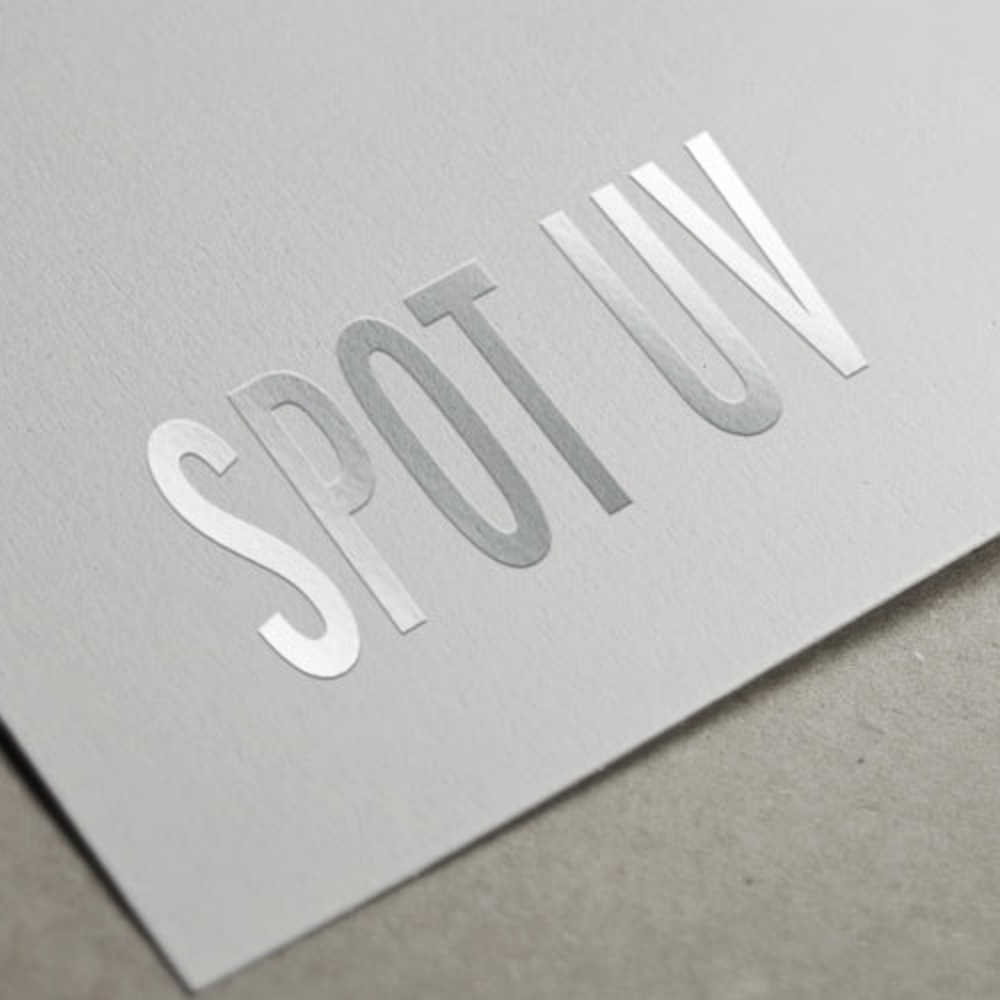

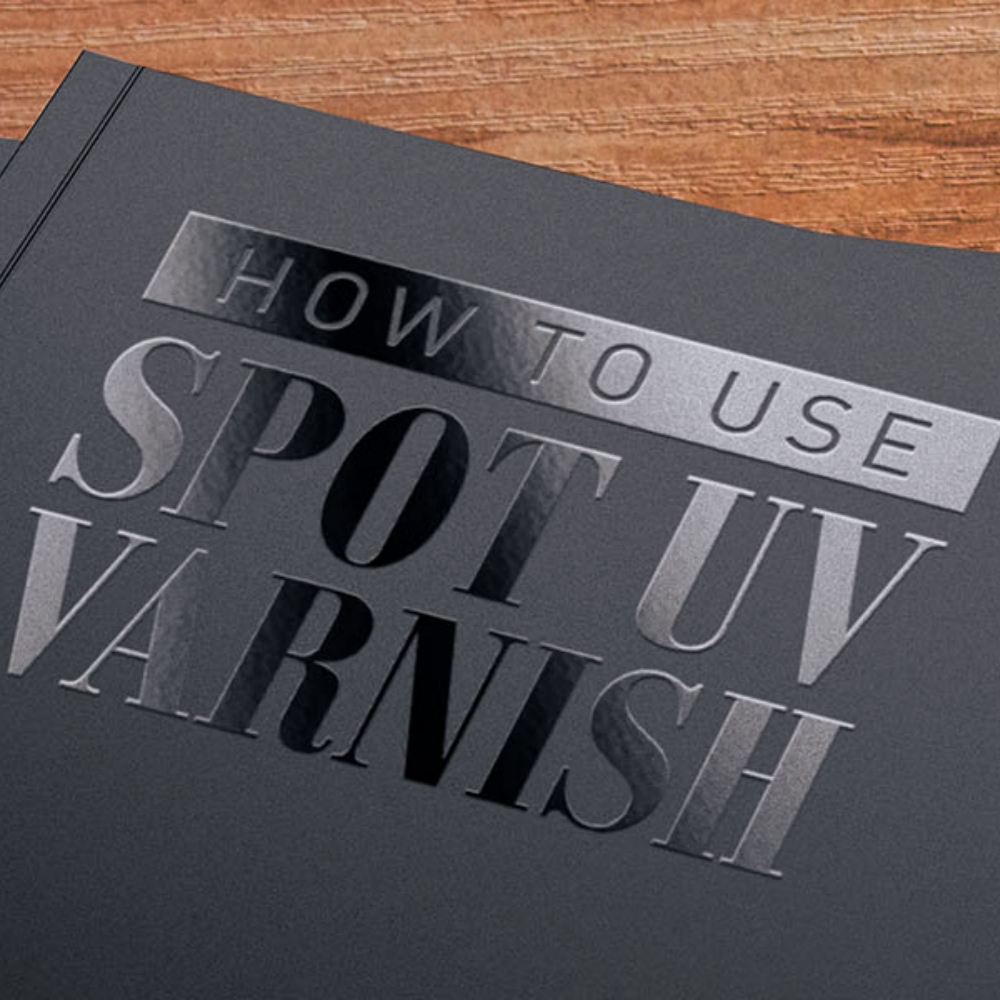

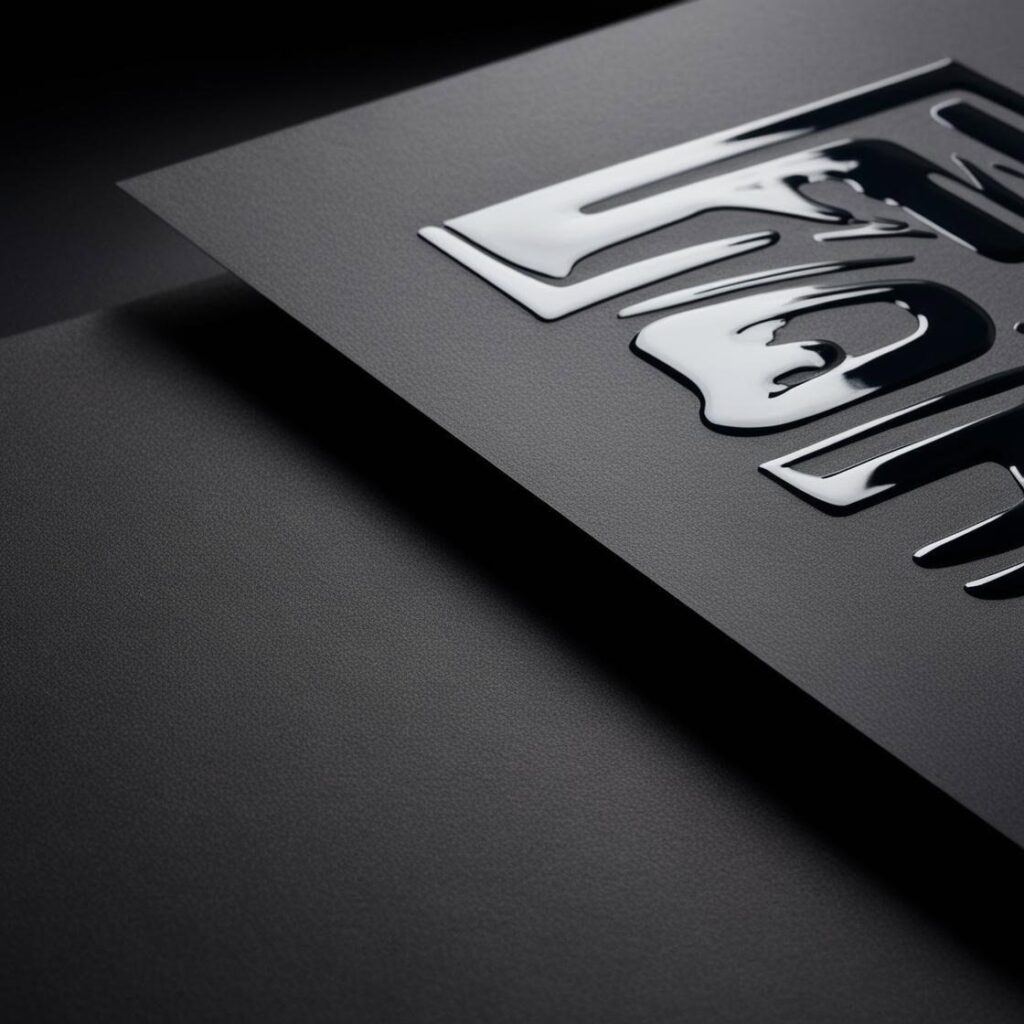

Final Product Samples
Suitable for a wide range of premium packaging applications.
Exported Worldwide
Why Partner with FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Innovative Solutions
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.

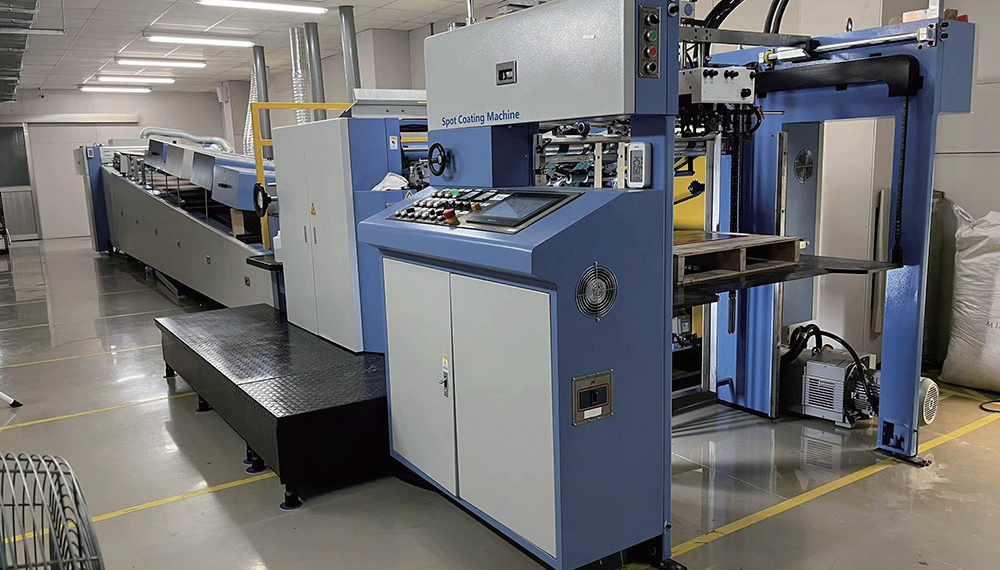

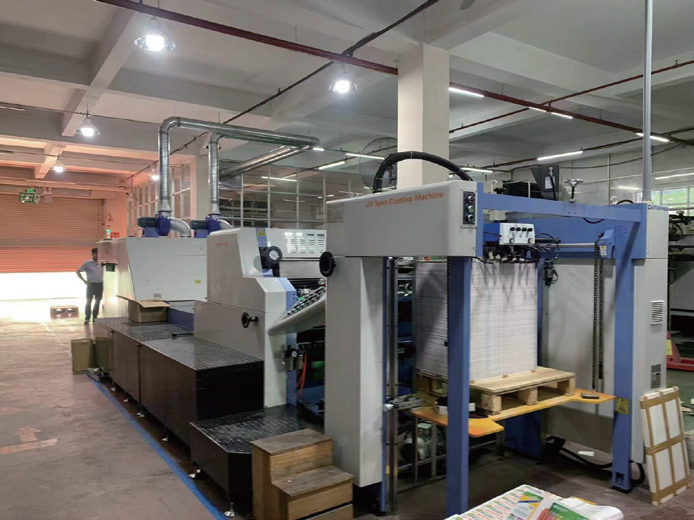

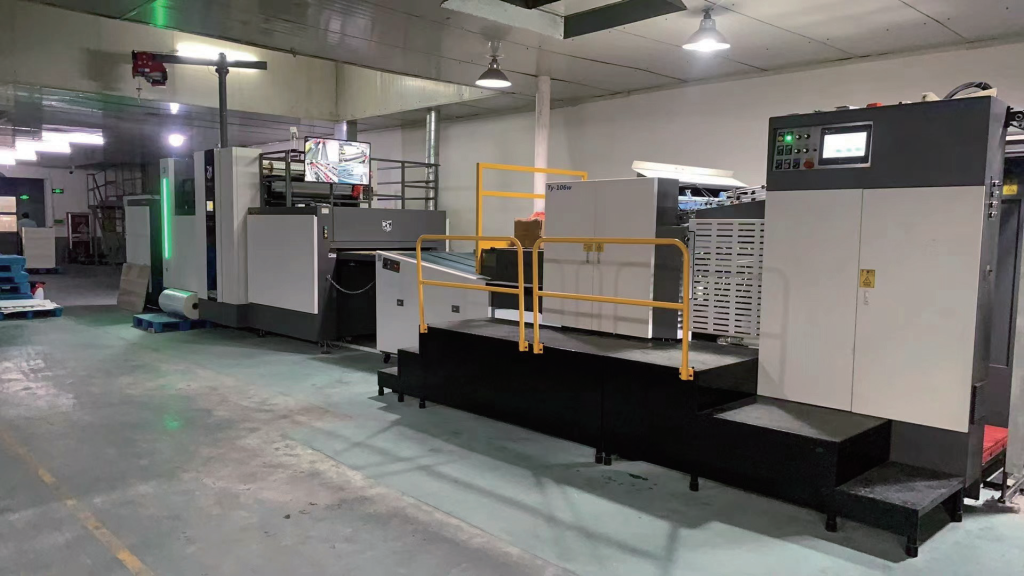

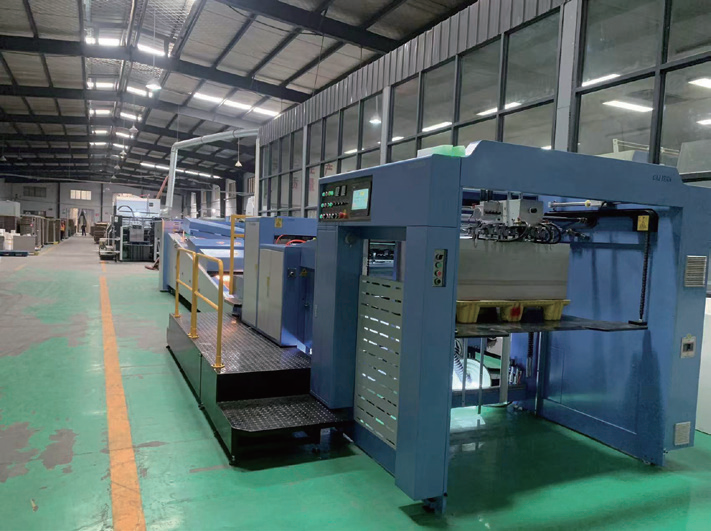

What Our Customers Say
See what our customers say about our automatic high-speed spot UV coating machines.
“We replaced our old coater with TY-series Spot UV and the throughput jump was immediate. The machine’s automatic feeder and servo controls keep registration rock-steady.”
“Precision and finish matter for our brand, and this Spot UV unit delivers. It handles thin art papers and thicker card stocks with equal ease.”
“Safety and uptime were our priorities. The machine’s double-sheet detector and temperature control make the line safer and far more reliable.”
Our Proud Partners
Global Service and Support
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi has a team of professional technicians dedicated to equipment installation and commissioning.

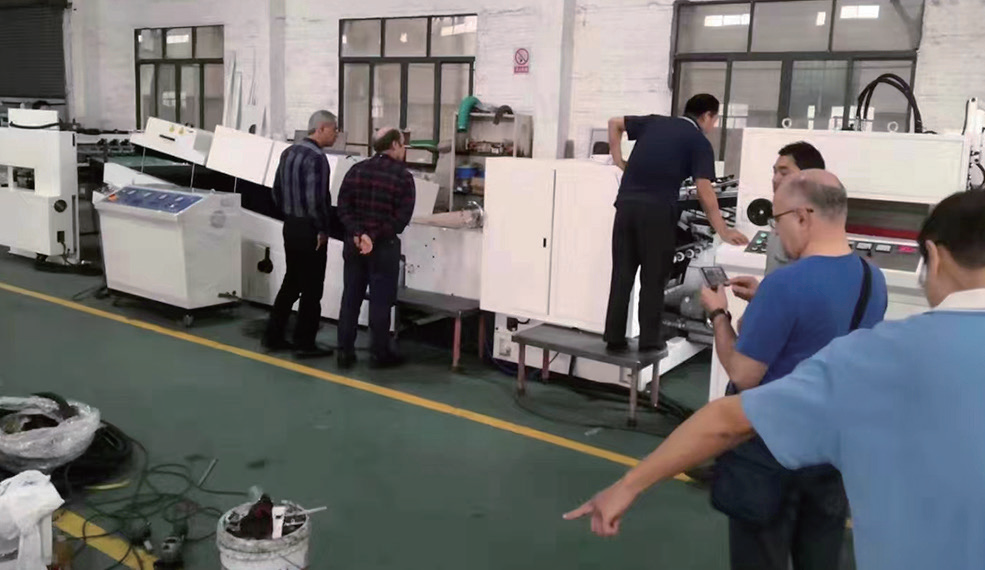

Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunction with their machinery.
Frequently Asked Questions
What is a spot UV coating machine and how does it work?
A spot UV coating machine selectively applies a UV-curable varnish to specific areas of a printed sheet — logos, images, or text — to create a striking gloss-on-matte contrast. The machine uses a registration system (front and side guides with photoelectric sensors) to align each sheet, then a coating roller or head transfers varnish precisely onto the chosen areas. The sheet then passes under UV lamps (and IR dryers) to instantly cure the varnish, resulting in a durable, high-gloss finish.
How fast is a Fengchi spot UV coating machine?
The Focus Series reaches up to 9,000 sheets/hour, making it one of the fastest spot UV coaters in its class. The TY Series delivers 6,500–8,000 sheets/hour depending on the format (TY-1060W, TY-1060W-L, TY-1460W, or TY-1650W).
What materials does the machine handle?
Suitable for coated paper, white cardboard, laminated grayboard wrap paper, and various packaging materials.
What industries use this machine?
Cosmetics, food packaging, pharmaceuticals, electronics, luxury packaging, and commercial printing.
How quickly can production jobs be changed?
Fast setup and intelligent controls help reduce job changeover time significantly.
Do you provide overseas installation support?
Yes. We provide installation guidance, operator training, and technical support worldwide.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
Request a Free Quote
Tell us your production requirements — we’ll recommend the right spot UV coating machine.
