HD Series Automatic Folder Gluer and Stitcher
The all-in-one solution for folding, gluing, and stitching corrugated boxes.
Up to 1,600 stitches/min, 3-minute job changeovers, reliable 24/7 production.
HD Series Automatic Folder Gluer and Stitcher
The all-in-one solution for folding, gluing, and stitching corrugated boxes.
Up to 1,600 stitches/min, 3-minute job changeovers, reliable 24/7 production.
Overview
The HD Series High-Speed Automatic Folder Gluer and Stitcher is built for corrugated box manufacturers who demand maximum output without compromising on quality. Unlike separate folding, gluing, and stitching lines, the HD Series combines all three operations in one intelligent platform — cutting your equipment footprint, labor costs, and setup time by up to 60%.
Whether you produce standard shipping boxes, large-format industrial containers, or specialty retail packaging, the HD Series adapts to your production needs. Available in three configurations — HD-2800 (standard), HD-2800 Ultra (full servo), and HD-3200 (large format) — there is a model sized and spec’d for your operation.
Key Features
Full-Process Intelligent Control
Computer-controlled operation with order memorizing, stable quality & labor saving.
Modular Multi-Functional
Folding gluing, stitching, or combined. One-key conversion between stitching and gluing.
Quick Order Changeover
3-5 minutes job change for mass production, reduce downtime drastically.
Adaptive Stitching Modes
Single / double stitching easily switched, stitch quantity 1-99, gap 40-500mm.
Six-Axis Automation Line
Servo-driven folding, auto pressure adjustment (Ultra/3200), high precision.
Smart Stitching Monitoring
Automatic stitch feeding with detection & break function, real-time quality control.
Full Corrugation Compatibility
A, B, C, AB flute, 3/5/7 ply corrugated board, all in one machine.
High-efficiency Stitching Head
Maximum stitching speed of up to 1,600 stitches per minute, delivering faster speeds and higher productivity.
Choose Your Model
High-Speed Automatic Folder Gluer and Stitcher
Product Features
- The key feature of the machine is full computer control, easy operation, stable quality, high speed to achieve economic benefits, labor cost saving.
- This is an all-in-one machine, separately it can do folding gluing, stitching, or folding gluing and stitching. Single stitching and double stitching can be easily switched.
- Job-change can be done in 3-5 minutes for mass production. (Order memorizing function included)
- Suitable for A/B/C/AB flute, 3ply, 5ply, 7ply corrugated paper.
- Automatic paper folding, correcting, stitching, gluing, counting and stacking.
- Use swinging head, small power consumption, faster speed, more stability, effectively improve the quality of the stitching box.
- Use the paper correction device to make secondary compensation and correct the positioning mistake, eliminate the unaligned part to perfectly stitch the box.
- The automatic stitch feeding can realize stitch detection and stitch breaking.
- One-key conversion between stitching and gluing function.
High-Speed Automatic Folder Gluer and Stitcher
Product Features
- The key feature of the machine is full computer control, easy operation, stable quality, high speed to achieve economic benefits, labor cost saving.
- This is an all-in-one machine, separately it can do folding gluing, stitching, or folding gluing and stitching. Single stitching and double stitching can be easily switched.
- Job-change can be done in 3-5 minutes for mass production. (Order memorizing function included)
- Suitable for A/B/C/AB flute, 3ply, 5ply, 7ply corrugated paper.
- Automatic paper folding, correcting, stitching, gluing, counting and stacking.
- Use swinging head, small power consumption, faster speed, more stability, effectively improve the quality of the stitching box.
- Use the paper correction device to make secondary compensation and correct the positioning mistake, eliminate the unaligned part to perfectly stitch the box.
- The automatic stitch feeding can realize stitch detection and stitch breaking.
- One-key conversion between stitching and gluing function.
High-Speed Automatic Folder Gluer and Stitcher
Product Features
- The key feature of the machine is full computer control, easy operation, stable quality, high speed to achieve economic benefits, labor cost saving.
- This is an all-in-one machine, separately it can do folding gluing, stitching, or folding gluing and stitching. Single stitching and double stitching can be easily switched.
- Job-change can be done in 3-5 minutes for mass production. (Order memorizing function included)
- Suitable for A/B/C/AB flute, 3ply, 5ply, 7ply corrugated paper.
- Automatic paper folding, correcting, stitching, gluing, counting and stacking.
- Use swinging head, small power consumption, faster speed, more stability, effectively improve the quality of the stitching box.
- Use the paper correction device to make secondary compensation and correct the positioning mistake, eliminate the unaligned part to perfectly stitch the box.
- The automatic stitch feeding can realize stitch detection and stitch breaking.
- One-key conversion between stitching and gluing function.
Technical Specifications
| Parameter / Model | HD-2800 | HD-2800 Ultra | HD-3200 |
|---|---|---|---|
| Max sheet (L×W) | 2800 × 1200 mm | 2800 × 1200 mm | 3200 × 1200 mm |
| Min sheet (L×W) | 760 × 300 mm | ||
| Max stitching speed | 1600 stitches/min | ||
| Stitching gap | 40 – 500 mm | ||
| Stitching quantity | 1 – 99 stitches | ||
| Machine net weight | 9.7 T | 11 T | 12 T |
| Machine size (L×W×H) | 17000×4200×2600mm | 17000×4200×2600mm | 18500×5000×2300mm |
| Power source | 380VAC/3P, 50Hz | 380V/3P, 50Hz | |
| Power consumption | ≤23 kW | ≤28 kW | ≤31 kW |
| Air source | 0.6 – 0.8 MPa | ||
| Applicable paper | A, B, C, AB flute, 3ply, 5ply, 7ply corrugated | ||
| Automatic feeder pressure adjustment | No | Yes | Yes |
| Auto stitching head pressure adjustment | No | Yes | Yes |
| Customized small side folding | No | Yes | Yes |
| Folding part full servo control | No | Yes | Yes |
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Machine Highlights

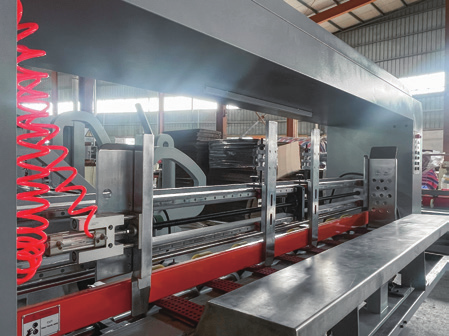

Feeding Part
- With the retention-frame pneumatic flap, more stable,higher accuracy.
- Siegling high wear-resistance suction belt, can control the air volume, ensure complete paper adsorption, ensure stable paper transmission, accurate positioning.
- Split air suction unit, effectively reduces the after-sales maintenance cost and time.

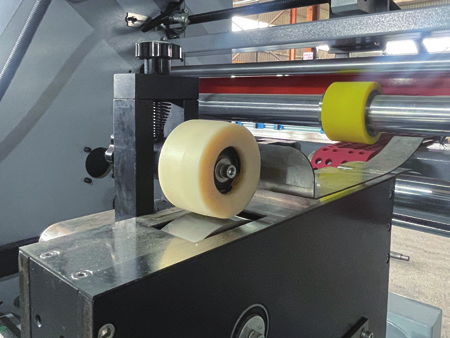

Leading-edge Feed System
- The independent edge pressing structure effectively solve sthe problem of thick cardboard blasting in the process of stitching.
- The split transmission shaft can be adjusted separately and tightened to ensure that the belt pressure is consistent, the paper is stable and effectively avoid the shaft phenomenon.

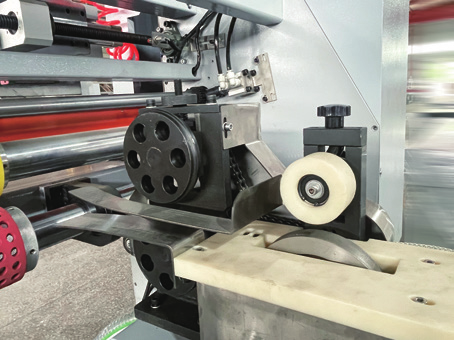

Creasing Part
- The patented design with active line pressing device to ensure stability, good forming effect and smooth packaging.
Feeding Part
- Adopts synchronous belt drive to avoid the phenomenon of cold start skid and ensure the smooth transmission of paper.
- Reinforced four-axis transmission to ensure that the machine operation, transportation process is stable, no deformation.

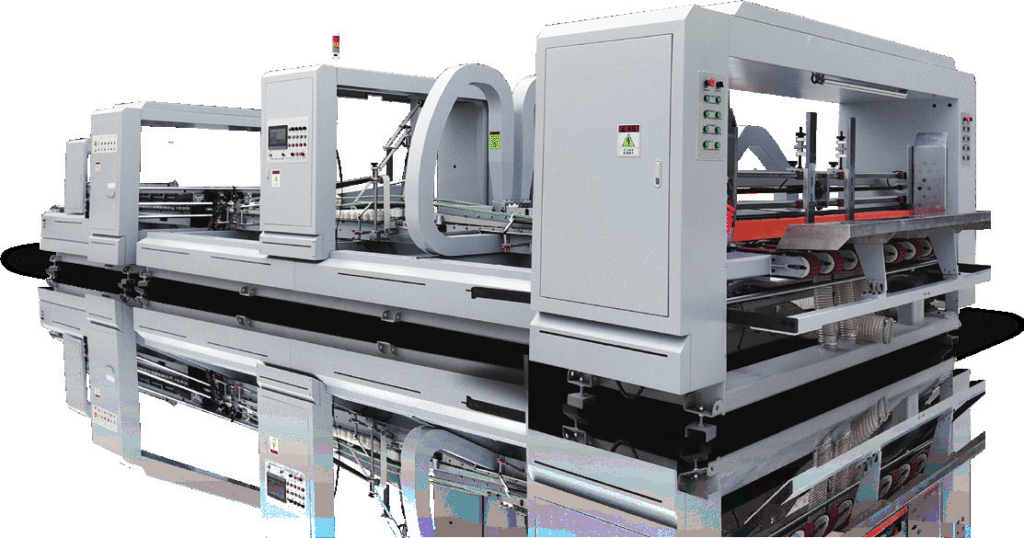

Flap Part
- Reciprocating straight line beat correction, high accuracy, stable operation.
- The forward-leaning arched beam is conducive to carton connection and transmission.
- Sunken belt design greatly strengthens the molding accuracy and smoothness of the carton.

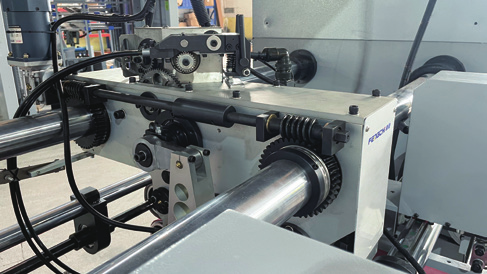

Stitching Part
- The swing stitching head ensures low power consumption, faster speed, and greater stability, enhancing nail box quality.
- Integrated design guarantees precise distance control, while simplifying installation, maintenance, and operation.
- Customized alloy material ensures the blade with stands 90 million cycles wear-free.
- Seven-series aluminum alloy exhibits superior heat dissipation and mechanical properties compared to standard materials.
Why Partner with FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Patent Portfolio
Over 50 invention and utility model patents demonstrating our commitment to innovation.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Hear from industry leaders who have transformed their production with our automatic folder gluer and stitchers
“We upgraded to this machine because we needed faster turnaround and less manual adjustment. The 3–5 minute job changeover has made a real difference on busy days, and the full computer control makes the whole line much easier for our operators to manage. It has helped us keep output stable without adding complexity.”
“What impressed us most is the flexibility. Being able to switch between folding, gluing, stitching, or combined operations on one platform gives us much better production planning. The machine feels designed for real factory use, not just lab performance, and the smart monitoring functions help us avoid unnecessary stoppages.”
“We produce different corrugated carton formats, so the wide sheet-size range and support for 3-ply, 5-ply, and 7-ply board were important to us. The dual-stage positioning has improved alignment, and the stitching quality has been very consistent. It is a strong fit for high-volume packaging work.”
Our Proud Partners
Major Component Brands
Our Service for Your Success
Our service team ensures maximum production reliability and efficiency.
From mechanical and electrical assembly to performance calibration and operator training, our specialists ensure every piece of technology works flawlessly from day one. And with aftermarket support built on responsiveness and expertise, your uptime becomes our priority.
Whether you need parts, maintenance or digital remote support, we are here for you: sales@laminatorfc.com
Frequently Asked Questions
What is a folder gluer and stitcher machine?
A folder gluer and stitcher is an all-in-one packaging machine that automatically folds, glues, and stitches corrugated cardboard boxes. It combines three functions in a single production line: folding the corrugated board into shape, applying adhesive glue, and driving metal stitches (staples) for additional strength. The FENGCHI HD Series can perform folding+gluing, folding+stitching, or all three operations simultaneously.
What types of corrugated board can the HD Series process?
The HD Series handles A, B, C, and AB flute corrugated board, as well as 3-ply, 5-ply, and 7-ply sheets. The minimum sheet size is 760 × 300mm (applicable to HD-2800 and HD-2800 Ultra). This broad compatibility means you can run nearly all common box styles — from lightweight retail cartons to heavy-duty industrial containers — on a single machine.
How long does it take to change between jobs?
Job changeover takes only 3-5 minutes. The order memorizing function stores your previous job parameters, allowing the machine to recall settings instantly. On the HD-2800 Ultra and HD-3200, full servo control enables digital adjustment of all folding axes, pressure settings, and positioning — no manual wrenching required. This dramatically reduces downtime during batch switches and enables economical short-run production.
Can the machine switch between gluing and stitching?
Yes. It supports one-key conversion between stitching and gluing functions, and can also perform both together.
Why is automation important in corrugated box production?
Automation helps improve speed, reduce labor costs, maintain stable quality, and make production more efficient overall.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
