GW Series Flute
Laminator

High-speed flute laminator for corrugated packaging.

Up to 22,000 sheets/hour. Laminating Accuracy: ±1.0 mm

GW Series Flute
Laminator

High-speed flute laminator for corrugated and cardboard packaging.

Overview

Fengchi Printing Machinery is a leading global manufacturer of high-speed flute laminating machines for the printing and packaging industry. Our GW series high-speed flute laminators achieve speeds up to 22,000 sheets per hour, making them the ideal choice for high-volume manufacturers of color corrugated boxes and folding cartons worldwide.
We provide comprehensive turnkey solutions encompassing consultation, procurement, installation, commissioning, training, service, and after-sales support.

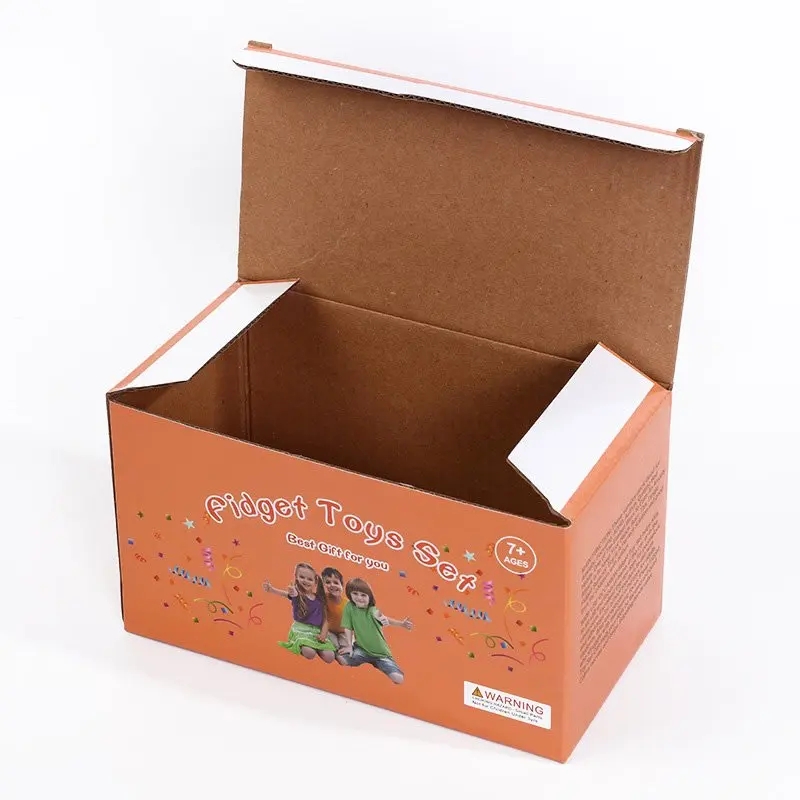

Example of End Product

Case Studies

GW-1450LP Flute Laminator

Spanish Client Case Study

Mexico Customer

Mexican Client Case Study

Customer Workshop Photo

Australian Client Case Study

Trusted by Thousands of Customers and Agents

GW Series — High-Speed Laminator Machine

The GW Series Flute Laminator is a high-speed, precision machine built for packaging manufacturers and converters requiring reliable, high-volume production.

Key Benefits:

  • Stable High-Speed Opertation : 16,000 sheets/hour(165m/min); Maximum speed 22,000 sheets/hour(175m/min).

  • Job Switching: Quick job-change in 3 minutes, higher production efficiency.

  • Consistent Quality: Precision registration ensures accurate, repeatable results.

  • Full Servo Control: Bus control system ensures high-speed, stable lamination with ±1.0mm accuracy.

  • Durable Construction: Heavy-duty frame and components for long life and low maintenance.

When looking for a partner who can offer efficient laminating solutions for your corrugated board production, Fengchi is your choice!

High Speed Flute Laminators We Offer

At Fengchi Printing Machinery, we offer a wide range of high-speed flute laminators to meet your production needs.

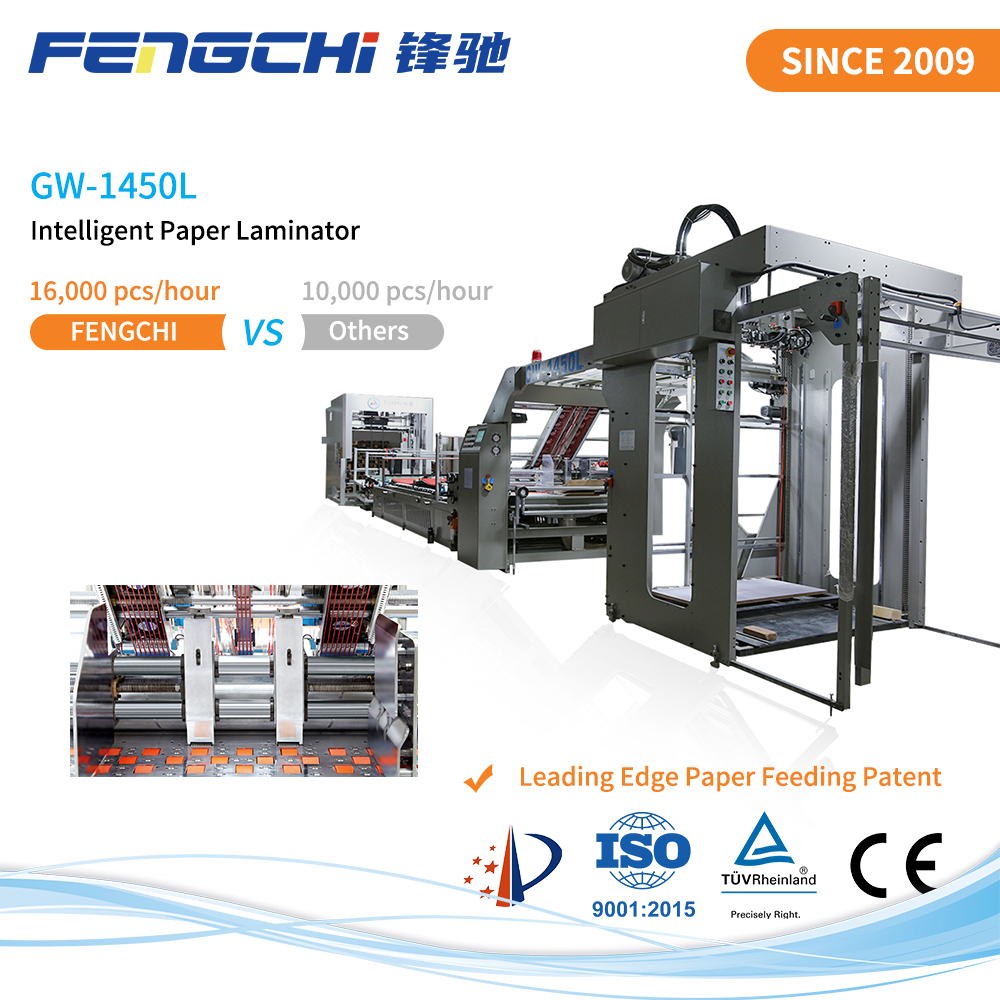

GW-1450L High-Speed Flute Laminator

GW-1450L Flute Laminator

Model: GW-1450L
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 16300mm * 2400mm * 2550mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Video conference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available

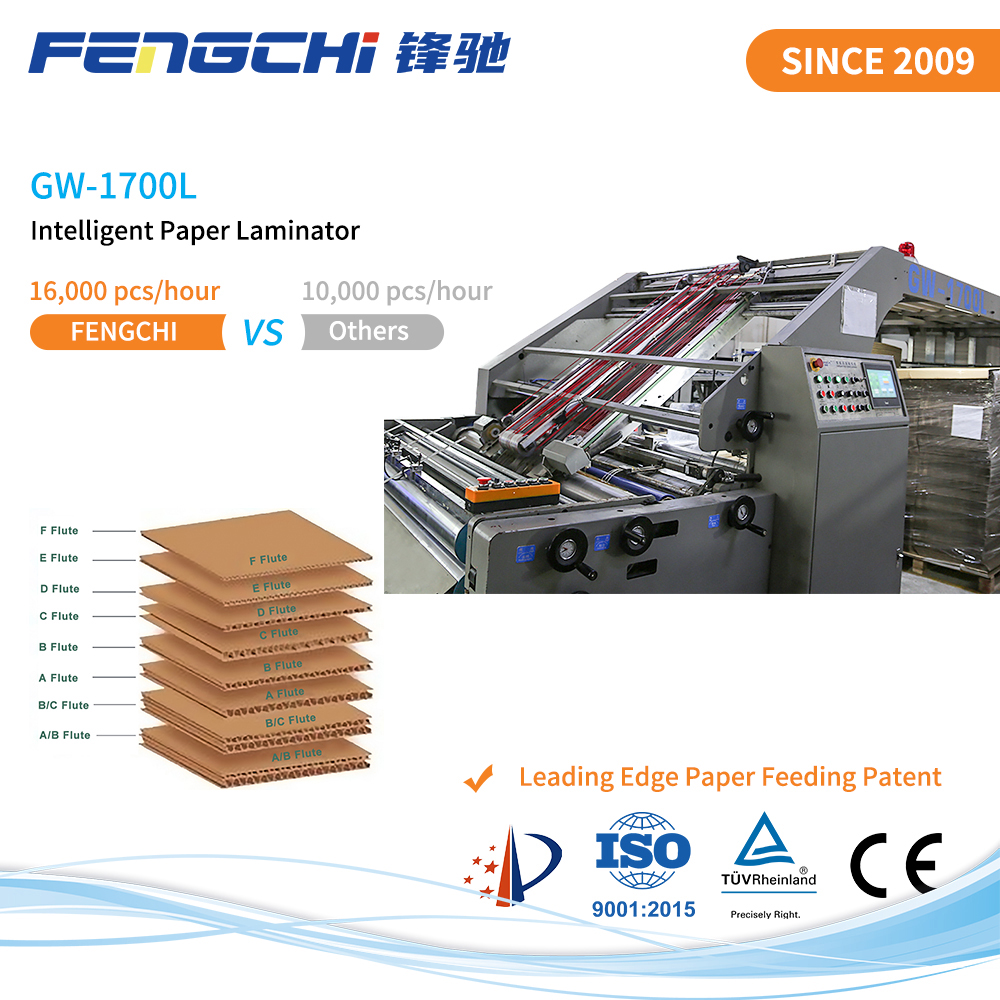

GW-1700L High-Speed Flute Laminator

GW-1700L Flute Laminator

Model: GW-1700L
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 17300mm * 2400mm * 2650mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available

GW-2200L High-Speed Flute Laminator

GW-2200L​ Flute Laminator

Model: GW-2200L
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 18500mm * 3050mm * 2880mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available

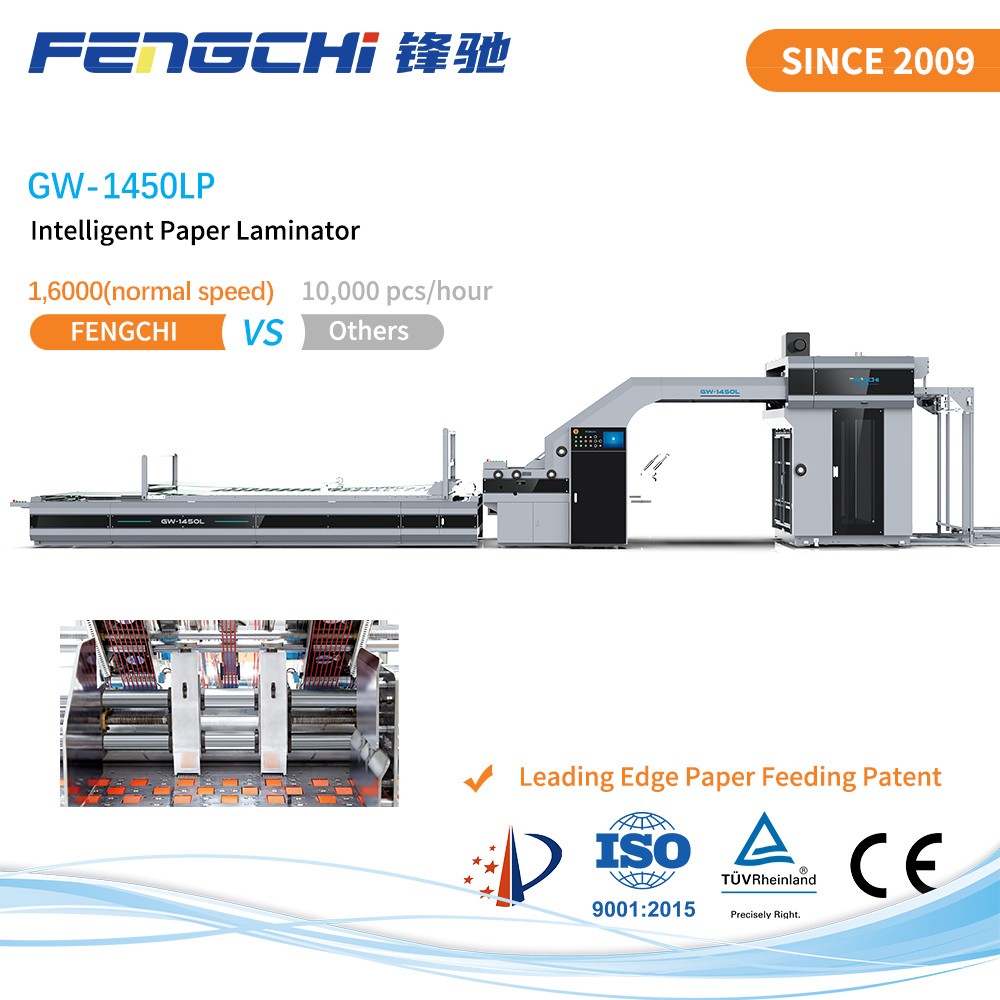

GW-1450LP High-Speed Flute Laminator

GW-1450LP​ Flute Laminator

Model: GW-1450LP
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

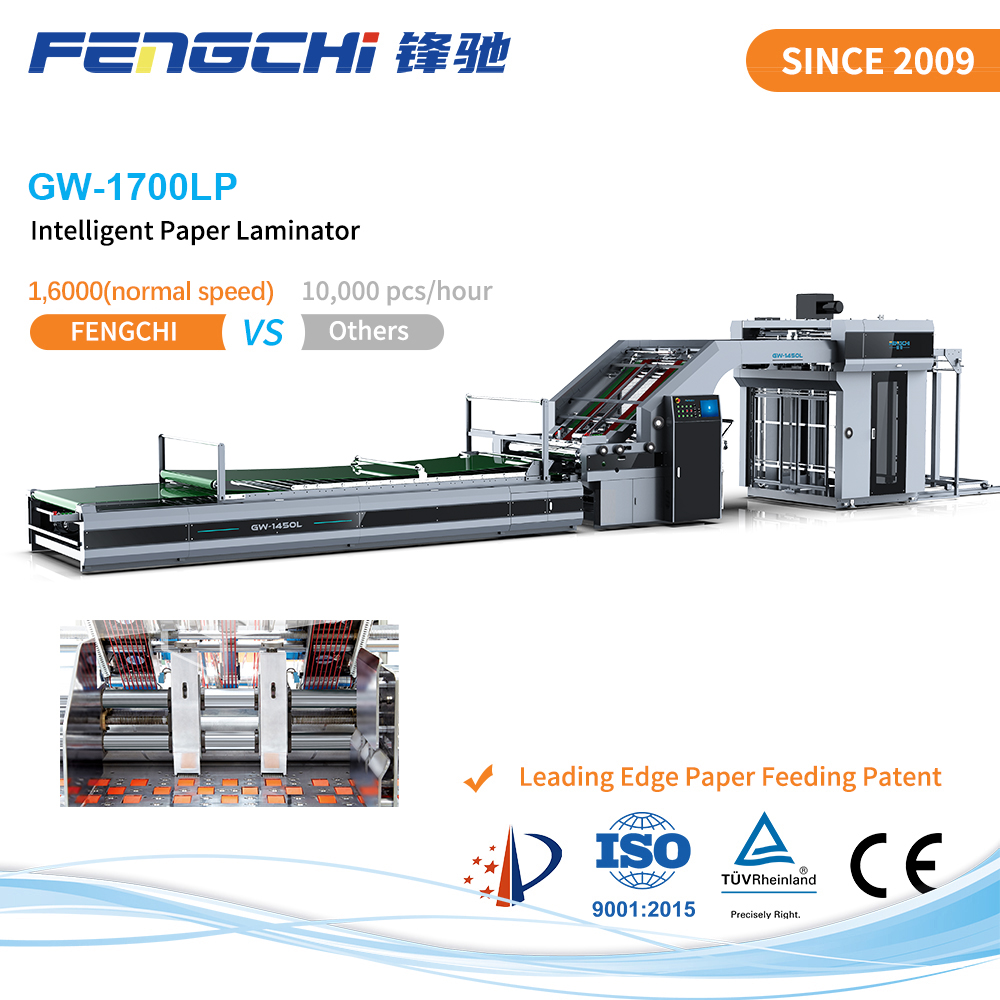

GW-1700LP High-Speed Flute Laminator

GW-1700LP​ Flute Laminator

Model: GW-1700LP
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

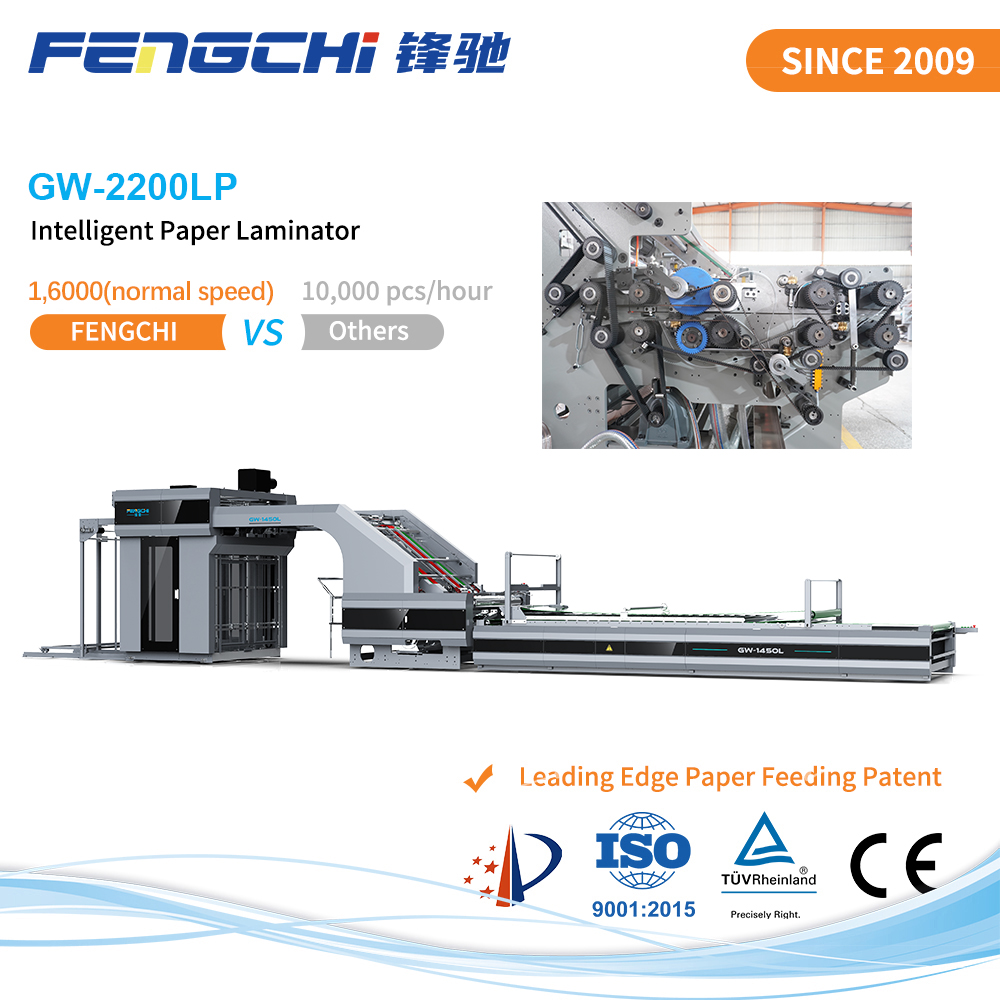

GW-2200LP High-Speed Flute Laminator

GW-2200L​P Flute Laminator

Model: GW-2200LP
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

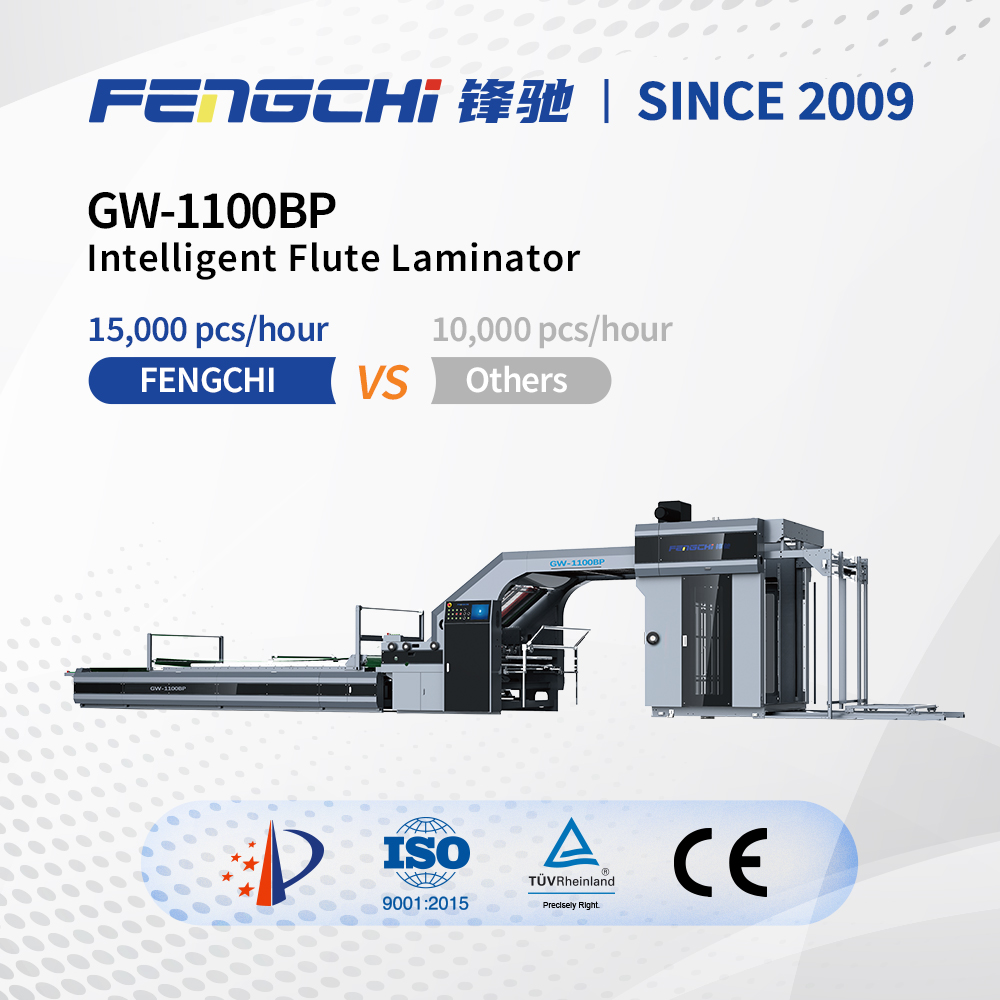

GW-1100BP Intelligent Flute Laminator

GW-1100BP Flute Laminator

Model: GW-1100BP
Membrane Material: Paper
Performance: Anticorrosive
Max Speed: 15,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 13600mm * 2000mm * 2550mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Video conference Remote
Warranty: 1 Year
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available

GW-1450BP High-speed Flute Laminator

GW-1450BP​ Flute Laminator

Model: GW-1450BP​
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

GW-1700BP High-speed Flute Laminator

GW-1700BP​ Flute Laminator

Model: GW-1700BP​
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

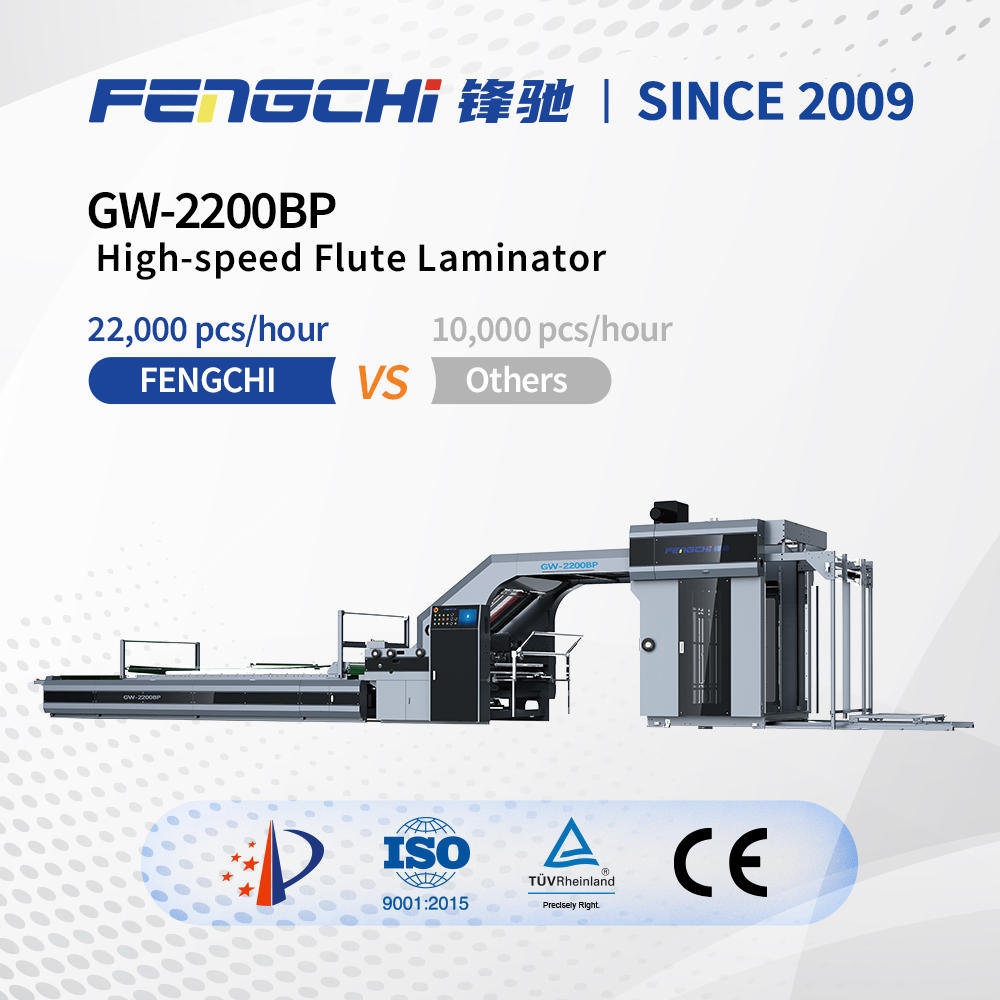

GW-2200BP High-speed Flute Laminator

GW-2200B​P Flute Laminator

Model: GW-2200B​P
Automatic Grade: Automatic
Membrane Material: Paper
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Advantages: Low Failure Rate, High Efficiency, Long Life
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year

Product Highlights

Full servo high speed flute laminator

0

max speed 22,000sheets/hour, stable high speed 16,000sheets/hour for 24hours/day running

0 %

Power consumptionabout 8KW/h, saving about 20%of power

0 %

Digital intelligent design, automatic glue adjustment, pressure adjustment, automatic lubrication for bearing, the technical requirements for equipment operators reduced by 80%

0 %

Enlarged 150mm diameter stainless steel roller, laser engraved anilox, glue apply evenly, fine glue line, no glue-splash, glue used about18g/m2, saving 30% of the glue

± 0

Full servo bus control systems, high-speed and stable laminating with the accuracy ±1.0mm

0 %

Reserved 35% margin of servo motor and drive loading, prolong life cycle over 15 years, ensure the lamination accuracy unchanged

Product Gallery

PU Bottom Feeding Wheel
PU bottom feeding wheel
Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.
Automatic Lubrication of Bearings
Automatic lubrication of bearings
Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.

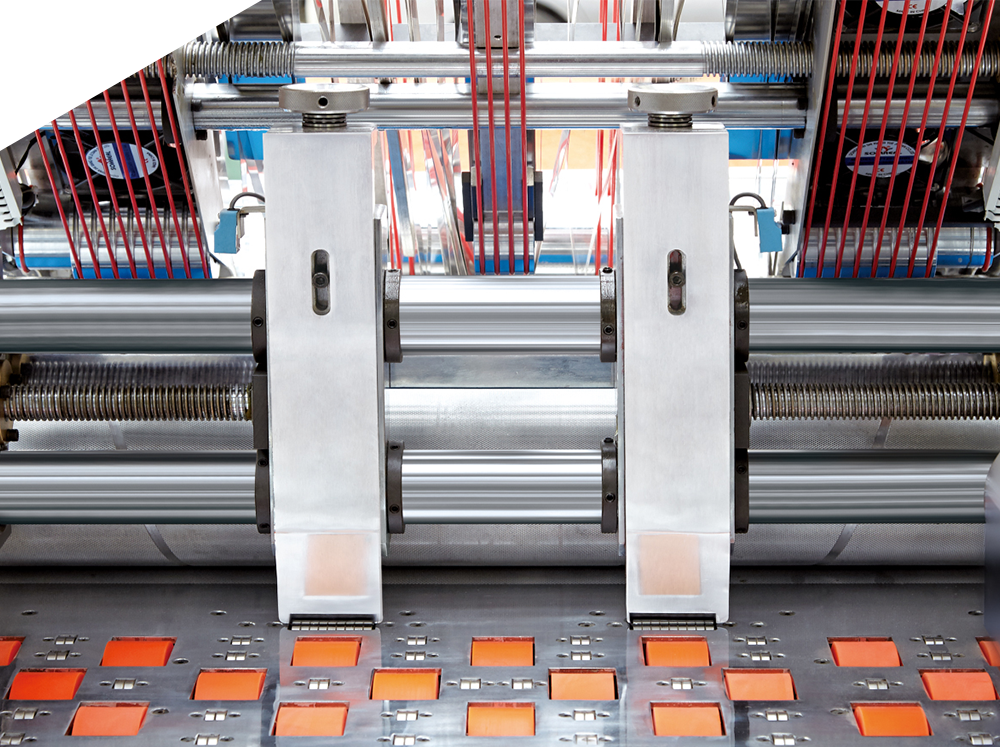

Leading-edge Feed System
Self-developed leading-edge feed system specially for deformed, warped corrugated papers.
Enlarged Glue Roller
Enlarged glue roller
Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.
One-button Operation
One-button operation
Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.
Servo control lifting pile plate
Servo control lifting pile plate
High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.
Dual-bearing Structure
Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
Pre-stacking system
Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
Shaft-less high speed feeder
Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.
Paper Aligning System
laminates catalogue pdf
Full-servo tracking system to ensure stability and highprecision.
Leading-edge Feed System
Self-developed leading-edge feed system specially for deformed,warped corrugated papers.

Technical Information

Leading edge feeder version:

Model GW-1450L GW-1450LP GW-1700L GW-1700LP GW-2200L GW-2200LP
Max. paper size (W x L) 1450mm * 1450mm 1700mm * 1650mm 2200mm * 2100mm
Min. paper size (W x L) 360mm * 360mm 360mm * 360mm 450mm * 380mm
Bottom Paper Sheet Thickness F flute-10mm
Upper Paper Sheet Thickness (W*L) 120 g-700 g
Max. Working Speed 22,000 Sheets/Hour (175 M/Min)
Laminating Accuracy (W*L) ±1.0mm (Standard Sheet Paper)
Applicable Glue Resin adhesive, starch glue and etc
(PH6~8 will be suitable)
Power Supply 380VAC/3P
Power 26KW 30KW 32KW
Applicable Corrugated Board A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range
Machine weight 8000KG 8500KG 9000KG
Overall dimension (L*W*H) 15700mm * 2400mm * 2550mm 16300mm * 2650mm * 2550mm 18500mm * 3050mm* 2880mm

* This is the current configuration. It may be updated as technology evolves.

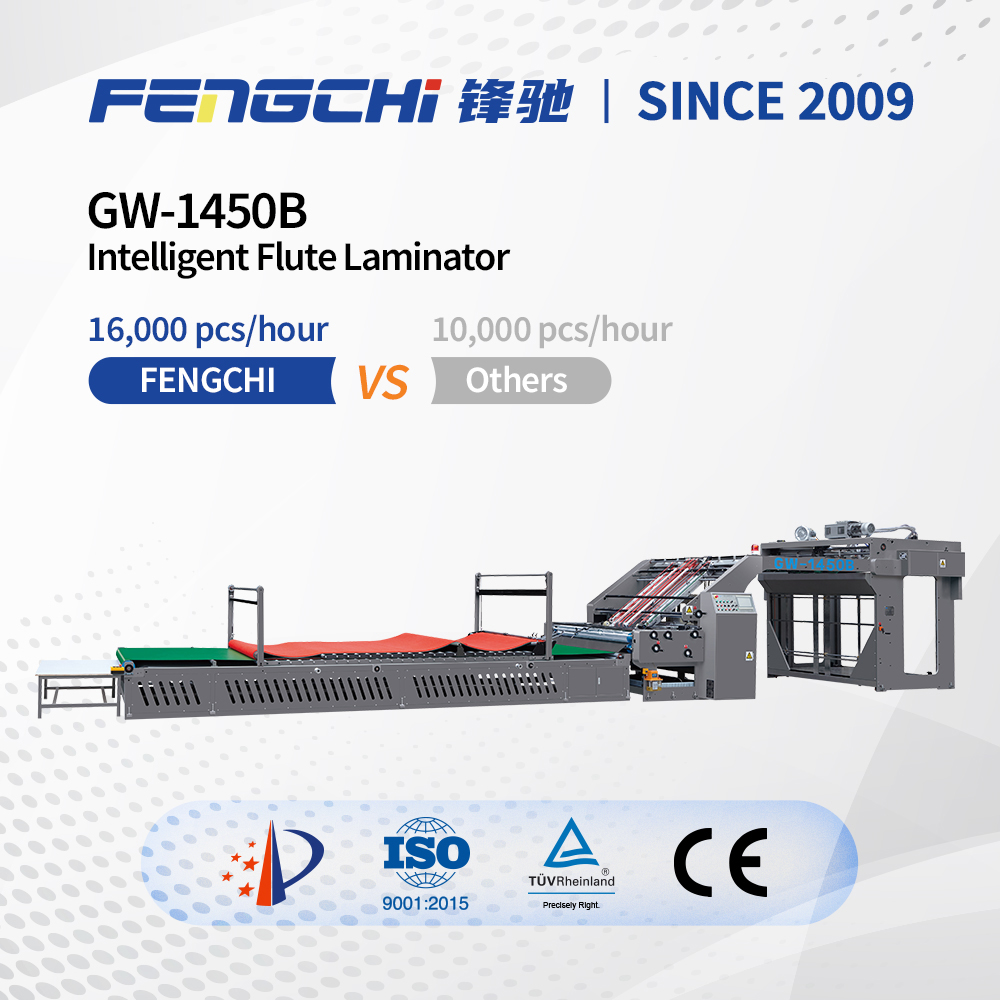

Technical Information

Belt feeder version:

Model GW-1450B GW-1450BP GW-1700B GW-1700BP GW-2200B GW-2200BP
Max. paper size (W x L) 1450mm * 1450mm 1700mm * 1650mm 2200mm * 2100mm
Min. paper size (W x L) 360mm * 360mm 360mm * 360mm 450mm * 380mm
Bottom Paper Sheet Thickness 300gsm - 10mm
Upper Paper Sheet Thickness (W*L) 120 g-700 g
Max. Working Speed 22,000 Sheets/Hour (175 M/Min)
Laminating Accuracy (W*L) ±1.0mm (Standard Sheet Paper)
Applicable Glue Resin adhesive, starch glue and etc
(PH6~8 will be suitable)
Power Supply 380VAC/3P
Power 26KW 30KW 32KW
Applicable Corrugated Board Cardboard above 300gsm, and A, B, C, E, F, 3ply, 5ply corrugated board
Machine weight 8000KG 8500KG 9000KG
Overall dimension (L*W*H) 15700mm * 2400mm * 2550mm 16300mm * 2650mm * 2550mm 18500mm * 3050mm* 2880mm

* This is the current configuration. It may be updated as technology evolves.

Why Choose Fengchi?

Fengchi Printing Machinery is committed to excellence with more than 15 years of experience in the printing and packaging industry. The benefits of choosing our equipment include:

Custom Solutions

Our post-press equipment is the ideal solution for completing your objectives and meeting your customers’ expectations. Our team of world-class engineers will work with you through the entire process of building a better post-press equipment that will fit your business.

High Production Capacity

The power of automation can help to reduce your labor costs while boosting your efficiency and productivity. Fengchi automatic high-speed flute laminator with a maximum production speed of 22,000 sheets/hour for efficient and reliable corrugated board lamination.

Quality Assurance

We implement strict quality control measures to guarantee the reliability and durability of our products. Fengchi post-press machines are the perfect choice for precision and speed in the production of corrugated and folding cartons.

Improving Efficiency & Quality

Fengchi automatic flute laminating machine delivers efficiency and precision for high productivity corrugated board laminating tasks.

Have a project, need a helping hand?

What do we do

Why choose us to cooperate?
1. “FENGCHI” is well-known brand and paper flute laminator master in China since 2009, focus on solving the manufacturing process of over-gluing and laminating & stacking after the post-printing of color cardboard & corrugated cartons.

2. Strong R&D team by 25 senior engineers over 30 years experience in printing industry. With 30 patents to ensure product more stable, more efficient and durable.

3. After-sale service and technical assistance: company provides after sales service and technical assistance as per customers’ requirement and needs with response within 24 hours.

4.Cost saving: Full servo digital operating system greatly reduce operator level(normally two primary operator) with manpower saving, 150mm roller with double bearing and auto refueling system make equipment durable and free maintenance. China highest laminating speed at 16,000pcs/hour.

Yes, we are paper Laminator master from China over 13 years, specialize in paper flute laminator and paper pile turning machines.

We produce machines in bacth normally.  So most models we have some in stock, please check with us before ordering.

Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.

Yes, we have 100% functional testing and pilot run before delivery to ensure product integrity. All products are certificed by CE.


Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.

Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.

Usually, we pack the machine in a container with a plastic bag with desiccants, then with strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into case.

Yes, we can customize the production machine according to your requirements.

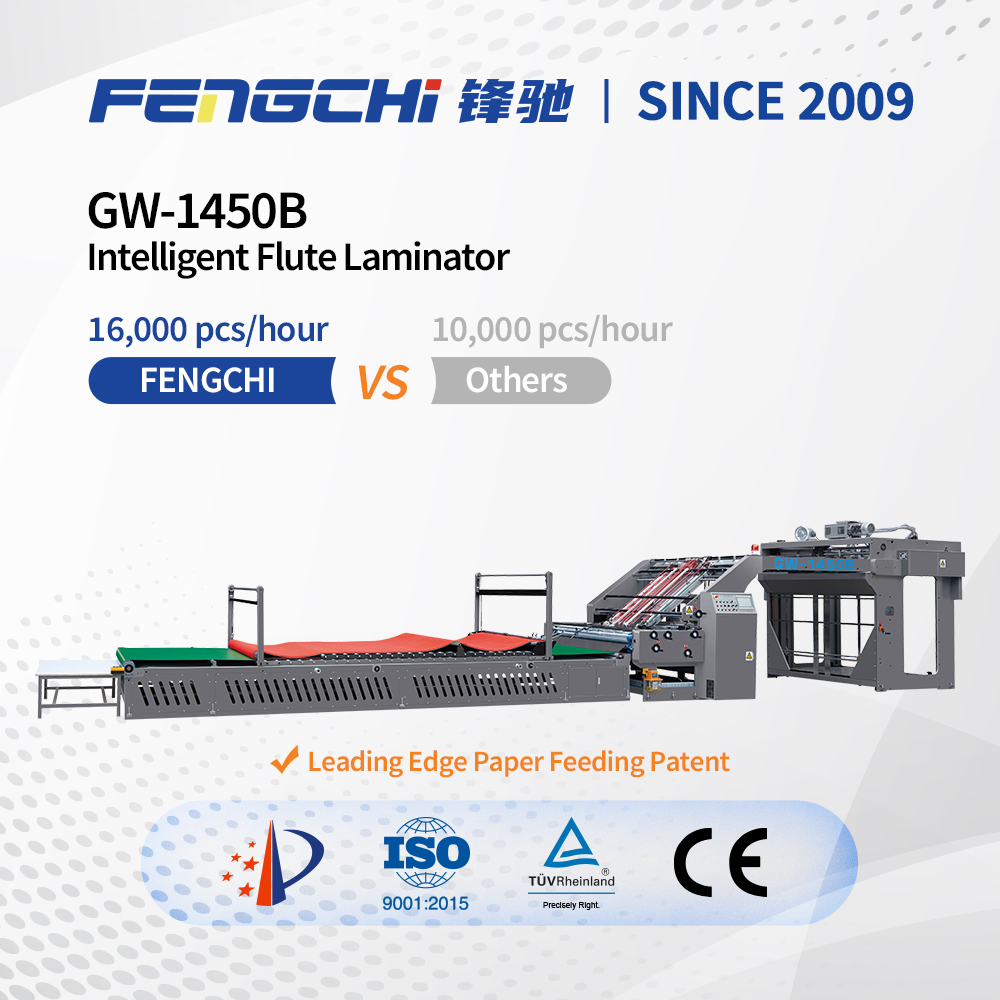

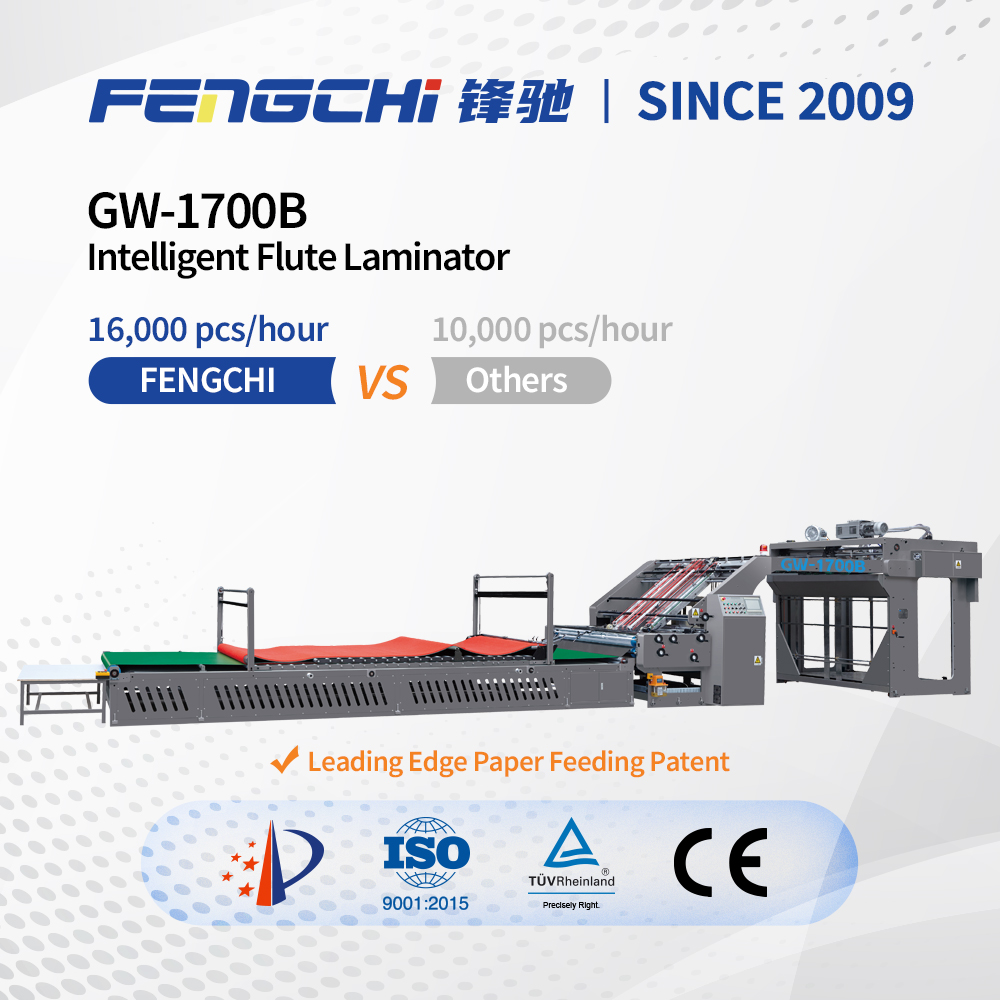

Interested in a high-speed flute laminator?

Contact Form

WhatsApp

+86 13316603290

Email

sales@laminatorfc.com

Phone

+86-13316603290
Scroll to Top

Request Your Quote

We are a a leading global manufacturer of post-press equipment, offering high-speed flute laminators, folder gluers, folder gluer stitchers, spot UV coating machines, and window patchers. Please fill the form below and we will get in touch.

Thank you for your inquiry.

Seraphinite AcceleratorOptimized by Seraphinite Accelerator
Turns on site high speed to be attractive for people and search engines.
