TY Series Spot UV
Coating Machine
Adds a precise, high-glossy finish to specific parts of your print.
Up to 6500-8000 sheets/hour. Coating Accuracy: ±0.15mm
TY Series Spot UV
Coating Machine
Up to 6500-8000 sheets/hour. Coating Accuracy: ±0.15mm
Machine Overview

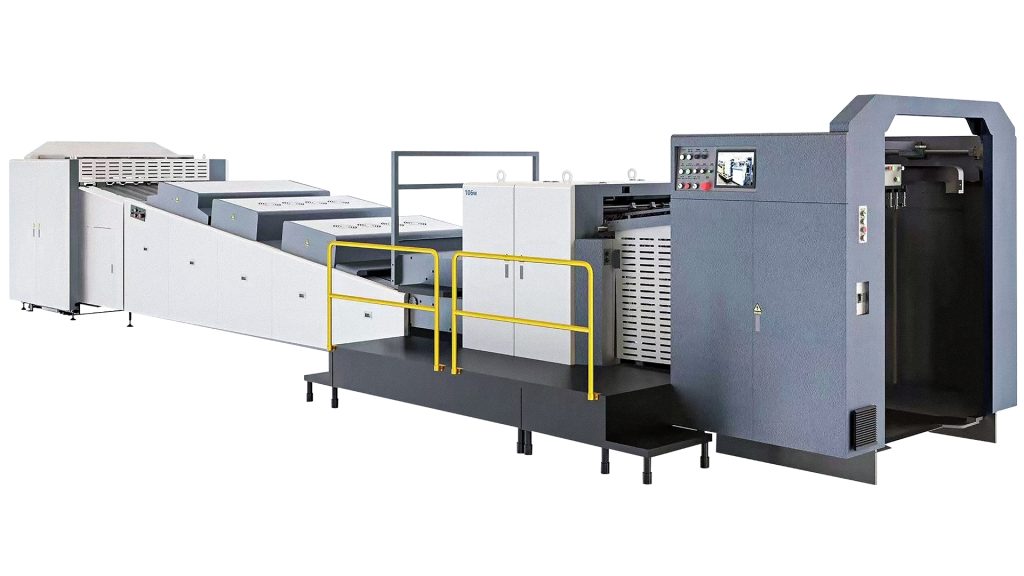

Automatic Spot UV Coating Machine
Fengchi is a leading global manufacturer of automatic spot UV coating machines.
TY Series Automatic Spot UV Coating Machine adds a precise, high-glossy finish to specific parts of your print, like logos, images or text, creating a strong contrast with matte or uncoated areas.
We guarantee our total support, before, during and after sale and installation.
Key Benefits:
- Speeds up to 8,000 sheets per hour
- Coating Registration Accuracy: ±0.15mm
- Coating Layer Thickness: 0.15mm ~0.60mm
- Full Automation: One-Key Operation
- Quick Setup: 2-3 Minutes
Contact our experts to discuss your project or get a quote.
Customer Cases
Technical Data
| Model | TY-1060W | TY-1060W-L | TY-1460W | TY-1650W |
|---|---|---|---|---|
| Max.Sheet Size(L * W) | 750mm×1060mm | 1100mm×1460mm | 1300mm×1650mm | |
| Min.Sheet Size (L * W) | 310mm×406mm | 350mm×460mm | 350mm×460mm | |
| Max.Coating Area (L * W) | 730mm×1040mm | 1090mm×1440mm | 1290mm×1640mm | |
| Coating Registration Accuracy | ±0.15mm | |||
| Coating Layer Thickness | 0.15mm ~0.60mm | |||
| Sheet Thickness | 80 ~ 500 gsm | 105 ~ 600 gsm | 120 ~600 gsm | |
| Up to | 6500-8000 sheets/hour | Up to 5-6000 sheets/hour | Up to 4-5000 sheets/hour | |
| Power Required | 40kw (W water-based) | 44kw (E oil-based) | 68kw/Water-based: oil-based total power | 76kw/Water-based: oil-based total power |
| Machine Dimension | 10625mm×2260mm×2100mm | 13225mm×2260mm×2100mm | 11800mm×3400mm×2300 mm | 12840mm×3400mm×2360 mm |
| Machine Weight | 7600kg | 8200kg | 10200kg | 12000kg |
* This is the current configuration. It may be updated as technology evolves.
Product Gallery

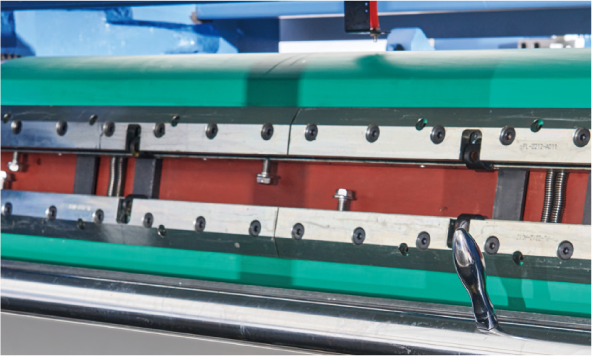

Multi-functional Coating Oil Head
- Dual-roller differential-speed coating head ensures flat, uniform, and glossy oil film with precision. Optional ceramic anilox roller with chambered doctor blade configuration.

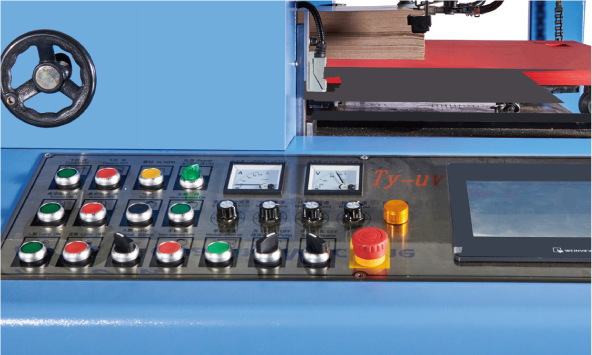

Electrical Control System
- Full-machine variable frequency drive (VFD) with PLC programmable controller ensures high stability and low failure rate.

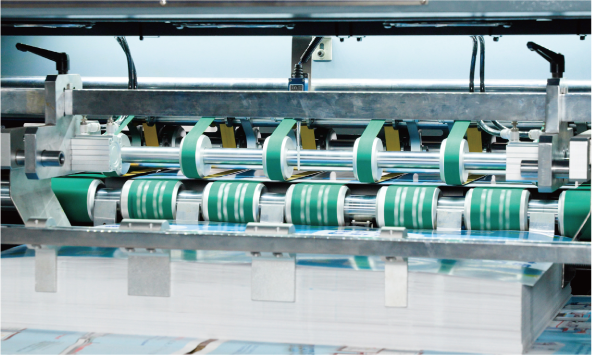

Automatic Paper Collector
- Integrated auto-loading platform with maximum stack height of 1,200mm.
- Photoelectric pneumatic dual-side alignment system for precise stacking.
- Thin-paper guiding device guarantees smooth and orderly sheet delivery.

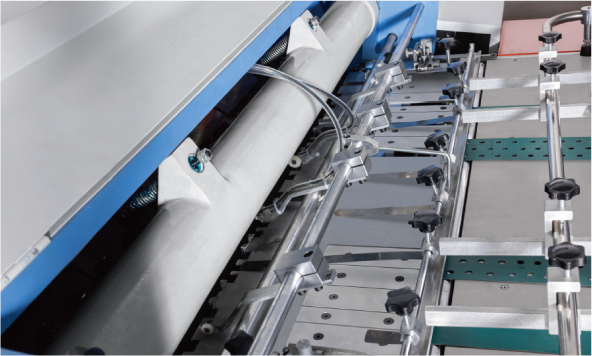

Paper Feeding and Printing Unit
- Swing-arm sheet transfer mechanism supports maximum speed of 8,000 sheets/hour. Impression and coating cylinders undergo precision grinding and dynamic balancing calibration for dimensional accuracy. Quick-mount system for coating cylinder blankets and plate bases, enabling fast plate changes.

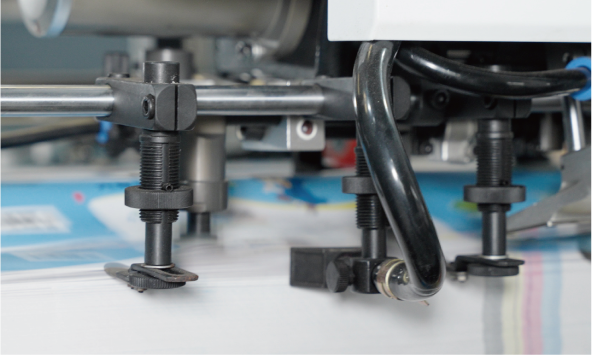

Automatic Paper Feeder
- High-reliability suction heads with linear slide rails ensure fast paper feeding, tightly delivering sheets of all sizes.
- Sensitive electro-mechanical double-sheet detector automatically stops feeding upon detecting multiple sheets.
- Maximum paper stack height: 1,150mm.
- Precision front and side guides (front guide and pull guide) with quick-adjust mechanisms for accurate positioning.

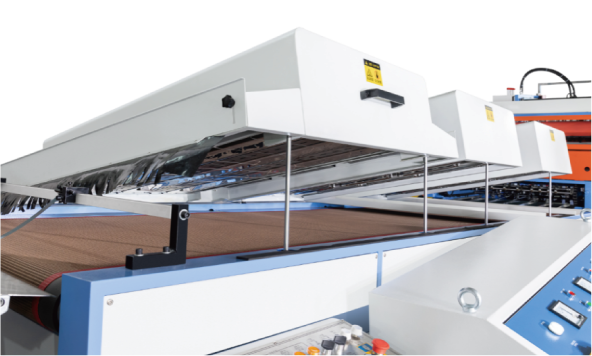

UV Drying and Curing Equipment
- Three UV mercury lamps ensure rapid UV coating curing.
- Teflon mesh conveyor with bottom suction enables quiet, high- speed curing and maintenance ease.
- Full/half-lamp switching and UV leakage protection enhance safety.
- Integrated auto-temperature control, fault trip, and cooling/exhaust systems prevent overheating.
- Dual IR drying groups (12×1kW lamps, staggered layout).
- Auxiliary air-blowing guarantees uniform heat distribution.
