Corrugated Laminating Lines
Increase production capacity, reduce labor costs, and achieve premium laminating quality with a fully automatic servo-driven corrugated laminating production line.
Corrugated Laminating Lines
Increase production capacity, reduce labor costs, and achieve premium laminating quality with a fully automatic servo-driven corrugated laminating production line.
Why GS Series Leads the Industry
Industry-leading technology for maximum productivity
Ultra-High Speed
Up to 17,500 sheets/hour throughput with consistent quality across all speed ranges
Full-servo Control
Full-servo motion control for precise alignment and consistent lamination quality.
Multi-Flute Compatibility
Works on A, B, E, F flutes and multi-ply constructions. Quick changeover minimizes setup time when switching sheet sizes or types.
Quick Changeover
Quick setup in 2–5 minutes for different batch sizes; automatic order memory for fast job changeovers.
High Accuracy
±1.0mm registration control with full-servo motion minimizes material waste and ensures consistent quality.
Remote Monitoring
Real-time data collection and remote diagnostics for optimal uptime
Choose Your Model
Choose the right model for your production capacity
GS-1450LP Corrugated Laminating Line
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1700LP Corrugated Laminating Line
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced lead-edge feeding.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.

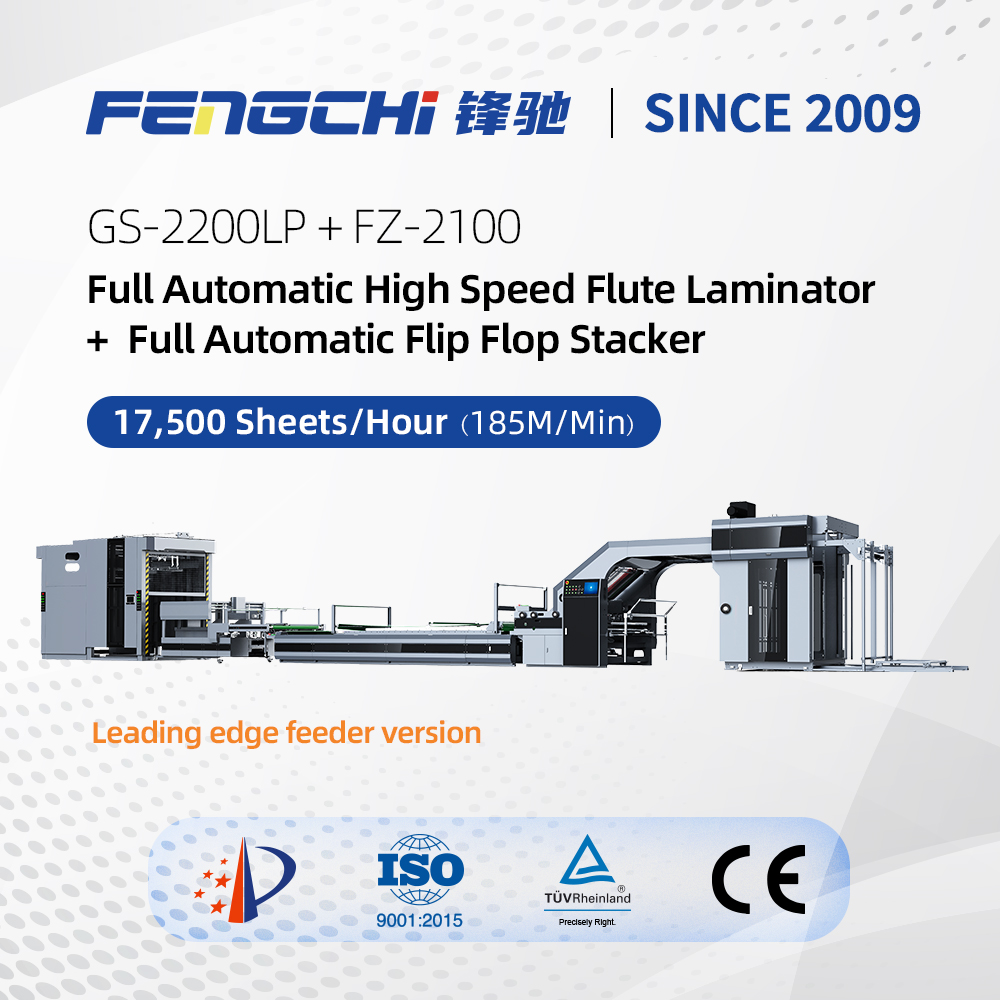

GS-2200LP Corrugated Laminating Line
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced lead-edge feeding.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1100BP Corrugated Laminating Line
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1450BP Corrugated Laminating Line
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1700BP Corrugated Laminating Line
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.

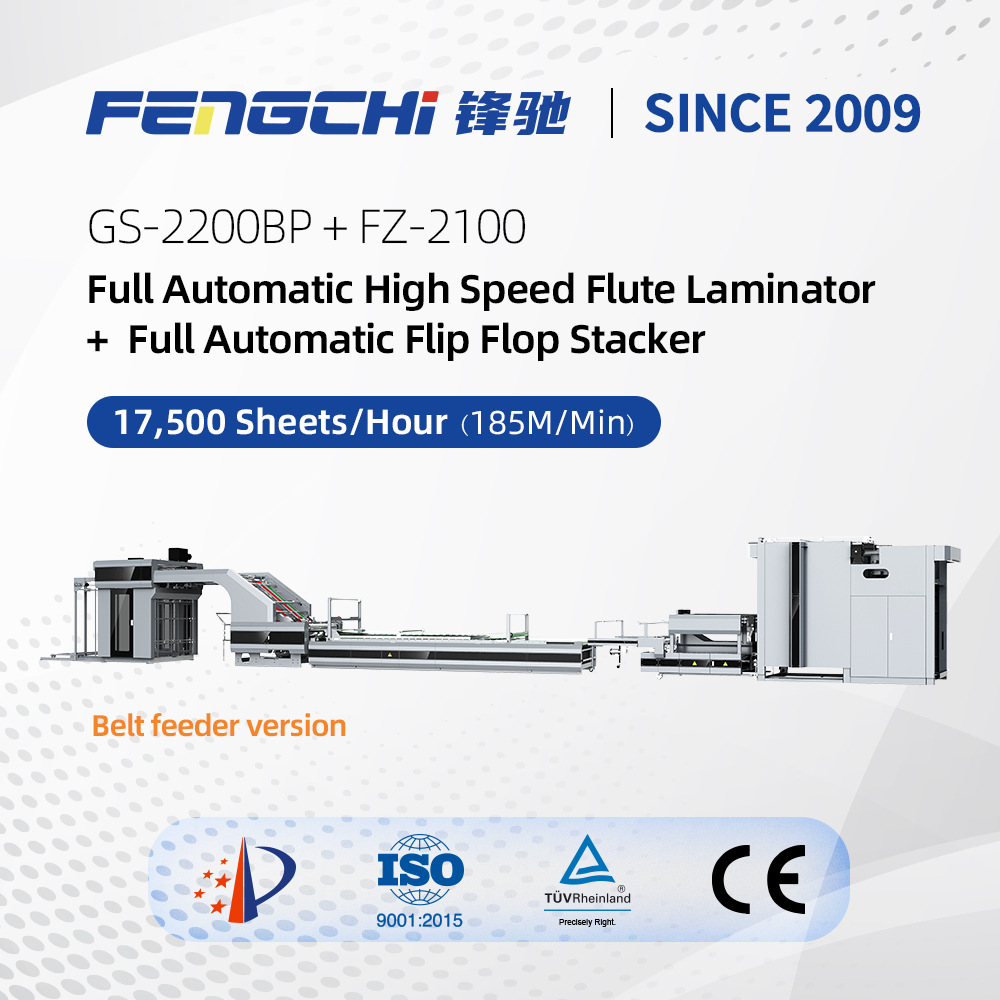

GS-2200BP Corrugated Laminating Line
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
Flute Laminators Technical Specifications
Leading Edge Feeder
| Parameter / Model | GS-1450LP | GS-1700LP | GS-2200LP |
|---|---|---|---|
| Max Sheet Size (W × L) | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size (W × L) | 360 × 350 mm | ||
| Bottom Paper Sheet Thickness | F flute-10mm | ||
| Upper Paper Sheet Thickness | 120-700 g | ||
| Max Speed | 17,500 sheets/hr | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Machine Weight | 8,000 kg | 8,500 kg | 9,000 kg |
| Machine Dimensions (L × W × H) | 15,700 × 2,400 × 2,550 mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | ||
| Power | 26 kW | 30 kW | 32 kW |
| Applicable Paper | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Belt Feeder
| Parameter / Model | GS-1100BP | GS-1450BP | GS-1700BP | GS-2200BP |
|---|---|---|---|---|
| Max Sheet Size (W × L) | 1100 × 1200 mm | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size (W × L) | 360 × 350 mm | |||
| Bottom Paper Sheet Thickness | 0.3mm–7mm | 300gsm - 10mm | ||
| Upper Paper Sheet Thickness | 120-700 g | |||
| Max Speed | 17,500 sheets/hr | |||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | |||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | |||
| Machine Weight | 7,000 kg | 8,000 kg | 8,500 kg | 9,000 kg |
| Machine Dimensions (L × W × H) | 13,600 × 2,000 × 2,550 mm | 15,700 × 2,400 × 2,550 mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | |||
| Power | 20 kW | 26 kW | 30 kW | 32 kW |
| Bottom Paper Applicable | Double-coated paper above 250 gsm, and A, B, C, E, F, 3ply, 5ply corrugated board | |||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Flip Flop Stackers Technical Specifications
| Parameter / Model | FZ-1450 | FZ-1700 | FZ-2200 |
|---|---|---|---|
| Max Sheet Size (W x L) | 1450 × 1450 mm | 1700 × 1650 mm | 2100 × 1650 mm |
| Min Sheet Size (W x L) | 500 × 380 mm | 500 x 380 mm | 600 × 380 mm |
| Max. Working Speed | 15,000 sheets/hour | 15,000 sheets/hour | 15,000 sheets/hour |
| Machine Weight | 3800 kg | 4000 kg | 5600 kg |
| Dimension (L × W × H) | 6955 × 2432 × 2892 mm | 7555 × 2682 × 2892 mm | 9120 × 2910 × 2892 mm |
| Voltage | 380 VAC/3P | 380 VAC/3P | 380 VAC/3P |
| Power | 12 kW | 12 kW | 14 kW |
| Gas Source | 0.8 MPa > 5.5KW | 0.8 MPa > 5.5KW | 0.8 MPa > 5.5KW |
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Final Product Samples
Why Partner with FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
Our Proud Partners
Major Component Brands
What Our Customers Say
Hear from industry leaders who have transformed their production with our automatic flute laminators
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!”
“We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding. Every delivery meets our high standards, giving us a competitive edge in the market. They are truly a trustworthy partner.”
“If you need to boost your productivity, Fengchi always has a solution for you. Their equipment offers excellent value for money, is of superior quality, and is delivered on time. They pay close attention to detail and continue to provide technical support long after the equipment has been installed.”
Our Service for Your Success
Fengchi Printing Machinery knows that successful installation, training, and support are critical to your operation and achieving the profitability gains you target. This drives our commitment to your success.
Our goal is to provide you with the tools and technical knowledge that your in-house maintenance needs, to be able to fix their own machines.
Our technical support team and parts department work with customers to resolve issues over the phone, but when special care is needed, our team is prepared to make emergency field service visits, to get your plant up and running quickly. Parts, service, and support are handled directly through the Fengchi technical support group.
Frequently Asked Questions
What is the maximum production speed?
The GS Series can achieve speeds up to 17,500 sheets per hour depending on materials and operating conditions.
Can the machine handle different flute types?
Yes. The machine supports a wide range of corrugated board specifications.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Are you a manufacturer?
As a leading global manufacturer of high-speed flute laminators, Fengchi Printing Machinery offers a complete range of automatic flute laminating machines and flip flop stackers.
What’s the warranty period?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
Do you have stock products to sell?
We produce machines in bacth normally. So most models we have some in stock, please check with us before ordering.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
Ready to Scale Your Production?
Tell us your project requirements, and our sales engineers will the best solution!
