High-Speed Flute Laminator
The GS Series combines high-speed output, one-key mode switching, fully automatic precision setup, real-time monitoring, and rugged machine structures to support demanding packaging production lines.
High-speed Flute Laminator
The GS Series combines high-speed output, one-key mode switching, fully automatic precision setup, real-time monitoring, and rugged machine structures to support demanding packaging production lines.
Key Features
Full-servo high-speed automatic flute laminator — engineered for high-throughput corrugated packaging production.
Ultra-High Speed
185 m/min (17,500 sheets/min) · advanced lead‑edge feeding.
One‑Key Mode Switch
Dual system: instant switch between sheet & stream feeding.
Fully Auto-Adjustment
Barcode/order auto‑sets width, length, pressure, glue, gate & stack.
Massive Order Storage
Built-in database with one-touch order search and auto-size recall, drastically cutting setup time for repeat and small-batch orders.
Fully Servo Driven
Servo‑regulated for higher precision, fast response, long‑term stability.
Remote Monitoring
Real‑time machine status, accessible anytime.
Choose Your Model
GS-1450LP Flute Laminator
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced lead-edge feeding.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1700LP Flute Laminator
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced lead-edge feeding.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.

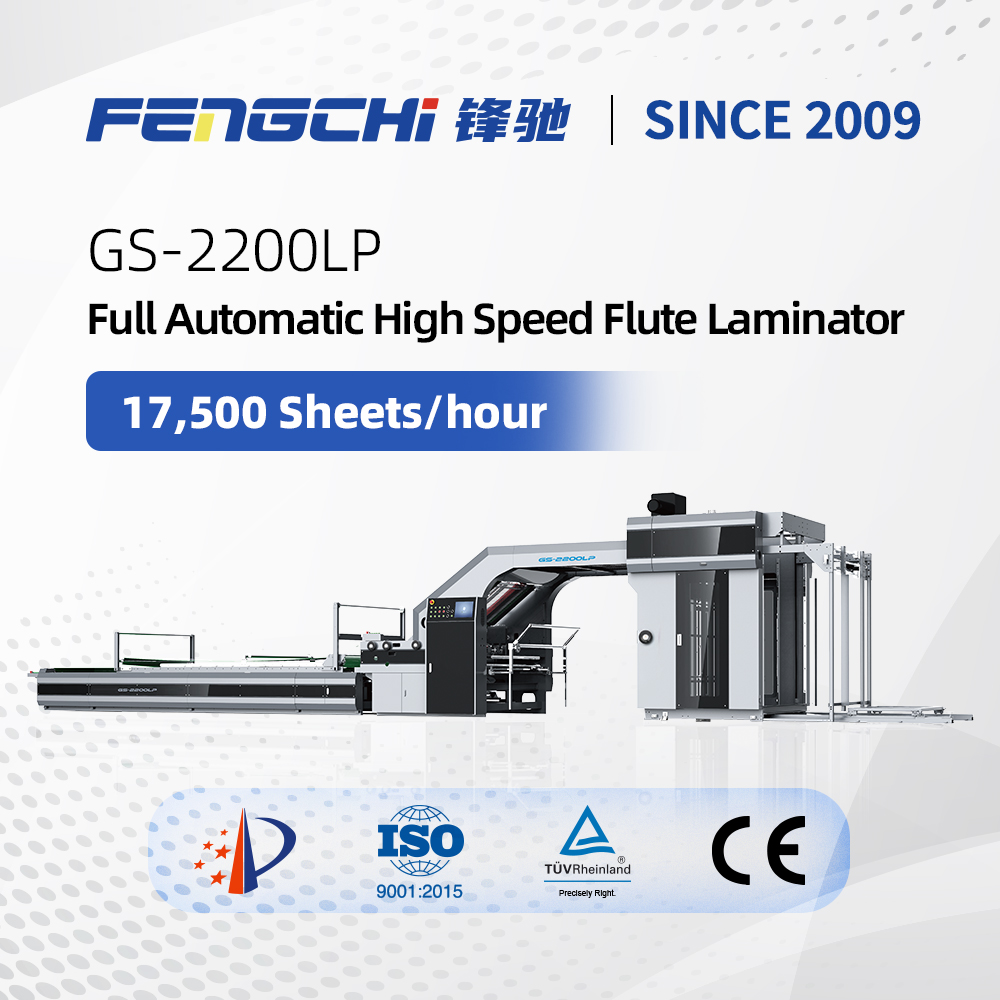

GS-2200LP Flute Laminator
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced lead-edge feeding.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1100BP Flute Laminator
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1450BP Flute Laminator
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-1700BP Flute Laminator
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
GS-2200BP Flute Laminator
PRODUCT FEATURES
- Ultra-High Speed: Up to 185 m/min (17,500 sheets/hour), advanced belt feeder.
- One-Key Mode Switch: Dual system, instant switch between sheet & stream feeding.
- Full Servo Drive: Servo-regulated for higher precision, faster response, long-term stability.
- Smart Stopper Adjustment: Automatic bottom paper gate setup, faster job change.
- Fully Auto-Adjustment: Barcode/order/input auto-sets width, length, wheel pressure, glue amount, gate height, stack height.
- Remote Monitoring: Real-time machine status, accessible anytime.
- Massive Order Storage: Built-in database, one-touch order search, auto-size recall.
Technical Specifications
Leading Edge Feeder Version
| Model | GS-1450LP | GS-1700LP | GS-2200LP |
|---|---|---|---|
| Max Sheet Size | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size | 360 × 350 mm | ||
| Bottom Paper Sheet Thickness | 300gsm - 10mm | ||
| Upper Paper Sheet Thickness | 120g-700g | ||
| Max Speed | 17,500 sheets/hour (185 m/min) | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Pape) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Machine Weight | 8,000 kg | 8,500 kg | 9,000 kg |
| Dimension (Lx W x H) | 15,700 × 2,400 × 2,550mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | ||
| Power | 26kW | 30kW | 32kW |
| Applicable Corrugated Board | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Belt Feeder Version
| Model | GS-1100BP | GS-1450BP | GS-1700BP | GS-2200BP |
|---|---|---|---|---|
| Max Sheet Size | 1100 × 1200 mm | 1450 × 1450 mm | 1700 × 1650 mm | 2200 × 2100 mm |
| Min Sheet Size | 360 × 350 mm | |||
| Bottom Paper Sheet Thickness | 0.3mm–7mm | 300gsm - 10mm | ||
| Upper Paper Sheet Thickness | 120g-700g | |||
| Max Speed | 17,500 sheets/hour (185 m/min) | |||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Pape) | |||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | |||
| Machine Weight | 7,000 kg | 8,000 kg | 8,500 kg | 9,000 kg |
| Dimension (Lx W x H) | 13,600 × 2,000 × 2,550mm | 15,700 × 2,400 × 2,550mm | 16,300 × 2,650 × 2,550 mm | 18,500 × 3,050 × 2,880 mm |
| Voltage | 380 VAC/3P | |||
| Power | 20kW | 26kW | 30kW | 32kW |
| Bottom Paper Applicable | Double-coated paper above 250 gsm, and A, B, C, E, F, 3ply, 5ply corrugated board | |||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Machine Highlights

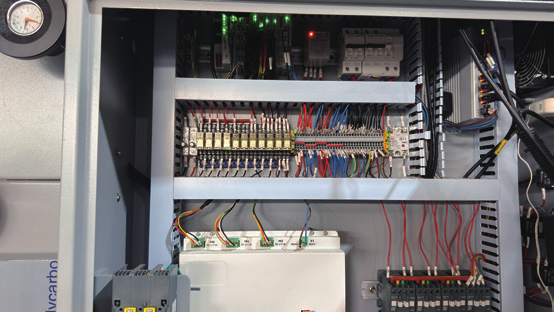

Main Machine
- Bus-controlled system with digital input; 2-3 min auto changeover.
- Auto-adjusts pressure and glue volume, lowering operator skill requirements.
- New jam-clearing function ensures non-stop production.
- Supports local glue stopper installation.
- Anti-clogging design with auto-refill, cleaning, and low-level alarm.

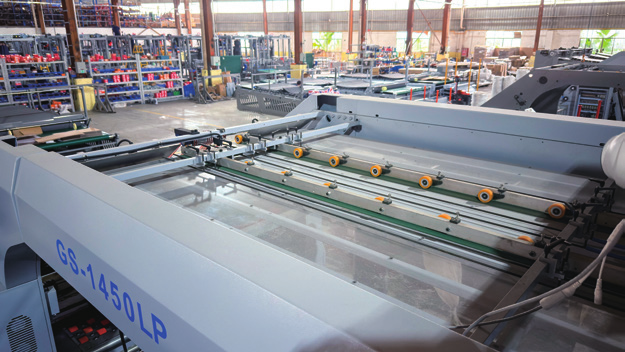

Bridge Crossing
- 100mm wide belt prevents deviation for smoother feeding.
- Switchable to single-sheet mode to prevent misfeeds.

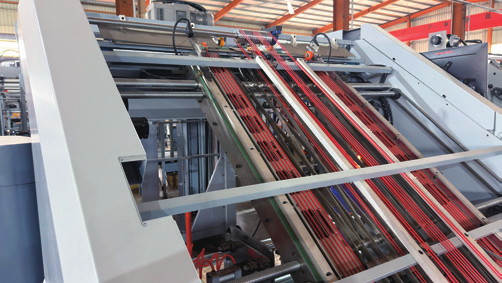

Mobile Frame
- Dedicated drive for enhanced precision and stability.
- Separate L/R adjustment for diverse small-batch orders.

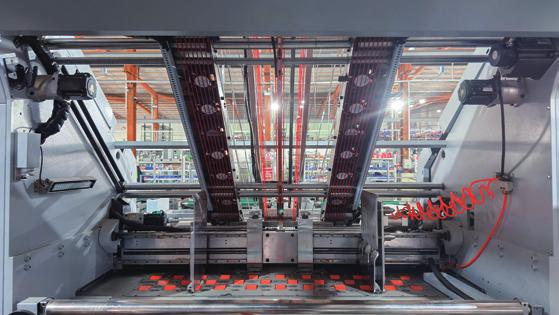

Front Section
- PU bottom feed wheels; 10-year lifespan with zero wear.
- Auto-adjusting support mechanism ensures precise paper entry.
- Enhanced system for thin paper to minimize jams.
- Auto-set height eliminates manual measurement for faster setup.

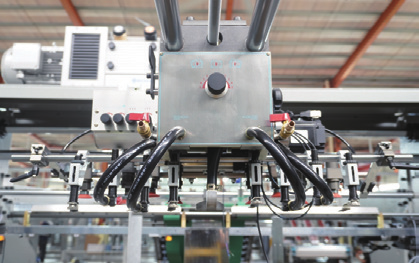

Shaftless High-Speed Feeder
- Shaftless design with auto front/back adjustment.
- Full-stack auto-centering (supports manual or auto push).
- One-key lift with real-time auto pile-height adjustment.

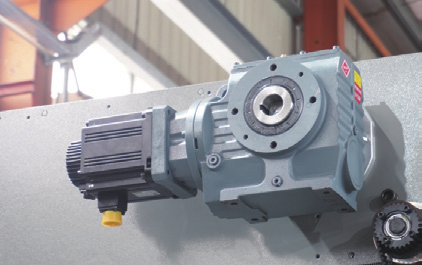

Servo Pile Lift
- Smooth lifting synchronized with offset press for maximum stability.

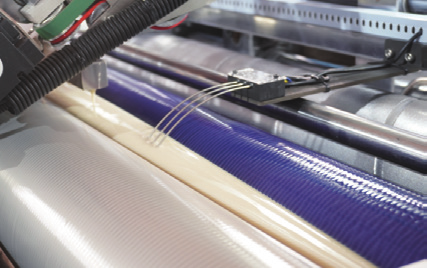

Enlarged Glue Roller
- 150mm stainless steel roller with laser anilox; stable coating at high speeds.

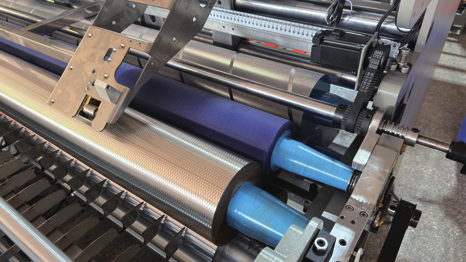

Double Bearing Structure
- Dual-bearing support doubles equipment lifespan and stability.

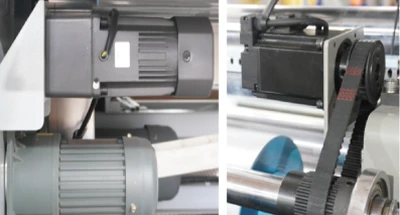

Auto Lubrication
- Smart auto-oiling reduces labor costs and boosts efficiency.

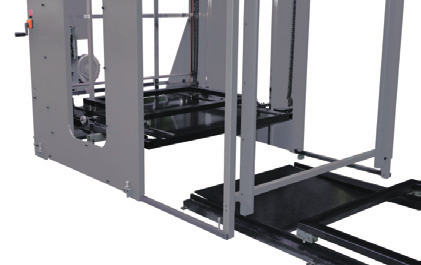

Pre-stacking System
- Full pallet loading reduces downtime and labor.
- Stacking while running for seamless job transitions.
- Supports multi-order stacking to slash setup time for small runs.
Final Product Samples
Why Choose FENGCHI?
If you are looking for a reliable and fully automatic high-speed flute laminator, Fengchi is the right supplier for you.
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
With experience from more than 3,500 successful installations worldwide, our experienced team advises you on the realization of your project. Whether it is a single machine or a complete system.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Hear from industry leaders who have transformed their production with our high-speed automatic flute laminators
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!
Best regards.”
“We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding. Every delivery meets our high standards, giving us a competitive edge in the market. They are truly a trustworthy partner.”
“If you need to boost your productivity, Fengchi always has a solution for you. Their equipment offers excellent value for money, is of superior quality, and is delivered on time. They pay close attention to detail and continue to provide technical support long after the equipment has been installed.”
Our Proud Partners
Major Component Brands
Our Service for Your Success
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunctionwith their machinery.
Frequently Asked Questions
Is the GS Series suitable for high-speed, high-volume packaging lines?
Yes. The GS Series high-speed automatic flute laminator machine is designed for ultra-high-speed production of litho-laminated board, quick changeovers, and stable, continuous operation.
Are you a manufacturer?
Yes, we are Flute Laminator Master from China over 15 years, specialize in automatic flute laminators and flip flop stackers.
Do you have stock products to sell?
We produce machines in bacth normally. So most models we have some in stock, please check with us before ordering.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Do you test all your goods before delivery?
Yes, we have 100% functional testing and pilot run before delivery to ensure product integrity. All products are certificed by CE.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
What are your packaging conditions?
Usually, we pack the machine in a container with a plastic bag with desiccants, then with strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into case.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
