GW-1100L Flute Laminator
Automatic flute laminator delivers 15,000 sheets/hour with ±1.5mm accuracy, kinetic energy recovery, and full-servo control. It is ideal for corrugated packaging businesses.
GW-1100L Flute Laminator
Automatic flute laminator delivers 15,000 sheets/hour with ±1.5mm accuracy, kinetic energy recovery, and full-servo control. It is ideal for corrugated packaging businesses.
Key Benefits
The GW-1100L automatic flute laminators are specifically engineered for reliable, energy-efficient corrugated board lamination processes.
High Throughput
Maximum laminating speed up to 15,000 sheets/hour with servo positioning system for both cardboard and corrugated paper.
Precision Alignment System
Advanced sensors and servo motors ensure perfect alignment between liner and flute for consistent quality.
Multi-Flute Compatibility
Works on A, B, E, F flutes and multi-ply constructions. Quick changeover minimizes setup time when switching sheet sizes or types.
User-Friendly Interface
Maximum laminating speed up to 15,000 sheets/hour with servo positioning system for both cardboard and corrugated paper.
Advanced Safety Features
Comprehensive safety systems including emergency stops, guards, and automated shutdown protocols.
Easy Maintenance
Modular design with quick-access panels simplifies maintenance and reduces downtime.
GW-110L Technical Specifications
| Model | GW-1100L |
|---|---|
| Max. paper size (W x L) | 1100 × 1200 mm |
| Min. paper size (W x L) | 360 × 360 mm |
| Bottom Paper Sheet Thickness | 0.3 – 7mm |
| Upper Paper Sheet Thickness | 150 gsm-700 gsm |
| Max. Working Speed | 15,000 Sheets/Hour (153M/min) (Depends on paper quality) |
| Laminating Accuracy | ±1.5 mm (Standard Sheet Paper) |
| Applicable Glue | White glue, starch glue, etc. (Glue with PH6–8 suitable for lamination) |
| Power Supply | 380 VAC/3P |
| Power | 20 kW |
| Applicable paper | Flat corrugated boards (flute types A, B, E, F, double-wall, etc.) and cardboard weighing ≥ 300 g/m² for lamination |
| Kinetic Energy Recovery System | 4.4 kW energy recovery system, recovers ≥ 3 kWh per hour |
| Machine weight | 6000 KG |
| Overall dimension (L*W*H) | 13600 × 2000 × 2550 mm |
Machine Highlights

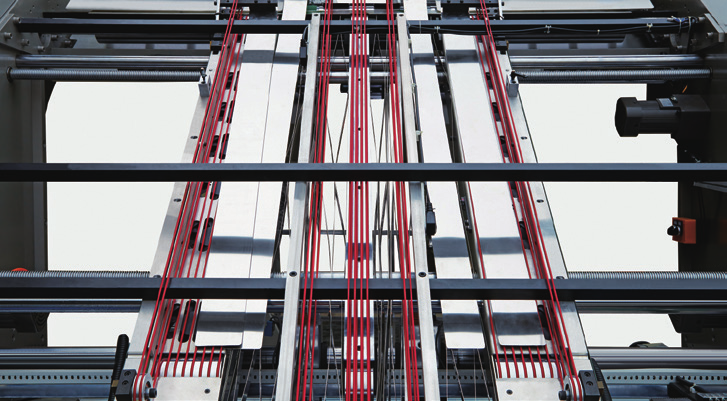

Lamination Positioning System
- Patent positioning compensation system, individually calculates front guide position for each sheet with servo automatic positioning, ensuring stable high precision of front guide.

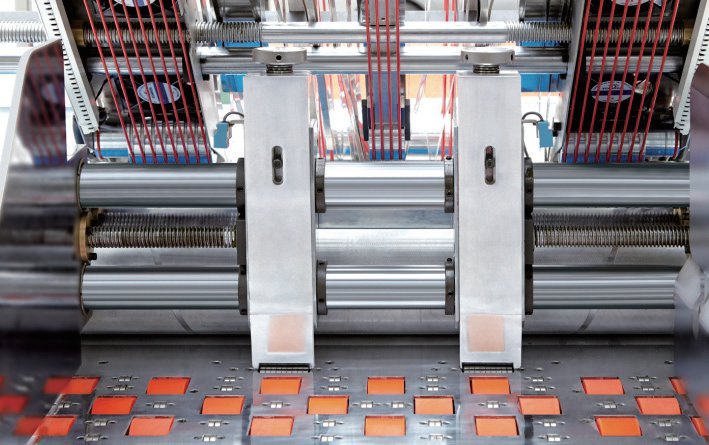

Leading-edge Feed System
- Adopts high-speed servo paper feeding, achieves high-speed, stable paper feeding, effectively reduces wear during the paper feeding process.
Digital Machine Setting System
- Uses a digital operating system for easy touchscreen operation: input paper dimensions to auto‑position pre‑stacking paper, feeder, moving frame, base paper, face paper and conveyor belt in one go. Its non‑stop order‑switching feature presets the next batch during production to pre‑stack paper without stopping, reducing reliance on operator skills.
Kinetic Energy Recovery System
- Original patent kinetic energy recovery system, recovers over 3 kWh of electrical energy per hour.

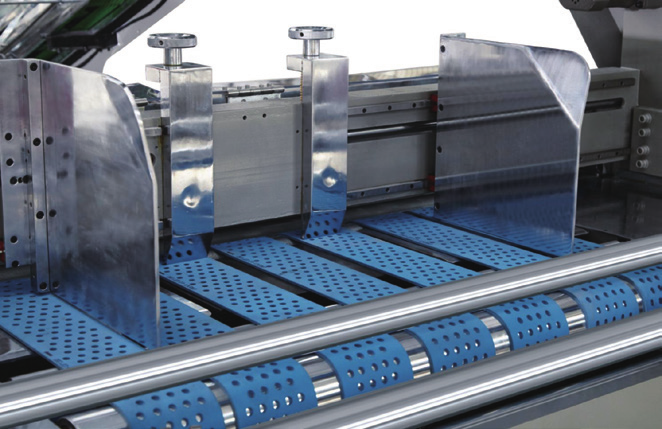

Face Paper Feeding Mechanism
- Directly pushes the whole board paper into the Feeder device, reducing manual intervention. The whole board paper can be adjusted arbitrarily left and right. Feeder head and point wheel equipped with servo shaftless drive, making Feeder paper feeding more stable.

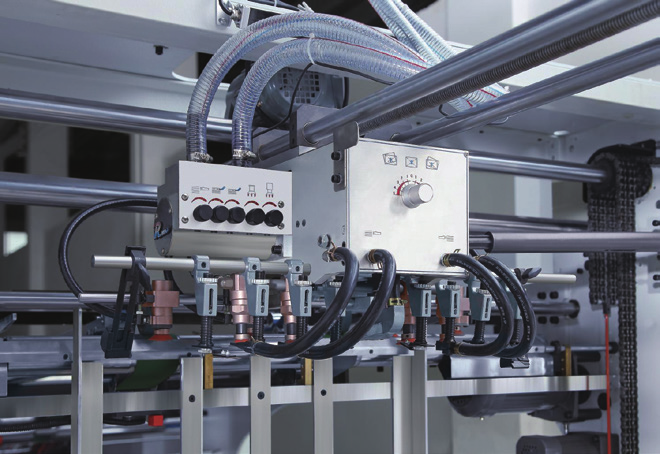

Shaft-less High Speed Feeder
- Adopts servo-controlled shaftless high-speed Feeder, equipped with front and rear automatic adjustment function, adapts to different production requirements.
Automatic Lubrication System
- Equipped with an automatic lubrication system, effectively reduces equipment maintenance frequency and cost.
Case Studies
Spanish Client Case Study
Mexican Client Case Study
Australian Client Case Study
Final Product Samples
Why Partner with FENGCHI?
High Quality
Our quality management system is certified by ISO9001. Products manufactured by Fengchi are also certified by CE.
Vast Experience
More than 16 years of experience within automation gives us an enormous know-how and expertise in laminating solutions.
50 Patents
We continuously push the boundaries of speed and performance, securing 50 patents through independent research and development.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Hear from industry leaders who have transformed their production with our automatic flute laminators
We’ve increased our daily output by 45% while reducing material waste. The ROI was achieved in just 10 months.
The technical support is exceptional. When we had a minor issue, their team resolved within 24 hours.
The precision and consistency of the flute laminator have significantly improved our product quality.
Trusted by Industry Leaders
Major Suppliers
First Class Service & Support
Fengchi Printing Machinery knows that successful installation, training, and support are critical to your operation and achieving the profitability gains you target. This drives our commitment to your success.
Our goal is to provide you with the tools and technical knowledge that your in-house maintenance needs, to be able to fix their own machines. Our technical support team and parts department work with customers to resolve issues over the phone, but when special care is needed, our team is prepared to make emergency field service visits, to get your plant up and running quickly. Parts, service, and support are handled directly through the Fengchi technical support group.
Frequently Asked Questions
Quick answers about the GW-1100L flute laminator.
What is the maximum speed of the GW-1100L flute laminator?
The GW-1100L achieves a maximum laminating speed of 15,000 sheets per hour (153 m/min), depending on paper quality and size.
What is the laminating accuracy of the GW-1100L?
The GW-1100L delivers ±1.5mm laminating accuracy on standard sheet paper. The patent positioning compensation system calculates front guide position for each sheet individually using servo automatic positioning, ensuring consistent quality across production runs.
What types of corrugated board can the GW-1100L handle?
The machine handles flat corrugated boards with flute types A, B, E, F, double-wall constructions, and cardboard weighing ≥300 g/m². Bottom paper thickness ranges from 0.3mm to 7mm; upper paper from 150 to 700 gsm.
Can the GW-1100L be integrated with a stacker?
Yes. The GW-1100L pairs seamlessly with the flip-flop stacker for fully automated production — automatic counting, stacking, and palletizing. The stacker operates at up to 15,000 sheets/hour to match the laminator’s output.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
What warranty and after-sales support do you offer?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
How much does the GW-1100L flute laminator cost?
Pricing depends on configuration options. Contact us for a customized quotation with detailed specifications and pricing tailored to your specific production needs.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
