High-Speed Flute Laminator
Explore the GW mainstream model flute laminator for high-speed corrugated packaging production, fast changeovers, and precise registration. Request a quote today.
High-speed Flute Laminator
Explore the GW mainstream model flute laminator for high-speed corrugated packaging production, fast changeovers, and precise registration. Request a quote today.
Key Benefits
Over 15 years of specialized innovation in corrugated laminating technology with 50 patents and 25 dedicated engineers
High Throughput
Max speed of 16,000 sheets/hr for 24/7 production to reduce lead times and increase capacity.
Fast Job Changeover
Make ready in 2-5 minutes.
Improve production efficiency.
Long-Term Durability
Servo motors and drives built with 35% load reserve for 15+ years of consistent performance.
One-Key OPeration
Very easy to operate and maintain. Remote control for debugging is also available.
Full Servo Control
Full-servo motion control for precise alignment and consistent lamination quality.
High Accuracy
±1.0mm registration control with full-servo motion minimizes material waste and ensures consistent quality.
Choose Your Model
GW-1450L Flute Laminator
Product Features
- Model: GW-1450L (Mainstream Model)
- Patent: Leading Edge Paper Feeding Patent
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.
GW-1700L Flute Laminator
Product Features
- Model: GW-1700L (Mainstream Model)
- Patent: Leading Edge Paper Feeding Patent
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.
GW-2200L Flute Laminator
Product Features
- Model: GW-2200L (Mainstream Model)
- Patent: Leading Edge Paper Feeding Patent
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.
GW-1450B Flute Laminator
Product Features
- Model: GW-1450B (Mainstream Model)
- Feeder: Belt Feeding System
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.

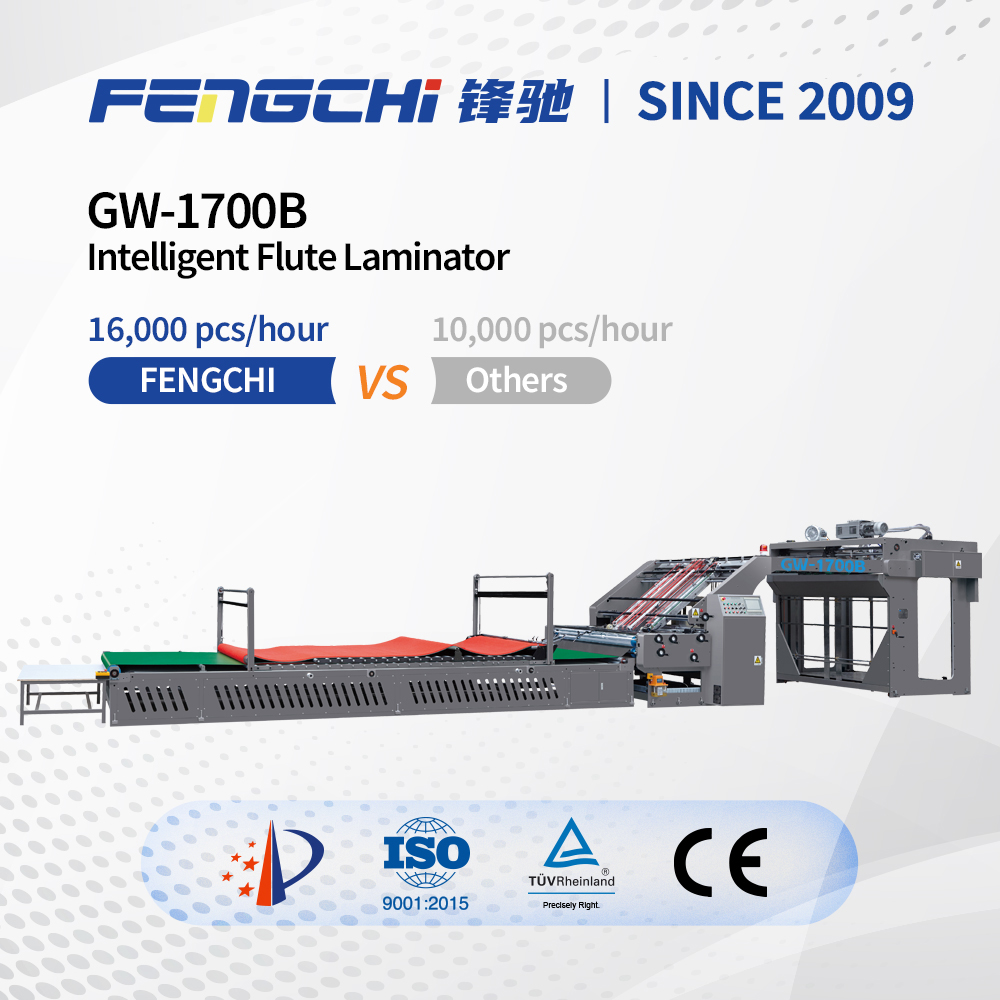

GW-1700B Flute Laminator
Product Features
- Model: GW-1700B (Mainstream Model)
- Feeder: Belt Feeding System
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.
GW-2200B Flute Laminator
Product Features
- Model: GW-2200B (Mainstream Model)
- Feeder: Belt Feeding System
- Working speed: 165m/min (16000 sheets/hour); For small paper sizes, the speed can be faster.
- Easy to switch according to different production batches: Make ready in 2-5 minutes. Improve production efficiency.
- Optional machine sizes: 1450/1700/2200mm, match with different printing machines and other post-press machines sizes.
- Full servo control, large size rollers with double bearings at each end, automatic lubrication system, photoelectric detection / sensor and alarm system and self- developed operation system to achieve high stability, high speed, and high efficiency.
- Very easy to operate and maintain. Remote control for debugging is also available.
Technical Specifications
Leading Edge Feeding Verson
| Parameter / Model | GW-1450L | GW-1700L | GW-2200L |
|---|---|---|---|
| Max Sheet Size (W x L) | 1450 x 1450 mm | 1700 x 1650 mm | 2200 x 2100 mm |
| Min Sheet Size (W x L) | 360 x 350 mm | 360 x 350 mm | 360 x 350 mm |
| Bottom Paper Sheet Thickness | F flute-10 mm | ||
| Upper Paper Sheet Thickness | 120 g-700 g | ||
| Max Working Speed | 16,000 Sheets/Hour (165 M/Min) | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Voltage | 380 VAC/3P | ||
| Power | 26 kW | 30 kW | 32 kW |
| Machine Weight | 8000 KG | 8500 KG | 9000 KG |
| Machine Dimension (L x W x H) | 15700 x 2400 x 2550 mm | 16300 x 2650 x 2550 mm | 18500 x 3050 x 2880 mm |
| Applicable Paper | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Belt Feeding Verson
| Parameter / Model | GW-1450B | GW-1700B | GW-2200B |
|---|---|---|---|
| Max Sheet Size (W x L) | 1450 x 1450 mm | 1700 x 1650 mm | 2200 x 2100 mm |
| Min Sheet Size (W x L) | 360 x 350 mm | 360 x 350 mm | 360 x 350 mm |
| Bottom Paper Sheet Thickness | 300gsm-10mm | ||
| Upper Paper Sheet Thickness | 120 g-700 g | ||
| Max Working Speed | 16,000 Sheets/Hour (165 M/Min) | ||
| Laminating Accuracy | ±1.0 mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue,milky glue (PH 6~8 will be suitable) | ||
| Machine Weight | 8000 KG | 8500 KG | 9000 KG |
| Machine Dimension (L x W x H) | 15700 x 2400 x 2550 mm | 16300 x 2650 x 2550 mm | 18500 x 3050 x 2880 mm |
| Voltage | 380 VAC/3P | ||
| Power | 26 kW | 30 kW | 32 kW |
| Bottom Paper Applicable | Double-coated paper above 250 gsm, and A, B, C, E, F, 3ply, 5ply corrugated board | ||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Machine Highlights
PU Bottom Feeding Wheel
- Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.
Leading-edge Feed System
- Self-developed leading-edge feed system specially for deformed, warped corrugated papers.
One-button Operation
- Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.
Automatic Lubrication of Bearings
- Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.
Enlarged Glue Roller
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.
Servo Control Lifting Pile Plate
- High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.
Dual-bearing Structure
- Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
- Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
- Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.
See the GW Flute Laminator in Action
Final Product Samples
Real Results from Real Customers
See how industry leaders are transforming their production with Fengchi
MicroPack Americas: 50-Year Packaging Leader
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!
Best regards.”
— Julio Miamau, CEO, MicroPack Americas
Production Impact
- Faster production cycles – Reduced time-to-market by 30%
- More consistent lamination quality – 99.8% quality acceptance rate
- Lower operating costs – 22% reduction in per-unit costs
- Enhanced competitive edge – Enabled new premium product lines
Why Partner with FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
50 Patents
We continuously push the boundaries of speed and performance, securing 50 patents through independent research and development.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Hear from industry leaders who have transformed their production with our high-speed automatic flute laminators
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!
Best regards.”
“We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding. Every delivery meets our high standards, giving us a competitive edge in the market. They are truly a trustworthy partner.”
– Farhan Mathur, Business Owner
“If you need to boost your productivity, Fengchi always has a solution for you. Their equipment offers excellent value for money, is of superior quality, and is delivered on time. They pay close attention to detail and continue to provide technical support long after the equipment has been installed.”
– Theo Prosenica, Managing Director
Our Proud Partners
Major Component Brands
Our Service for Your Success
Our service team ensures maximum production reliability and efficiency.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunctionwith their machinery.
Frequently Asked Questions
What board sizes can it handle?
GW mainstream model flute laminators range from 1450 mm to 2200 mm max sheet width, suitable for standard to extra-large boards.
How long is changeover?
Jobs can be changed over in 2–5 minutes thanks to full-servo automation.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Are you a manufacturer?
Yes, we are Flute Laminator Master from China over 15 years, specialize in automatic flute laminators and flip flop stackers.
Do you have stock products to sell?
We produce machines in bacth normally. So most models we have some in stock, please check with us before ordering.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
Do you test all your goods before delivery?
Yes, we have 100% functional testing and pilot run before delivery to ensure product integrity. All products are certificed by CE.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
What are your packaging conditions?
Usually, we pack the machine in a container with a plastic bag with desiccants, then with strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into case.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
