High-Speed Flute Laminator
The GW Series (mainstream models) of high-speed flute laminators are designed for precision, reliability, and maximum productivity.
High-speed Flute Laminator
The GW Series (mainstream models) of high-speed flute laminators are designed for precision, reliability, and maximum productivity.
Key Benefits
High-Speed Operation
165 m/min (16000 sheets/hour) for small paper sizes, faster speeds available
One-Key Operation
Smart HMI, remote debugging support, easy maintenance
Quick Job Changeover
Job change in 2-5 minutes, adapts to multi-variety orders, improves productivity.
Full Servo Control
Full servo control ensures high stability, high speed, and high efficiency.
Engineered for Longevity
Servo motors and drives built with 35% load reserve for 15+ years of consistent performance.
Global Support Network
24-hour remote response with 1-year comprehensive warranty and lifetime support options. CE certified for international safety standards.
Choose Your Model
GW-1450L Flute Laminator
Model: GW-1450L (Mainstream Model)
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 15700mm * 2400mm * 2550mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Video conference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available
GW-1700L Flute Laminator
Model: GW-1700L (Mainstream Model)
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 16300mm * 2650mm * 2550mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available
GW-2200L Flute Laminator
Model: GW-2200L (Mainstream Model)
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Patent: Leading Edge Paper Feeding Patent
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 18500mm * 3050mm * 2880mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available
GW-1450B Flute Laminator
Model: GW-1450B (Mainstream Model)
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Feeder Method: Belt Feeder System
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 15700mm * 2400mm * 2550mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Video conference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available
GW-1700B Flute Laminator
Model: GW-1700B (Mainstream Model)
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Feeder Method: Belt Feeder System
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 16300mm * 2650mm * 2550mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available

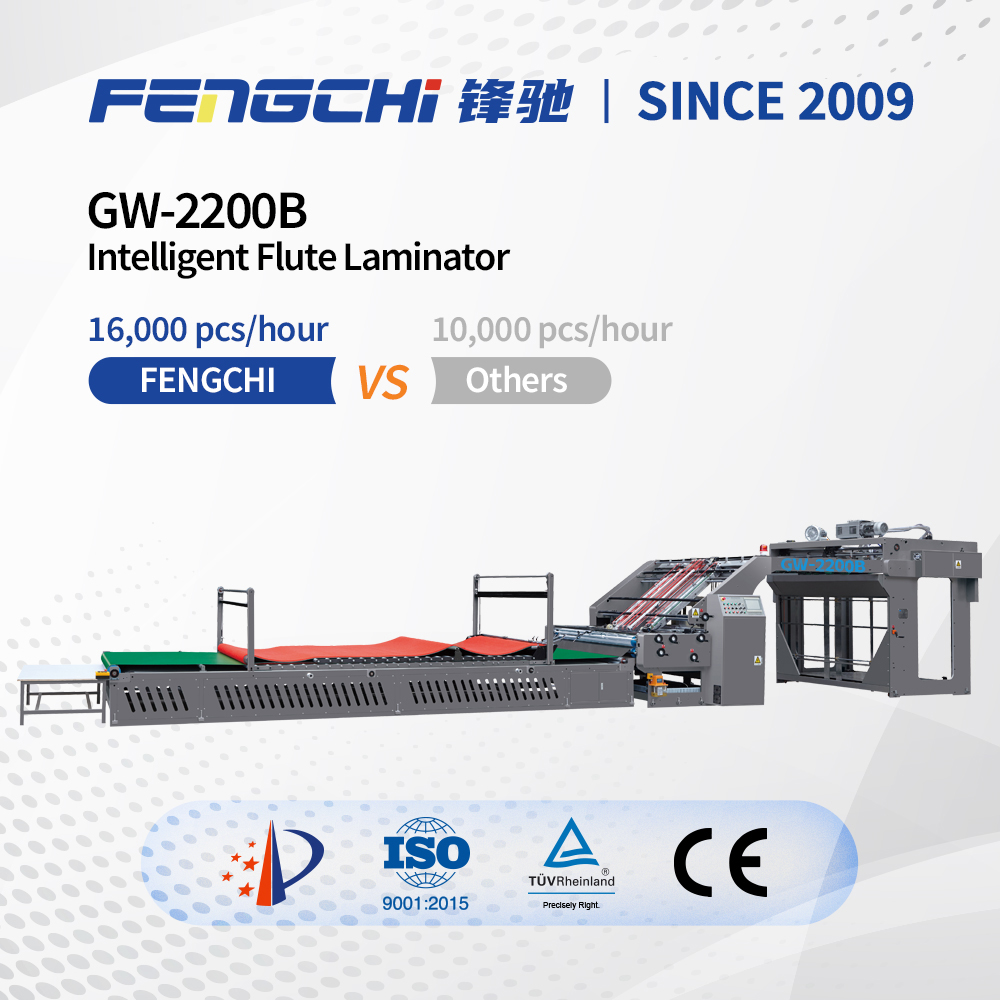

GW-2200B Flute Laminator
Model: GW-2200B (Mainstream Model)
Membrane Material: Paper
Plastic Film Mulching Modes: Hot Laminating
Performance: Anticorrosive
Feeder Method: Belt Feeder System
Stable Speed: 16,000 Sheets/Hour
Features: Fully Automatic, Intelligent, User-Friendly Design
Feeding Mechanism Features: Unique Servo Vacuum Paper Feeding
Advantages: Low Failure Rate, High Efficiency, Long Life
Transport Package: Standard Package
Specification: 18500mm * 3050mm * 2880mm
Trademark: Fengchi
Origin: China
After-sales Service: Engineers Available Video & Videoconference Remote
Warranty: 1 Year
Classification: Post-Coating Laminating Machine
Application: Packaging Paper, Color Printing, Cardboard and Corrugated Laminating
Driven Type: Mechanical
Automatic Grade: Automatic
Customization: Available
Technical Specifications
| Parameter / Model | GW-1450L | GW-1700L | GW-2200L |
|---|---|---|---|
| Max sheet size (W×L) | 1450×1450mm | 1700×1650mm | 2200×2100mm |
| Min sheet size (W×L) | 360×350mm | ||
| Bottom paper thickness | F flute ~ 10mm | ||
| Top paper thickness | 120g - 700g | ||
| Max speed | 16,000 sheets/hour | ||
| Laminating accuracy | ±1.0mm (standard sheet paper) | ||
| Applicable glue | Resin adhesive, starch glue, milky glue (PH 6–8 suitable) | ||
| Machine weight | 8000kg | 8500kg | 9000kg |
| Dimension (L×W×H) | 15700×2400×2550mm | 16300×2650×2550mm | 18500×3050×2880mm |
| Voltage | 380VAC / 3P | ||
| Powe | 26kW | 30kW | 32kW |
| Applicable Paper | A,B,C,E,F flute, 3/5/7-ply corrugated board and cardboard within thickness range | ||
| Parameter / Model | GW-1450B | GW-1700B | GW-2200B |
|---|---|---|---|
| Max sheet size (W×L) | 1450×1450mm | 1700×1650mm | 2200×2100mm |
| Min sheet size (W×L) | 360×350mm | ||
| Bottom paper thickness | 300gsm - 10mm | ||
| Top paper thickness | 120g - 700g | ||
| Max speed | 16,000 sheets/hour | ||
| Laminating accuracy | ±1.0mm (standard sheet paper) | ||
| Applicable glue | Resin adhesive, starch glue, milky glue (PH 6–8 suitable) | ||
| Machine weight | 8000kg | 8500kg | 9000kg |
| Dimension (L×W×H) | 15700×2400×2550mm | 16300×2650×2550mm | 18500×3050×2880mm |
| Power | 26kW | 30kW | 32kW |
| Voltage | 380VAC / 3P | ||
| Bottom Paper Applicable | Double coated paper ≥250gsm, A/B/C/E/F flute and 3/5/7-ply corrugated board | ||
* Need a tailored spec? Contact our sales engineers for configuration and site requirements.
Product Highlights
PU Bottom Feeding Wheel
- Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.
Leading-edge Feed System
- Self-developed leading-edge feed system specially for deformed, warped corrugated papers.
One-button Operation
- Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.
Automatic Lubrication of Bearings
- Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.
Enlarged Glue Roller
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.
Servo Control Lifting Pile Plate
- High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.
Dual-bearing Structure
- Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
- Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
- Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.
See Our Machine in Action
Final Product Samples
Real Results from Real Customers
See how industry leaders are transforming their production with Fengchi
MicroPack Americas: 50-Year Packaging Leader
“We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!
Best regards.”
— Julio Miamau, CEO, MicroPack Americas
Production Impact
- Faster production cycles – Reduced time-to-market by 30%
- More consistent lamination quality – 99.8% quality acceptance rate
- Lower operating costs – 22% reduction in per-unit costs
- Enhanced competitive edge – Enabled new premium product lines
Why Partner with Fengchi?
High Quality
Our quality management system is certified by ISO9001. Products manufactured by Fengchi are also certified by CE.
Vast Experience
More than 15 years of experience within automation gives us an enormous know-how and expertise in laminating solutions.
50 Patents
We continuously push the boundaries of speed and performance, securing 50 patents through independent research and development.
Global Support
We proudly export corrugated laminating solutions worldwide, ensuring international clients benefit from our innovative technology.
What Our Customers Say
Hear from industry leaders who have transformed their production with our high-speed automatic flute laminators
We are extremely pleased and proud to have acquired the top flute laminator in China from Fengchi. It’s an exciting milestone for us to have the best in the industry.
I also want to extend my gratitude for the exceptional senitce and smooth negotiation process we’ve experienced. Congratulations to both our teams for this achievement!
Best regards.
We have partnered with this company for years and have never been disappointed. Both the product quality and responsiveness of their service are outstanding. Every delivery meets our high standards, giving us a competitive edge in the market. They are truly a trustworthy partner.
I really like FENGCHI’s machines. These machines are easy to operate, and the finished products are very good.
Trusted by Industry Leaders Worldwide
Major Suppliers
Our Service for Your Success
Our service team ensures maximum production reliability and efficiency.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunctionwith their machinery.
Frequently Asked Questions
Why choose us to cooperate?
1. “FENGCHI” is well-known brand and paper flute laminator master in China since 2009, focus on solving the manufacturing process of over-gluing and laminating & stacking after the post-printing of color cardboard & corrugated cartons.
2. Strong R&D team by 25 senior engineers over 30 years experience in printing industry. With 30 patents to ensure product more stable, more efficient and durable.
3. After-sale service and technical assistance: company provides after sales service and technical assistance as per customers’ requirement and needs with response within 24 hours.
4.Cost saving: Full servo digital operating system greatly reduce operator level(normally two primary operator) with manpower saving, 150mm roller with double bearing and auto refueling system make equipment durable and free maintenance. China highest laminating speed at 22,000pcs/hour.
Are you a manufacturer?
Yes, we are Flute Laminator Master from China over 15 years, specialize in automatic flute laminators and flip flop stackers.
Do you have stock products to sell?
We produce machines in bacth normally. So most models we have some in stock, please check with us before ordering.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
Do you test all your goods before delivery?
Yes, we have 100% functional testing and pilot run before delivery to ensure product integrity. All products are certificed by CE.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
What are your packaging conditions?
Usually, we pack the machine in a container with a plastic bag with desiccants, then with strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into case.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
