Auto Folder Gluer Stitcher
Industry-leading automatic folder gluer stitcher. Reduce labor costs. Maximize output.
Trusted by 500+ corrugated box and folding carton manufacturers worldwide.
Automatic Folder Gluer Stitcher
Industry-leading automatic folder gluer stitcher. Reduce labor costs. Maximize output.
Struggling with Production Challenges?
Slow Production
Manual processes limit output
High Labor Costs
Multiple operators needed
Quality Issues
Inconsistent stitching results
Inflexible Setup
Long changeover times
Features & Benefits

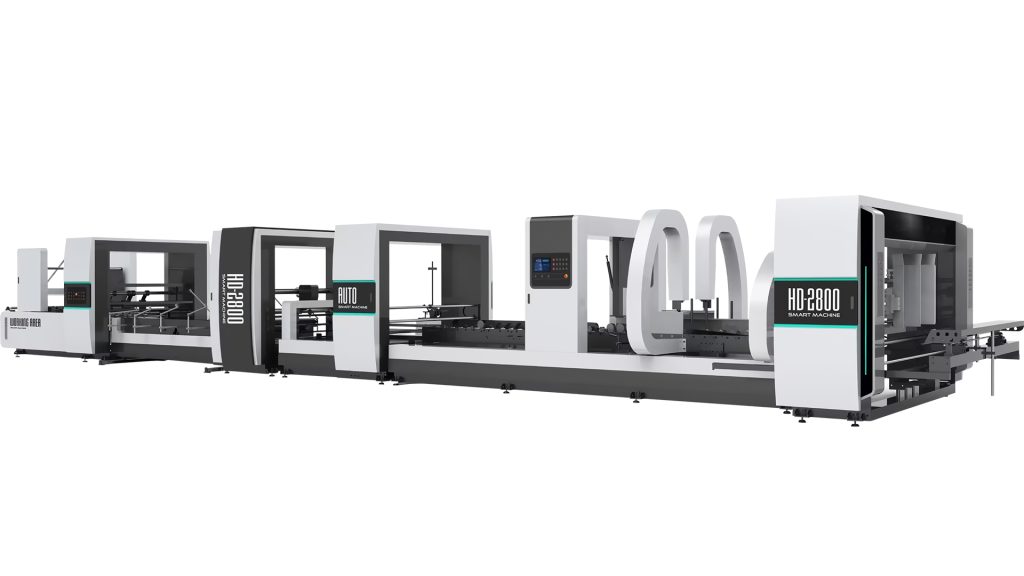

The HD Series Automatic Folder Gluer Stitcher Machine is the ideal choice for packaging manufacturers producing large quantities of corrugated boxes.
High Productivity
Swing stitching head ensures low power consumption, faster speed, and greater stability.
Seamless Process Switching
One-key conversion between stitching and gluing functions for maximum flexibility.
Lower Operating Costs
Energy-efficient design with minimal maintenance. Reduce operational expenses.
Quick Order Changeover
Change jobs in 3-5 minutes with order memory function for mass production efficiency.
Full Corrugation Compatibility
Works with A, B, C, AB flute, 3-ply, 5-ply, and 7-ply corrugated paper.
Full-Process Intelligent Control
Automated folding, gluing, and stitching with one-key conversion. Easy operation with full computer control.
Watch Our Auotmatic Folder Gluer Stitcher in Action
Technical Specifications
| Parameter / Model | HD-2800 | HD-2800 Ultra | HD-3600 |
|---|---|---|---|
| Sheet Specifications | |||
| Max Sheet Size (W x L) | 2800 × 1200 mm | 2800 × 1200 mm | 3600 × 1600 mm |
| Min Sheet Size (W x L) | 830 × 300 mm | 760 × 300 mm | 1160 × 400 mm |
| Stitching Specifications | |||
| Max Stitching Speed | 1600 stitches/min | ||
| Stitching Gap | 40-500 mm | ||
| Stitching Quantity | 1-99 | ||
| Stitch Angle | 45° | ||
| Physical Specifications | |||
| Machine Net Weight | 9.7 T | 11 T | 12 T |
| Machine Size (L x W x H) | 17000 × 4100 × 2200 mm | 17000 × 4100 × 2300 mm | 19000 × 4400 × 2800 mm |
| Power & Air Requirements | |||
| Air Source | 0.6-0.8 Mpa | ||
| Power Source | 380 VAC/3P 50Hz | ||
| Power Consumption | ≤ 23 kW | ≤ 28 kW | ≤ 31 kW |
| Material Compatibility | |||
| Applicable Paper | A, B, C, AB flute, 3ply, 5ply, 7ply corrugated paper | ||
| Advanced Features | |||
| Automatic Feeder Pressure Adjustment | No | Yes | Yes |
| Automatic Stitching Head Pressure Adjustment | No | Yes | Yes |
| Customized Small Side Folding | No | Yes | Yes |
| Folding Part Full Servo Control | No | Yes | Yes |
Note: Specifications are subject to change. Please consult our sales engineers for the latest information.
Product Gallery

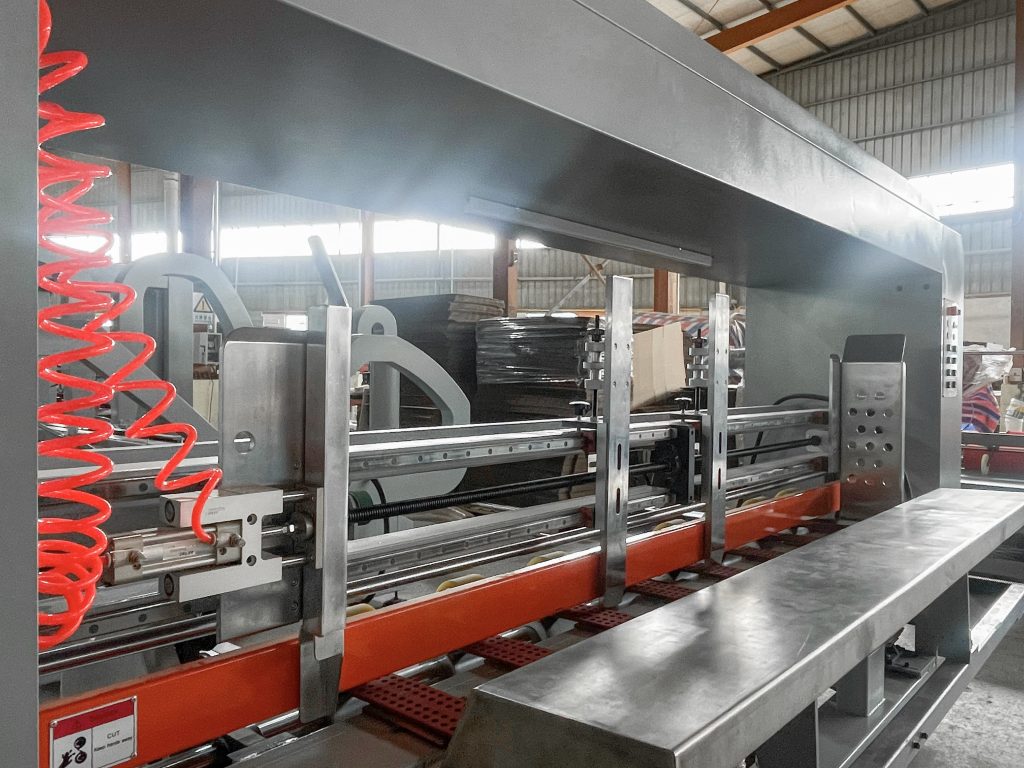

Feeding Part
- With the retention frame pneumatic flap, more stable, higher accuracy.
- Siegling high wear-resistance suction belt, can control the air volume, Ensure complete paper adsorption, ensure stable paper transmission, accurate positioning.
- Split air suction unit, effectively reduce the after-sales maintenance cost and time.

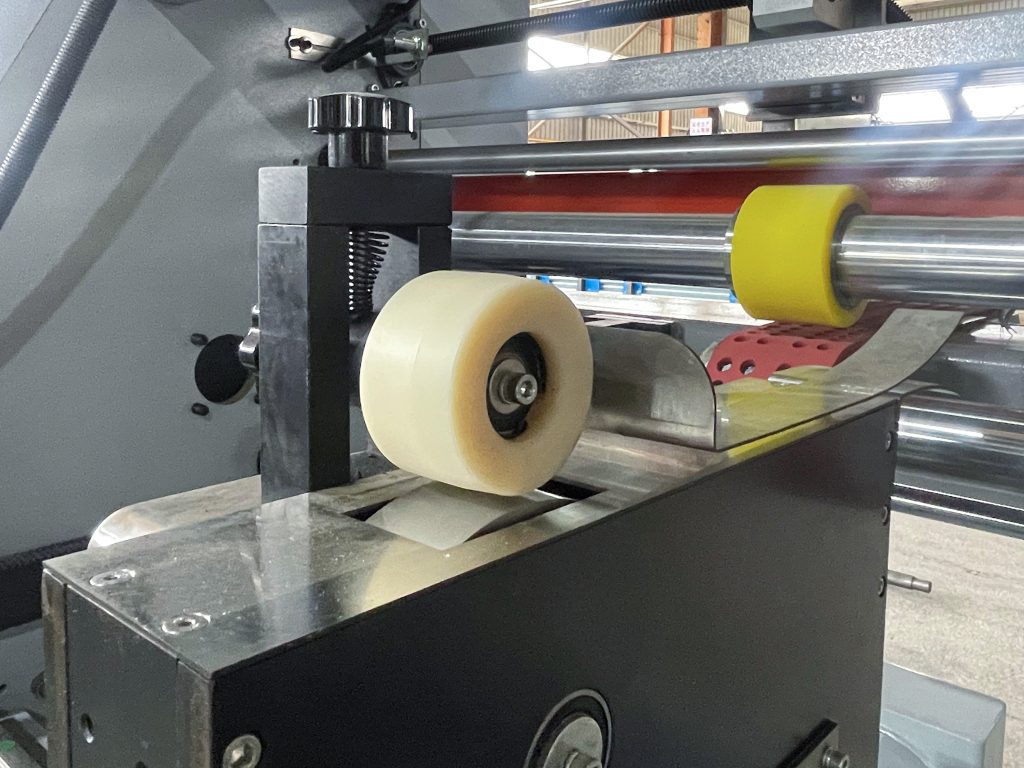

Pressing Part
- The independent edge pressing structure effectively solves the problem of thick cardboard blasting in the process of stitching.
- The split transmission shaft can be adjusted separately and tightened to ensure that the belt pressure is consistent, the paper is stable and effectively avoid the shaft phenomenon.

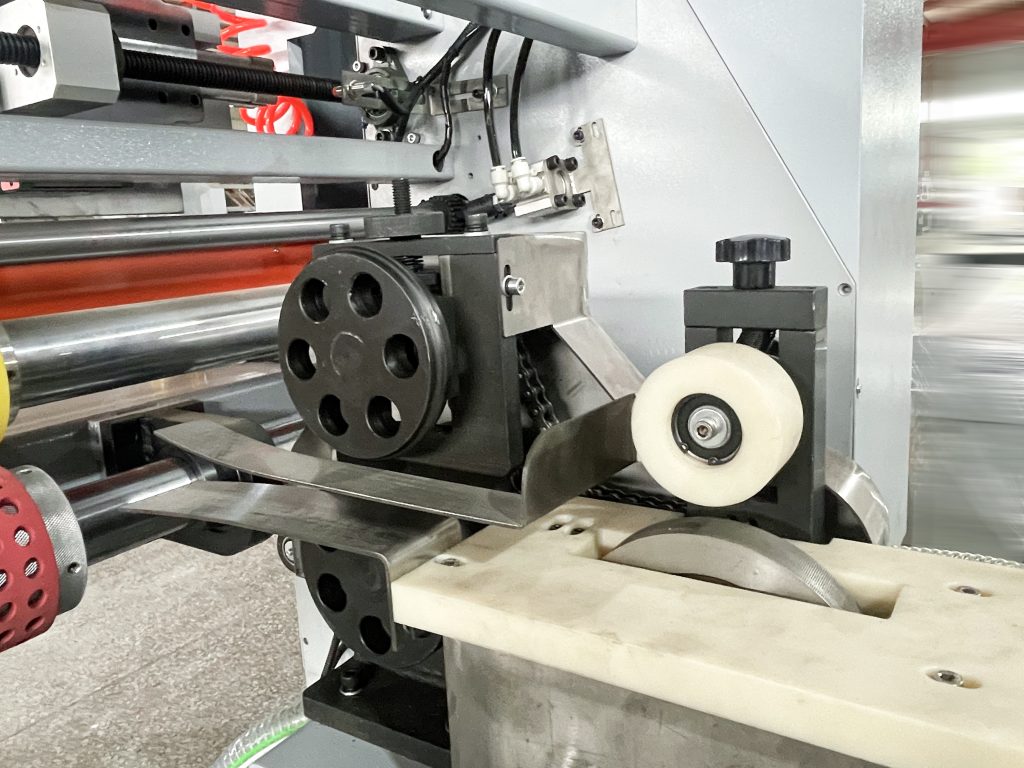

Creasing Part
- The patented design with active line pressing device to ensure the stability, good forming effect and smooth packing.

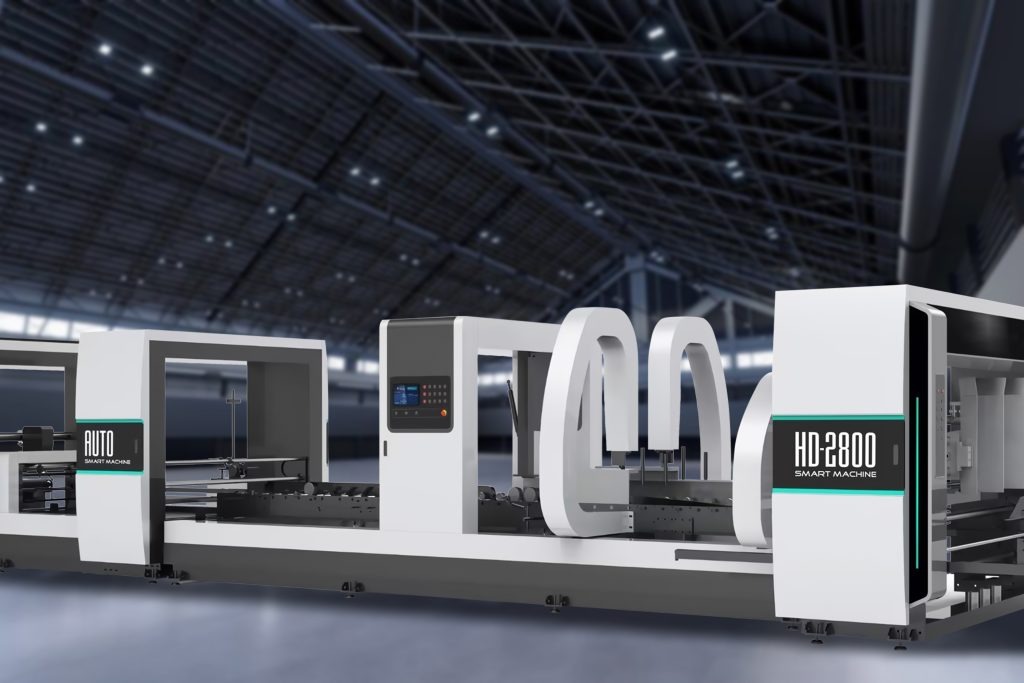

Folding Part
- Adopts synchronous belt drive to avoid the phenomenon of cold start skid and ensure the smooth transmission of paper.
- Reinforced four-axis transmission to ensure that the machine operation, transportation process is stable, no deformation.

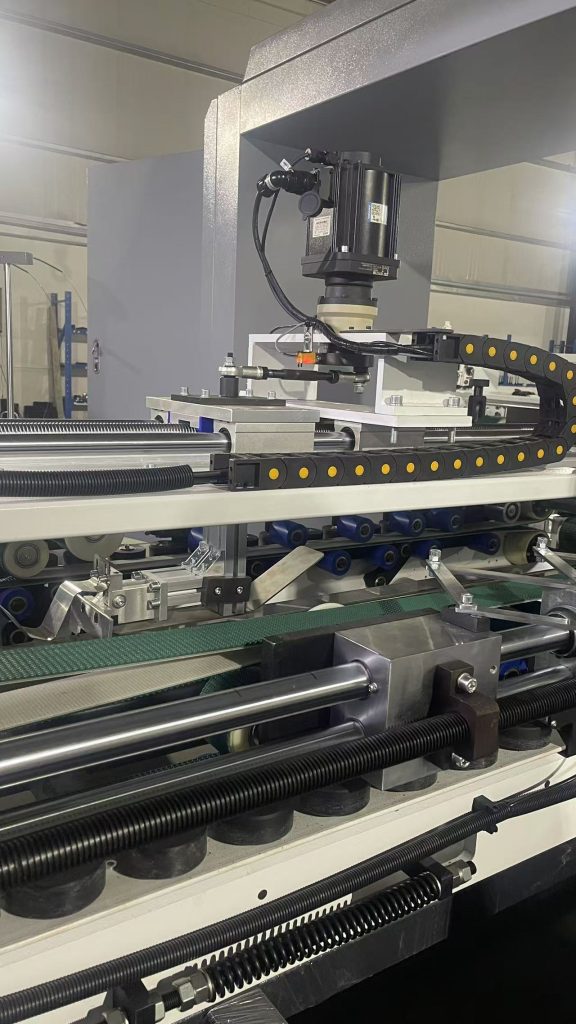

Flap Part
- Reciprocating straight line beat correction, high accuracy, stable operation.
- The forward-leaning arched beam is conducive for carton connection and transmission.
- With the sunken belt, greatly strengthen the molding accuracy and smoothness of the carton.

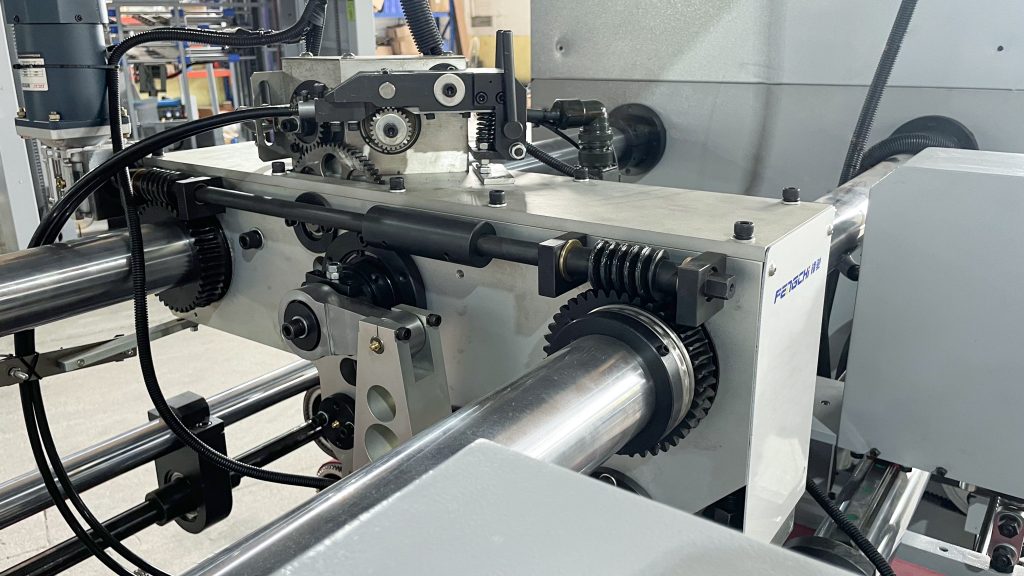

Stitching Part
- The swing stitching head ensures low power consumption, faster speed, and greater stability, enhancing nail box quality.
- Integrated design guarantees precise distance control, while simplifying installation, maintenance, and operation.
- Customized alloy material ensures the blade withstands 6 million cycles wear-free.
- Seven-series aluminum alloy exhibits superior heat dissipation and mechanical properties compared to standard materials.
Why Partner with Fengchi?
High Quality
Fengchi products are manufactured by a team of skilled and qualified technicians. Our quality management system is certified by ISO9001. Products manufactured by Fengchi are also certified by CE.
Innovative Solutions
We work with you to find not just one, but the right solution for your packaging production – from stand-alone to turnkey.
Global Support
With three offices around the world, and around 50 agents, we are able to provide local support on a global level.
Trusted by Industry Leaders Worldwide
See what our customers say about the HD Series folder gluer stitcher.
“The HD Series increased our box production by 40% while reducing labor costs. The quick changeover feature has been a game-changer for our operation.”
“We’ve been using the HD Series for 18 months with zero downtime. The precision and reliability of this machine are unmatched in the industry.”
“Fengchi’s support team is exceptional. When we had a minor adjustment issue, they had a technician on video call within 30 minutes to resolve it.”
Our Technical Service
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunctionwith their machinery.
Frequently Asked Questions
What types of corrugated paper does the HD Series handle?
The HD Series Folder Gluer Stitcher handles A/B/C/AB flute, 3-ply, 5-ply, and 7-ply corrugated paper with ease.
How easy is changeover?
Touchscreen presets reduce changeover time significantly; exact time depends on operator training and job complexity.
What warranty/support?
Standard 12-month warranty; global spare parts and service available.
Delivery & lead time?
Typical lead time: 10–30 days (confirm per order). The specific delivery time depends on the product and the order quantity.
Will you supply for OEM orders?
Yes, we can customize the production machine according to your requirements.
