Litho Laminating
Line
Engineered for unparalleled speed, accuracy & reliability.
Runs up to 22,000 sheets/hour with laminating accuracy ±1.0 mm.
Litho Laminating
Line
High-speed litho laminating line for corrugated and cardboard packaging.
Overview

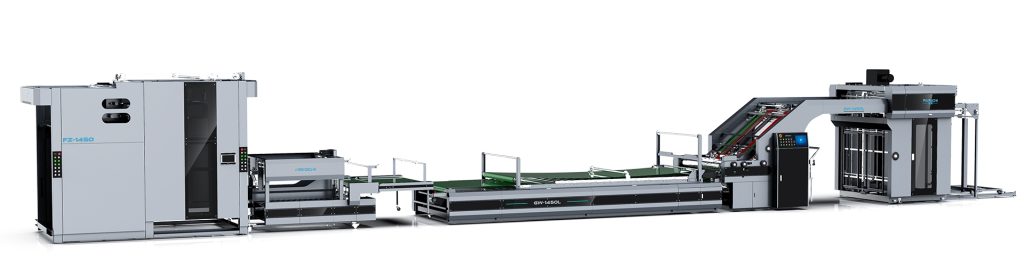

Automatic Litho Laminating Line
Our high-speed litho laminating line consists of a fully servo-driven litho laminator and a flip flop stacker.
High-speed litho laminating lines are specifically engineered for reliable, efficient corrugated board lamination processes. They are ideal for packaging manufacturers producing high volumes of corrugated packaging, point-of-sale displays, and laminated cardboard products.
We guarantee our total support, before, during and after sale and installation.
Key Benefits:
- Up to 22,000 sheets/hour
- Laminating Accuracy: ±1.0 mm
- Short Setup Times
- Operator Friendly
Contact our experts to discuss your project or get a quote.
End-use Packaging Samples
Case Studies
Spanish Client Case Study
Mexican Client Case Study
Australian Client Case Study
Trusted by Thousands of Customers and Agents
Main Features
High Throughput
Max speed 22,000 sheets/hr with continuous operation at 16,000 sheets/hr for 24/7 production.
Fully Servo Driven
Full-servo motion control for precise alignment and consistent lamination quality
Precise Glue Application
150mm stainless steel roller, laser-engraved anilox roller applies glue evenly at just 18g/m² – 30% glue savings, no splashing, clean finish.
Fast Job Changeover
Quick setup in 2–5 minutes for different batch sizes; boosts production efficiency.
Energy Efficient
Consumes only 8kW/hour – saves up to 20% on power.
Long Lifespan Design
Servo motors and drives built with 35% load reserve for 15+ years of consistent performance.
Technical Specifications
| Model | GW-1450LP | GW-1700LP | GW-2200LP |
|---|---|---|---|
| Max. paper size (W x L) | 1450mm * 1450mm | 1700mm * 1650mm | 2200mm * 2100mm |
| Min. paper size (W x L) | 360mm * 360mm | 360mm * 360mm | 450mm * 380mm |
| Bottom Paper Sheet Thickness | F flute-10mm | ||
| Upper Paper Sheet Thickness (W*L) | 150 g-700 g | ||
| Max. Working Speed | 22,000 Sheets/Hour (175 M/Min) | ||
| Laminating Accuracy (W*L) | ±1.0mm (Standard Sheet Paper) | ||
| Applicable Glue | Resin adhesive, starch glue and etc (PH6~8 will be suitable) | ||
| Power Supply | 380VAC/3P | ||
| Power | 26KW | ||
| Applicable Corrugated Board | A, B, C, E, F, 3ply, 5ply, 7ply corrugated board, and cardboard within above mentioned thickness range | ||
| Machine weight | 8000KG | 8500KG | 9000KG |
| Overall dimension (L*W*H) | 15700mm * 2400mm * 2550mm | 16300mm * 2650mm * 2550mm | 18500mm * 3050mm* 2880mm |
* The above speeds vary according to paper type.
Product Gallery
PU Bottom Feeding Wheel
- Unidirectional rotating feeding roller, without wear and tear, service life cycle up to 10 years.
Leading-edge Feed System
- Self-developed leading-edge feed system specially for deformed, warped corrugated papers.
One-button Operation
- Adopting 7-8 servo motors control systems, digital intelligent input, automatic order changeover in 2-3 min.
Automatic Lubrication of Bearings
- Intelligent control for automatic lubrication, no need for daily maintenance, saving labor costs, and improving production efficiency.
Enlarged Glue Roller
- Enlarged 150mm diameter stainless steel roller, laser engraved anilox, high-speed and stable without glue splashing.
Servo Control Lifting Pile Plate
- High speed feeder smooth feeding, single sheet lifting same as offset printing press, high efficient and stable.
Dual-bearing Structure
- Ensures efficient and stable operation of the machine with doubled life cycle.
Pre-stacking System
- Whole pallet loading platform, saving labor costs and time.
Shaft-less High Speed Feeder
- Servo controlled high-speed shaft-less feeder front-and-rear auto-adjustment.
