HX Series Automatic Folder Gluer
The HX Series folder gluer is engineered for single-sheet corrugated box production. With a max speed of 100 m/min and ±1 mm accuracy, it is the ideal solution for packaging manufacturers.
HX Series Automatic Folder Gluer
The HX Series automatic folder gluer is engineered for single-sheet corrugated box production. With a max speed of 100 m/min and ±1 mm accuracy, it is the ideal solution for packaging manufacturers.
Key Benefits of the HX Series Folder Gluer
Engineered for maximum throughput and minimum downtime — every feature is designed to help corrugated box manufacturers scale production efficiently.
One-Touch Adjustment
Simplify operations with intuitive single-button controls for rapid setup and configuration.
Reinforced Keel Base
Heavy-duty foundation ensures stability and precision during high-speed operations.
Pneumatic Glue System
Advanced pneumatic glue supply for consistent, reliable adhesion across all paper types.
Wireless Remote Control
Independent wireless control system for flexible machine operation and monitoring.
Order Memory Function
Save and recall job settings for rapid job changes in just 3-5 minutes.
Synchronous Belt Drive
Eliminates cold-start skid and ensures smooth, reliable paper transmission.
Choose Your Model
High Speed Automatic Single-Sheet Folder Gluer
PRODUCT FEATURES
- The key feature of the machine is full computer control, easy operation, stable quality, high speed to achieve economic benefits, labor cost saving.
- Job-change can be done in 3-5 minutes for mass production. (Order memorizing function included)
- Suitable for A/B/C/AB flute, 3ply, 5ply, 7ply corrugated paper.
- Automatic paper folding, correcting, gluing, counting and stacking.
- Use the paper correction device to make secondary compensation andcorrect the positioning mistake, eliminate the unaligned part to perfectly stitch the box.
- One-key conversion between gluing function.

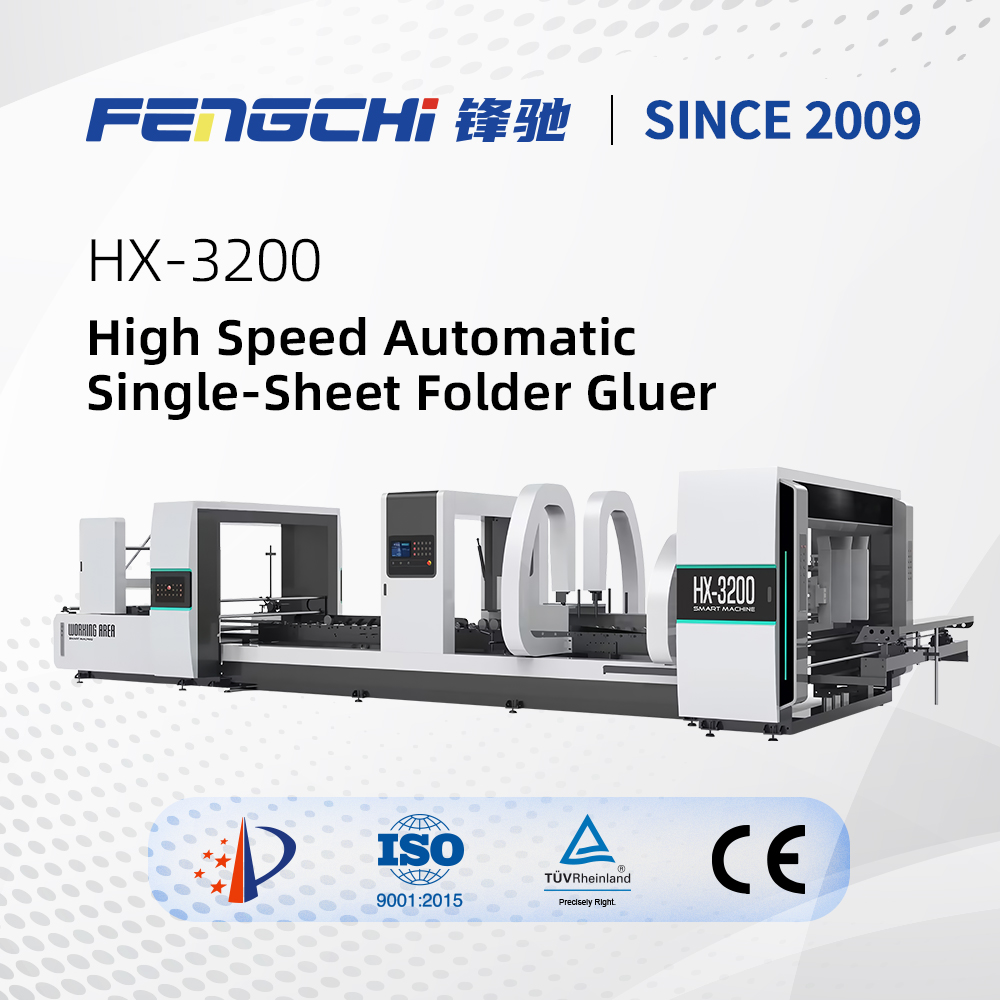

High Speed Automatic Single-Sheet Folder Gluer
PRODUCT FEATURES
- The key feature of the machine is full computer control, easy operation, stable quality, high speed to achieve economic benefits, labor cost saving.
- Job-change can be done in 3-5 minutes for mass production. (Order memorizing function included)
- Suitable for A/B/C/AB flute, 3ply, 5ply, 7ply corrugated paper.
- Automatic paper folding, correcting, gluing, counting and stacking.
- Use the paper correction device to make secondary compensation andcorrect the positioning mistake, eliminate the unaligned part to perfectly stitch the box.
- One-key conversion between gluing function.
Technical Specifications
Two configurations available to match your production requirements. Both models share the same core technology — choose based on your maximum sheet size.
| Parameter / Model | HX-2800 | HX-3200 |
|---|---|---|
| Max. sheet size (L×W) | 2800mm × 1200mm | 3200mm × 1200mm |
| Min. sheet size | 680mm × 300mm | |
| Max. speed | 100 m/min | |
| Scissor opening accuracy | ±1mm (If the carton pressing is accurate, there is virtually no deviation.) | |
| Large/small opening accuracy | ±1.5mm (If the carton pressing is accurate, there is virtually no deviation.) | |
| Net weight | 7 T | 9 T |
| Machine dimensions (L×W×H) | 12500×4100×2300mm | 13500×4500×2300mm |
| Air pressure standard | 0.6-0.8 MPa , 0.36 m³/min | |
| Power supply | (3P 5W) AC380V±10%, 50Hz | |
| Power | ≤7 KW (Frequency conversion speed control) | ≤11 KW (Frequency conversion speed control) |
| Applicable corrugated board | A, B, C, AB, AC, BC, BE flute, 3-ply, 5-ply corrugated board | |
* Full computer control, stable quality. Paper correction device for secondary compensation, eliminating misalignment.
Machine Highlights

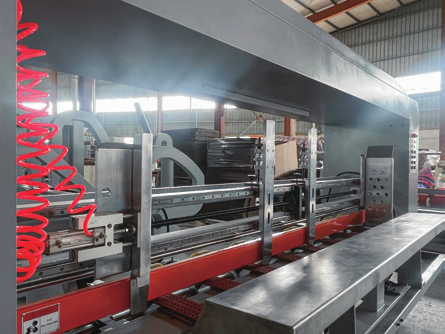

Feeding Part
- With the retention-frame pneumatic flap, more stable, higher accuracy.
- Siegling high wear-resistance suction belt, can control the air volume, ensure complete paper adsorption, ensure stable paper transmission, accurate positioning.
- Split air suction unit, effectively reduces the after-sales maintenance cost and time.

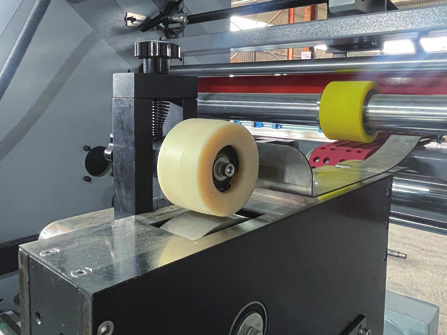

Pressing Part
- The independent edge pressing structure effectively solves the problem of thick cardboard blasting in the process of stitching.
- The split transmission shaft can be adjusted separately and tightened to ensure that the belt pressure is consistent, the paper is stable and effectively avoid the shaft phenomenon.

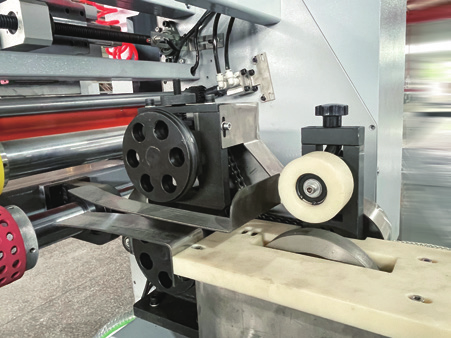

Creasing Part
- The patented design with active line pressing device to ensure stability, good forming effect and smooth packaging.
Feeding Part
- Adopts synchronous belt drive to avoid the phenomenon of cold start skid and ensure the smooth transmission ofpaper.
- Reinforced four-axis transmission to ensure that the machine operation, transportation process is stable,no deformation.
See It in Action
Industries & Applications
The HX Series folder gluer is trusted by corrugated box manufacturers across diverse industries worldwide.
Why Choose FENGCHI?
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Innovative Solutions
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
Trusted by Industry Leaders Worldwide
Global Service and Support
After Sales service begins with the arrival of the machinery at the customer’s factory.
To maximize investment whether a single machine or an entire line, the equipment needs to enter the existing production quickly and deliver its contribution. Fengchi offers a dedicated team of technicians that assemble, calibrate and commission the machinery.
Our engineers teach customer operators the machines function, calibration, available options, best practice and scheduled housekeeping.
Fengchi is always available to its customers if they have a problem, concern or malfunctionwith their machinery.
Frequently Asked Questions
Quick answers to common questions about the HX Series automatic folder gluer.
What is a single sheet folder gluer?
A single sheet folder gluer is an automated packaging machine that folds and glues individual corrugated or cardboard sheets into finished cartons and packaging boxes.
What types of corrugated board can the HX Series Folder Gluer process?
The HX Series automatic folder gluer handles A, B, C, AB, AC, BC, and BE flute corrugated board in 3-ply, 5-ply, and 7-ply configurations. It is designed for single-sheet corrugated box production across paper packaging, food & beverage, logistics, and e-commerce industries.
What is the maximum speed of the HX Series Automatic Folder Gluer?
Both the HX-2800 and HX-3200 models achieve a maximum production speed of 100 m/min. Actual throughput depends on sheet size, board type, and box complexity. We recommend scheduling a video demonstration so you can see real-world production speeds.
How long does a job change take on the HX Series Folder Gluer?
Job changes on the HX Series can be completed in just 3-5 minutes thanks to the built-in order memory function. The full computer control system saves and recalls job settings, allowing rapid switch-overs between different box sizes and specifications — a critical advantage for factories running multiple SKUs daily.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
Can the machine be customized?
Yes. We can provide customized solutions based on your production requirements.
