Model Q Window Patching Machine
Full-servo window patching solution engineered for folding carton manufacturers. From cosmetic boxes to electronics packaging — achieve flawless window patching with creasing and V-cut in one pass.
Model Q Window Patching Machine
Full-servo window patching solution engineered for folding carton manufacturers. From cosmetic boxes to electronics packaging — achieve flawless window patching with creasing and V-cut in one pass.
Key Features
The Model Q Series full servo window patchers are ideal for creasing & V-cut. They help cardboard packaging and folding carton manufacturers improve production efficiency.
High Productivity
Max speed 9,000 sheets/hr (155m/min), continuous 8,000 sheets/hr (138m/min), 24h non-stop.
Precision Control
±0.5 mm film accuracy. (full‑servo bus + proprietary tech)
Intelligent Collection
Auto count & stack collection for non‑box products.
Long-Term Durability
35% load‑reserve servos; > 15 year life span.
Fast Setup & Changeover
Digital feed, glue‑position & film‑length settings.
Synergistic Drive System
6 servos + 3 motors; one‑touch smart operation.
Choose Your Model

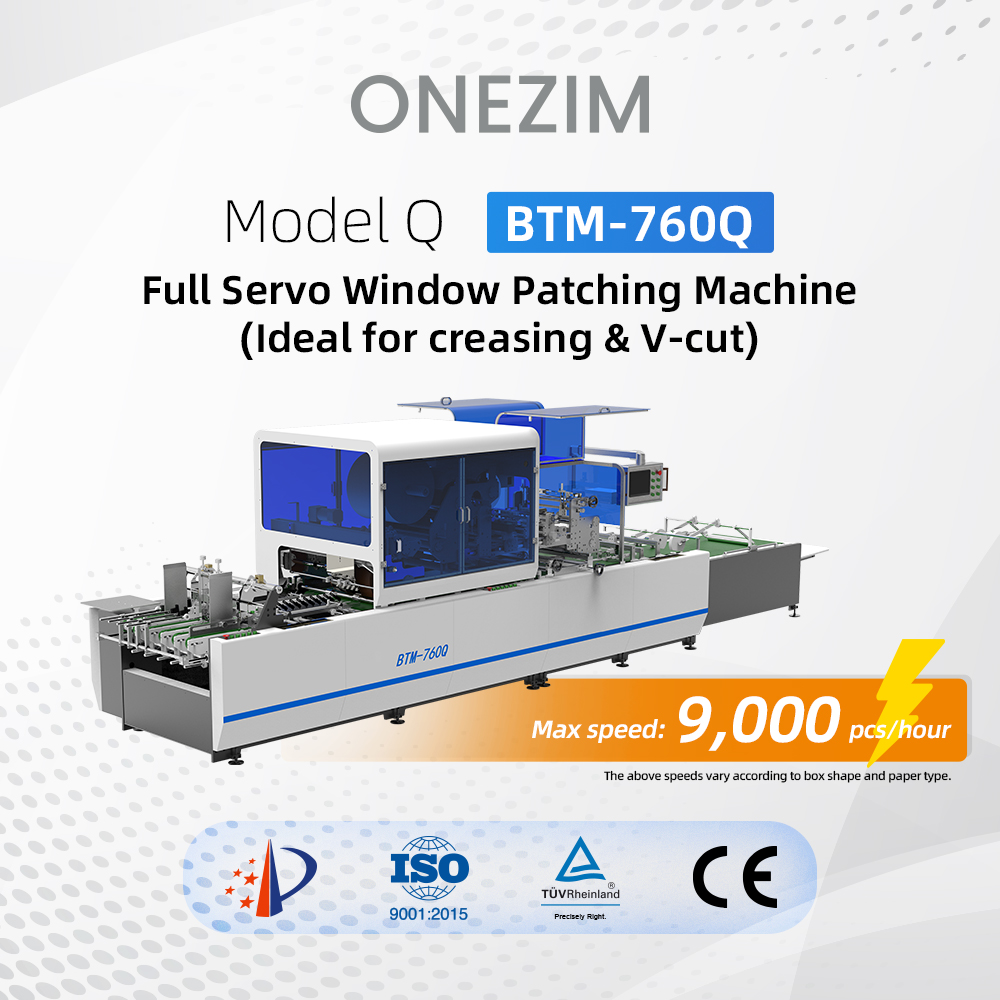

BTM-760Q Window Patcher
MAIN FEATURES:
- High-Speed Efficiency:
Max speed 9,000 sheets/hr (155m/min); continuous 8,000 sheets/hr (138m/min), 24h non-stop. - Intelligent Sheet Collection:
Auto count & stack collection for non‑box products. - Precision Control:
±0.5 mm film accuracy (full‑servo bus + proprietary tech). - Long-Term Durability:
35% load‑reserve servos; > 15 year life span. - Intelligent Setup:
Digital feed, glue‑position & film‑length settings. - Synergistic Drive:
6 servos + 3 motors; one‑touch smart operation.

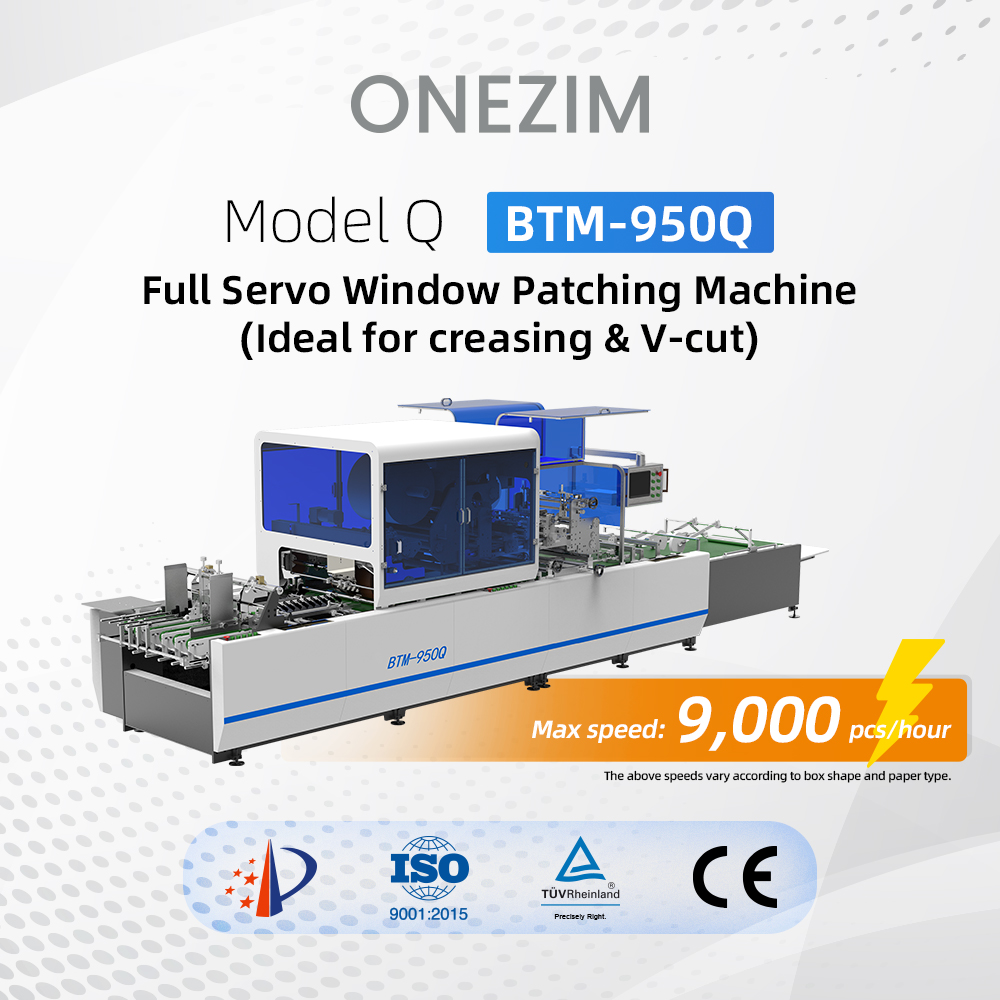

BTM-950Q Window Patcher
MAIN FEATURES:
- High-Speed Efficiency:
Max speed 9,000 sheets/hr (155m/min); continuous 8,000 sheets/hr (138m/min), 24h non-stop. - Intelligent Sheet Collection:
Auto count & stack collection for non‑box products. - Precision Control:
±0.5 mm film accuracy (full‑servo bus + proprietary tech). - Long-Term Durability:
35% load‑reserve servos; > 15 year life span. - Intelligent Setup:
Digital feed, glue‑position & film‑length settings. - Synergistic Drive:
6 servos + 3 motors; one‑touch smart operation.
BTM-1100Q Window Patcher
MAIN FEATURES:
- High-Speed Efficiency:
Max speed 9,000 sheets/hr (155m/min); continuous 8,000 sheets/hr (138m/min), 24h non-stop. - Intelligent Sheet Collection:
Auto count & stack collection for non‑box products. - Precision Control:
±0.5 mm film accuracy (full‑servo bus + proprietary tech). - Long-Term Durability:
35% load‑reserve servos; > 15 year life span. - Intelligent Setup:
Digital feed, glue‑position & film‑length settings. - Synergistic Drive:
6 servos + 3 motors; one‑touch smart operation.
Technical Specifications
Choose from three models designed to handle a wide range of packaging requirements with precision and efficiency.
| Parameter / Model | BTM-760Q | BTM-950Q | BTM-1100Q |
|---|---|---|---|
| Paper size (W x L) | 760 x 780 mm - 150 x 130 mm | 950 x 780 mm - 150 x 130 mm | 1100 x 780 mm - 150 x 150 mm |
| Window dimension (W x L) | 380 x 300 mm - 50 x 50 mm | 380 x 300 mm - 50 x 50 mm | 480 x 350 mm - 50 x 50 mm |
| Paper weight / sheet thickness | Cardboard: 200~2000 g/㎡ Corrugated board: 1-3 mm | ||
| Film thickness | 0.1-0.3 mm | ||
| Positioning accuracy | ±0.5 mm | ||
| Mechanical speed | Up to 9000 sheets/hour | ||
| Power voltage | 380V/50Hz (Three-phase) | ||
| Machine power | 16 kW | ||
| Machine weight | 3000 KG | 3200 KG | 4000 KG |
| Overall dimension (L x W x H) | 7500 x 1600 x 2000 mm | 7500 x 1750 x 2000 mm | 7500 x 1950 x 2000 mm |
* Need a tailored specification? Contact our sales engineers for custom configuration based on your site requirements.
Machine Highlights

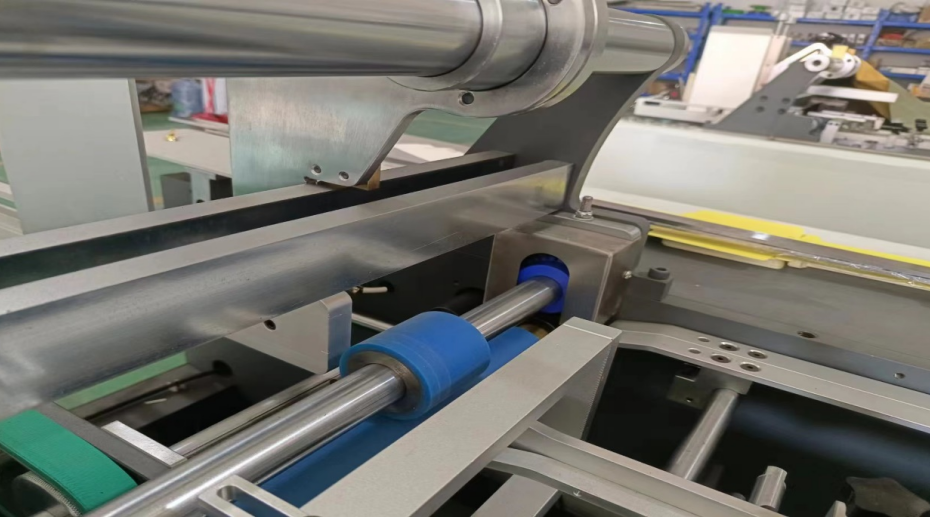

Paper Pressing Wheel Assembly
- Gear-driven dual-power transmission on upper/lower wheels delivers exceptional stability during paper conveyance, particularly with corrugated paper.

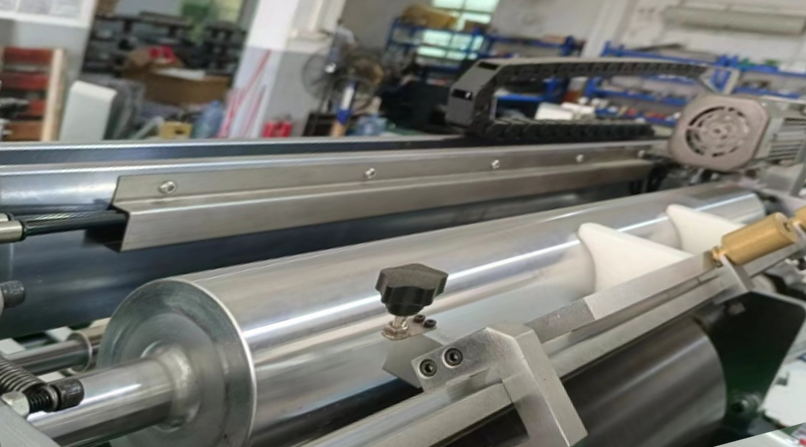

Glue Distribution System
- Dedicated servo drive simplifies transmission and maintenance.
- Entire unit slides out for cleaning.

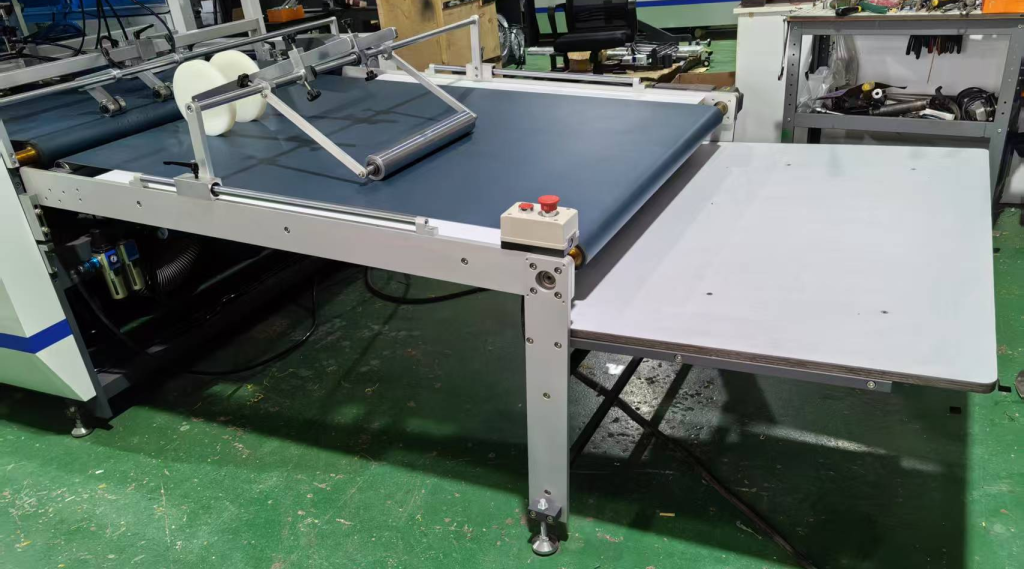

Box Collection Unit
- Fish-scale collection structure with weighted rollers enhances film-box adhesion.

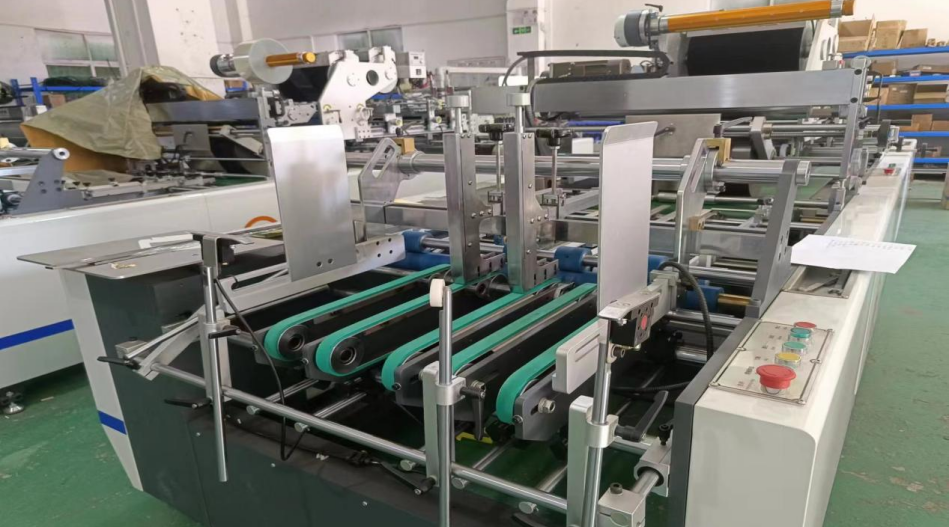

Highlights Paper Feeding System
- Features optimally stable separation blades with zero wobble when locked, ensuring superior paper separation.
- Single-plate feeding belt simplifies maintenance and replacement. Linear bearings enable smooth front/rear movement of the paper pressing mechanism; pneumatic vibration motors reduce noise and optimize vibration.

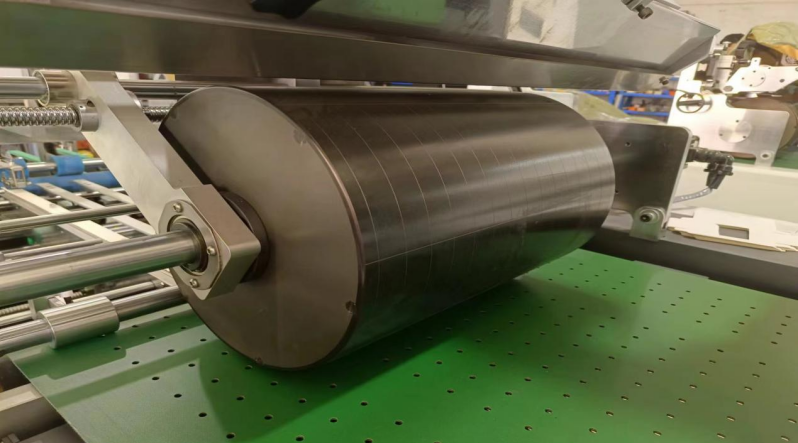

Gluing System
- Independent servo drive allows parameter input via HMI without wrenches or phase adjustment.
- Hard-anodized aluminum alloy glue rollers offer lightweight and high hardness.
- Optimized program with glue sensor enables automatic activation with product presence, separation without product, and jam alarm/shutdown.
Pusher Claw System
- Linear guide fixation eliminates vibration (vs. linear bearings), ensuring stable paper feed.
- Patent-certified synchronous belt drive provides quiet operation, stretch resistance, oil-free performance, low noise, and sustained precision.
- Front/rear adjustable press wheels adapt to product positions; side-fixed design simplifies setup. Side guides synchronize with claws to reduce adjustment frequency and time.

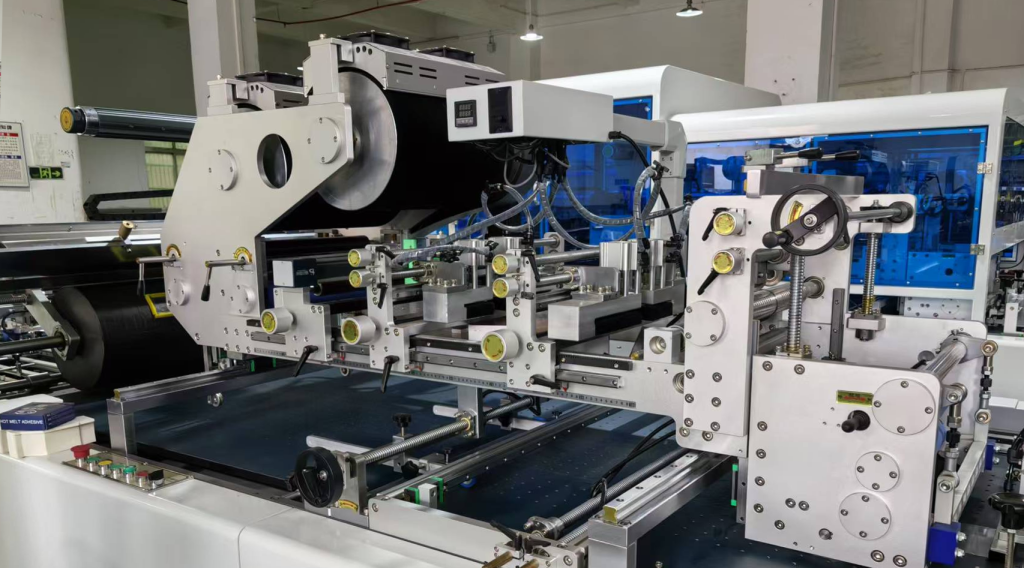

Film Forming Section
Dual-servo drive technology (patent-certified) integrates film
feeding, horizontal creasing, punching, print registration,
vertical creasing, and cutting for precision forming.
- Film Feeding Unit: Dual linear guides prevent swing arm deviation; PLC-controlled motor runs continuously during start/stop; heating optional for films ≥ 0.25 mm.
- Horizontal Creasing: Linear module + stepper motor (smooth high-speed operation, easy maintenance).
- Punching Unit: Cylinder-driven metal mold; front/rear adjustment (linear guides + rack-and-pinion); left/right adjustment (linear guides + ball screws).
- Print Registration: Precise adjustment of printed patterns.
- Vertical Creasing Unit: Vertical adjustment (linear guides + eccentric blocks); horizontal adjustment (guides + ball screws).
- Cutting Unit: Cylinder-powered spring-compressed blades for quick adjustment.

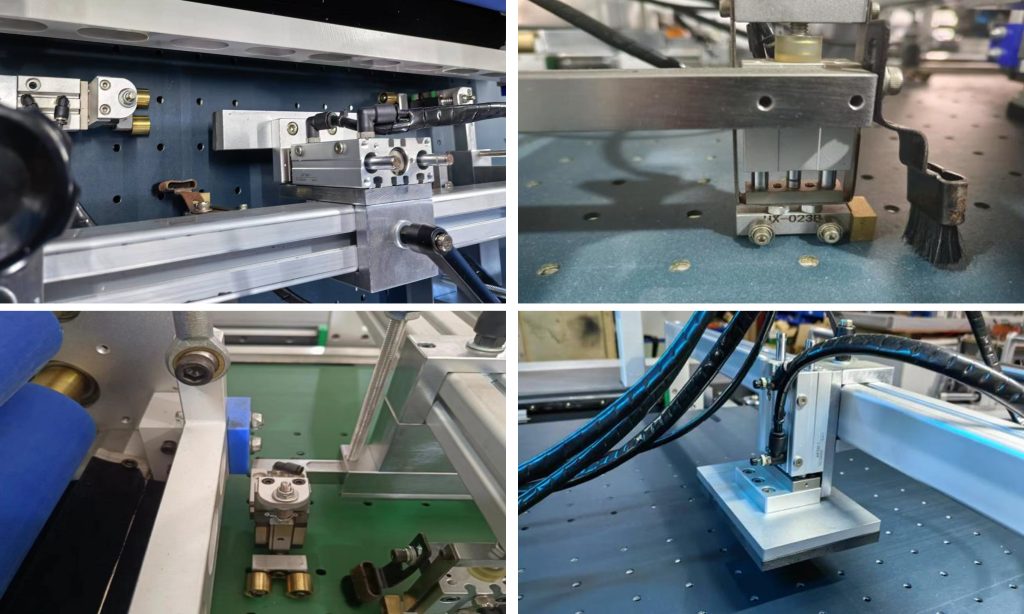

Lamination Section
- Front positioning: Two cylinders + four bearings + positioning block (bearings contact belt, block suspends to protect belt).
- Side positioning: Conventional guides or invention-patented push gauge.
- Pneumatic double-pressing sequence: Boxes positioned → film extended → belt stops → pressed/cut → system reset.

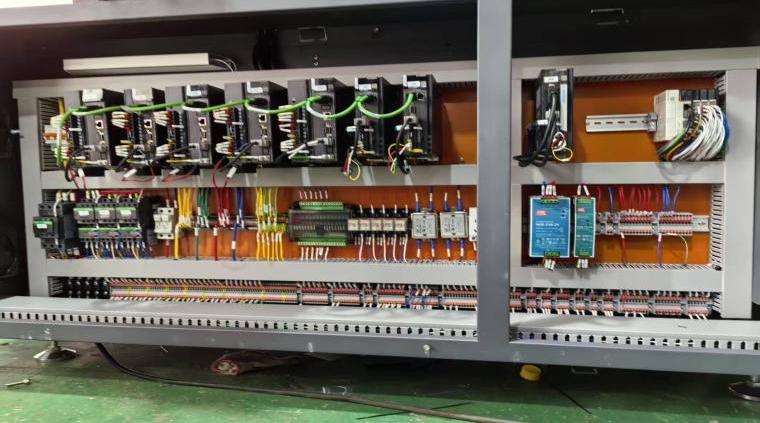

Electrical System
- INOVANCE components (China’s top-tier brand) with bus-based control ensure efficient, stable operation and simplified maintenance.
See It in Action

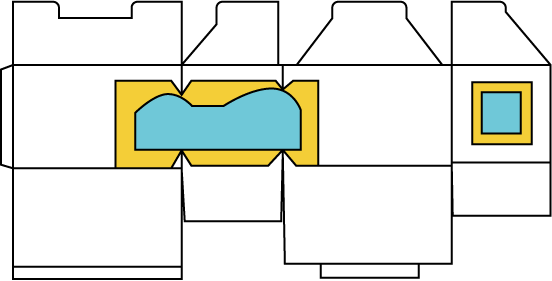

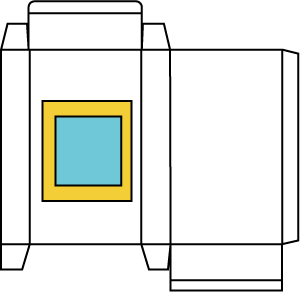

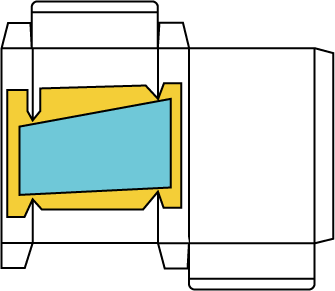

Window Styles Supported
The Model Q handles a wide range of window configurations for folding carton packaging — from simple flat windows to complex multi-crease designs.

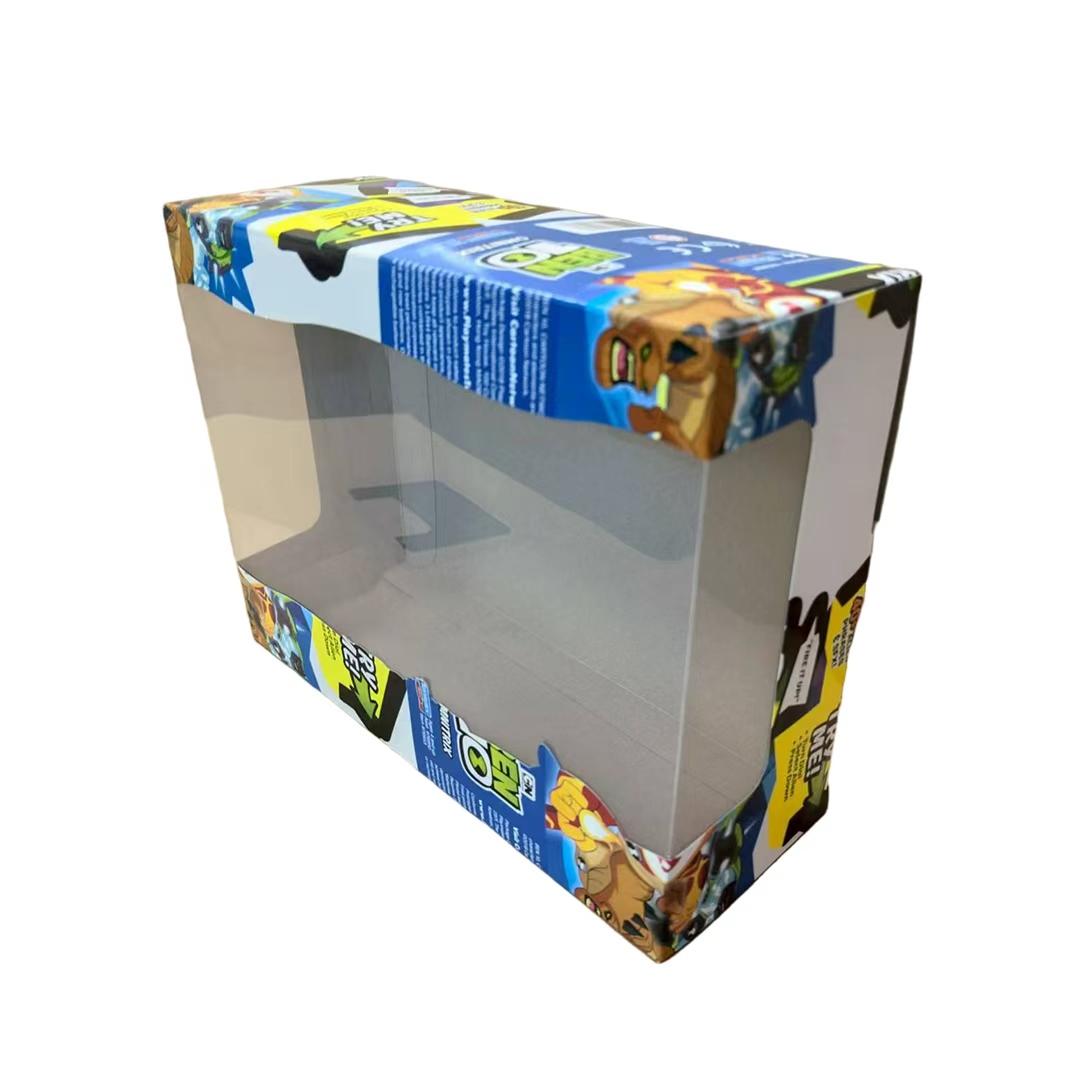

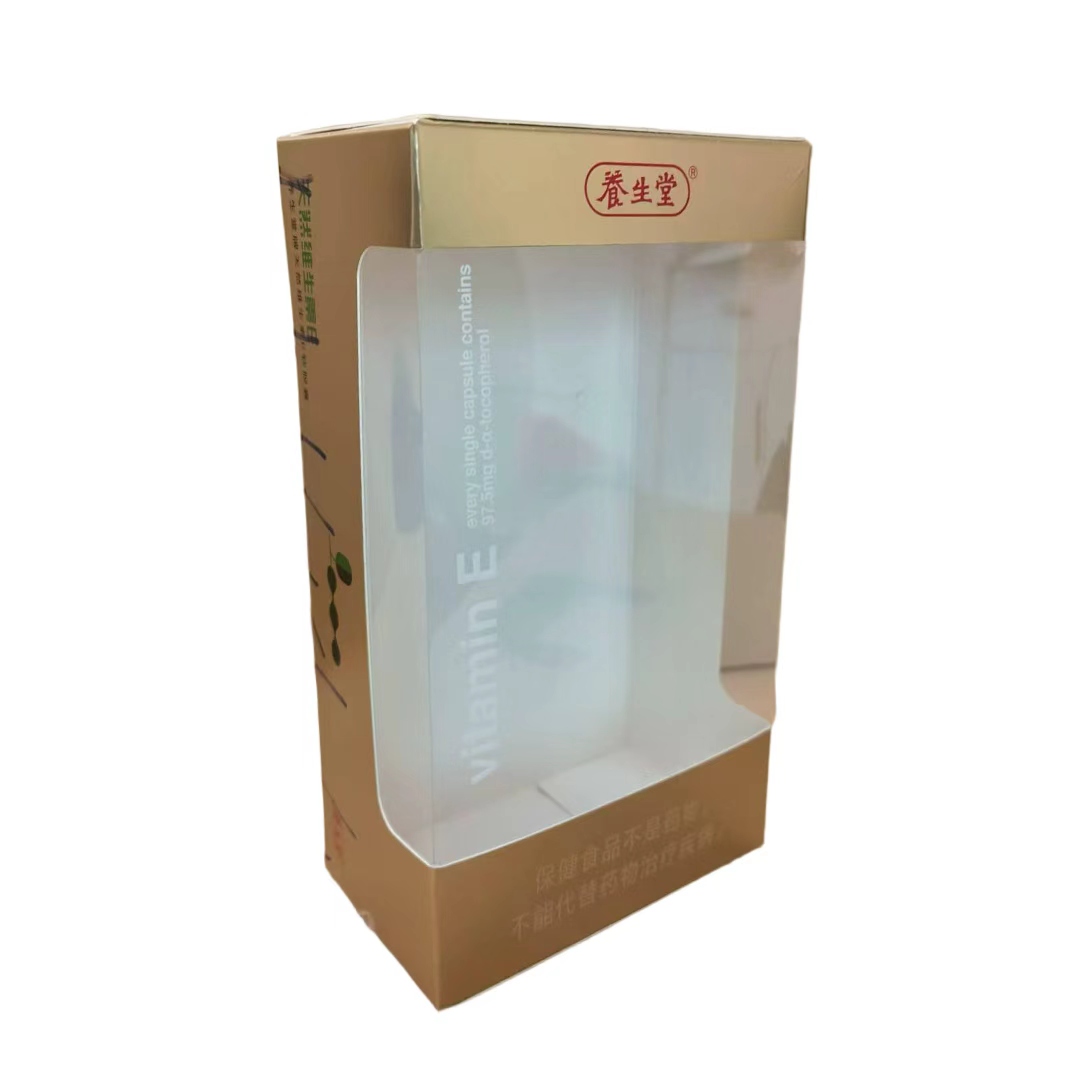

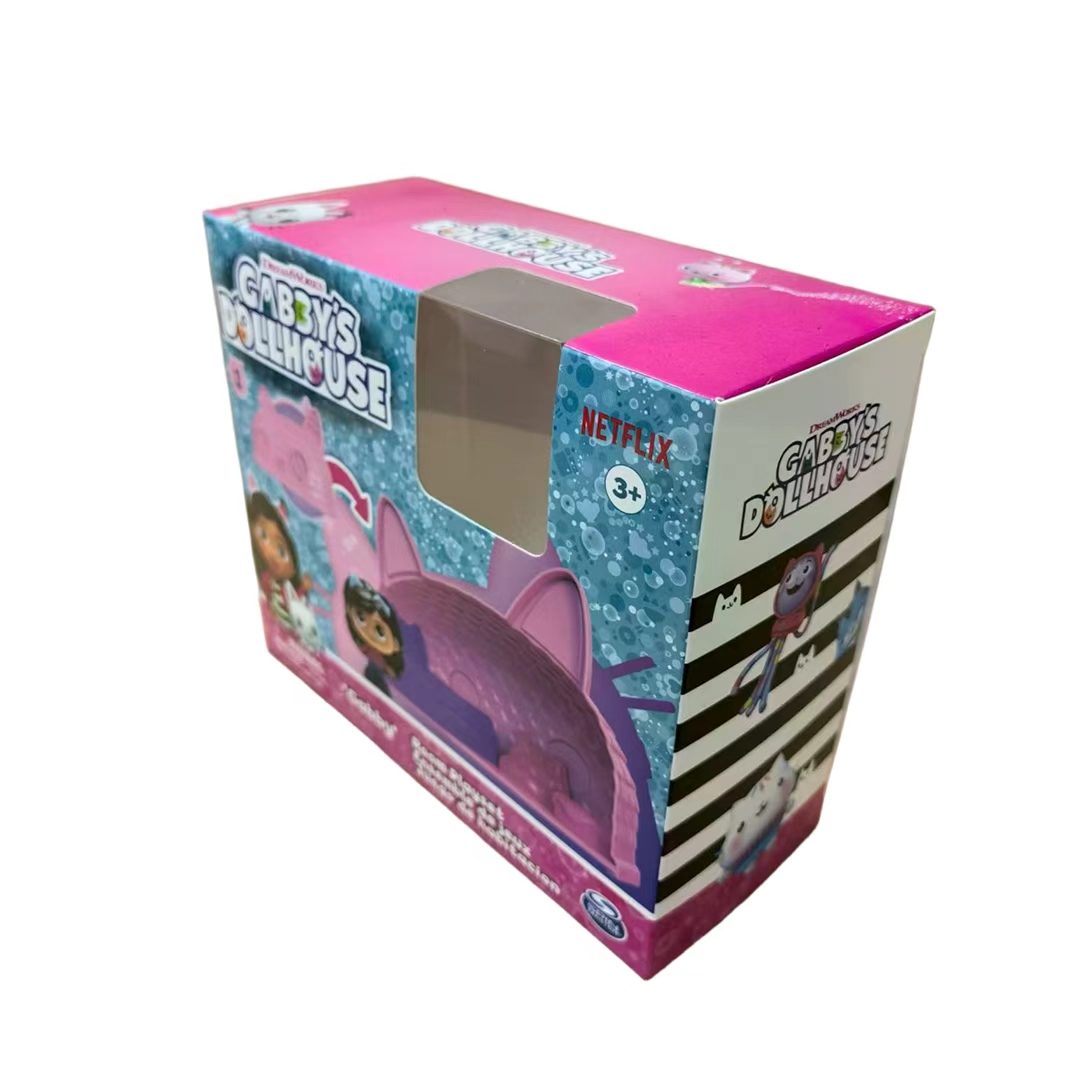

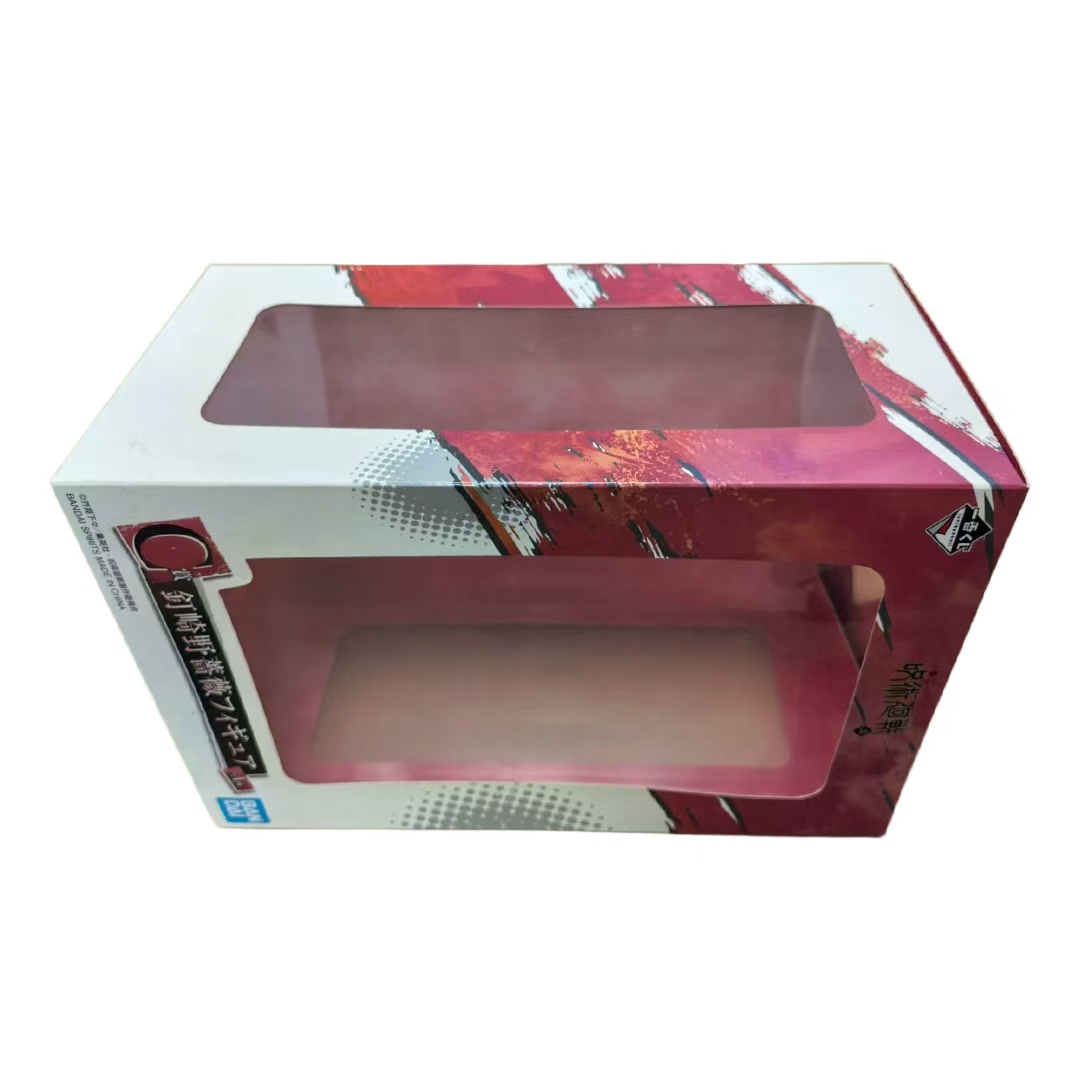

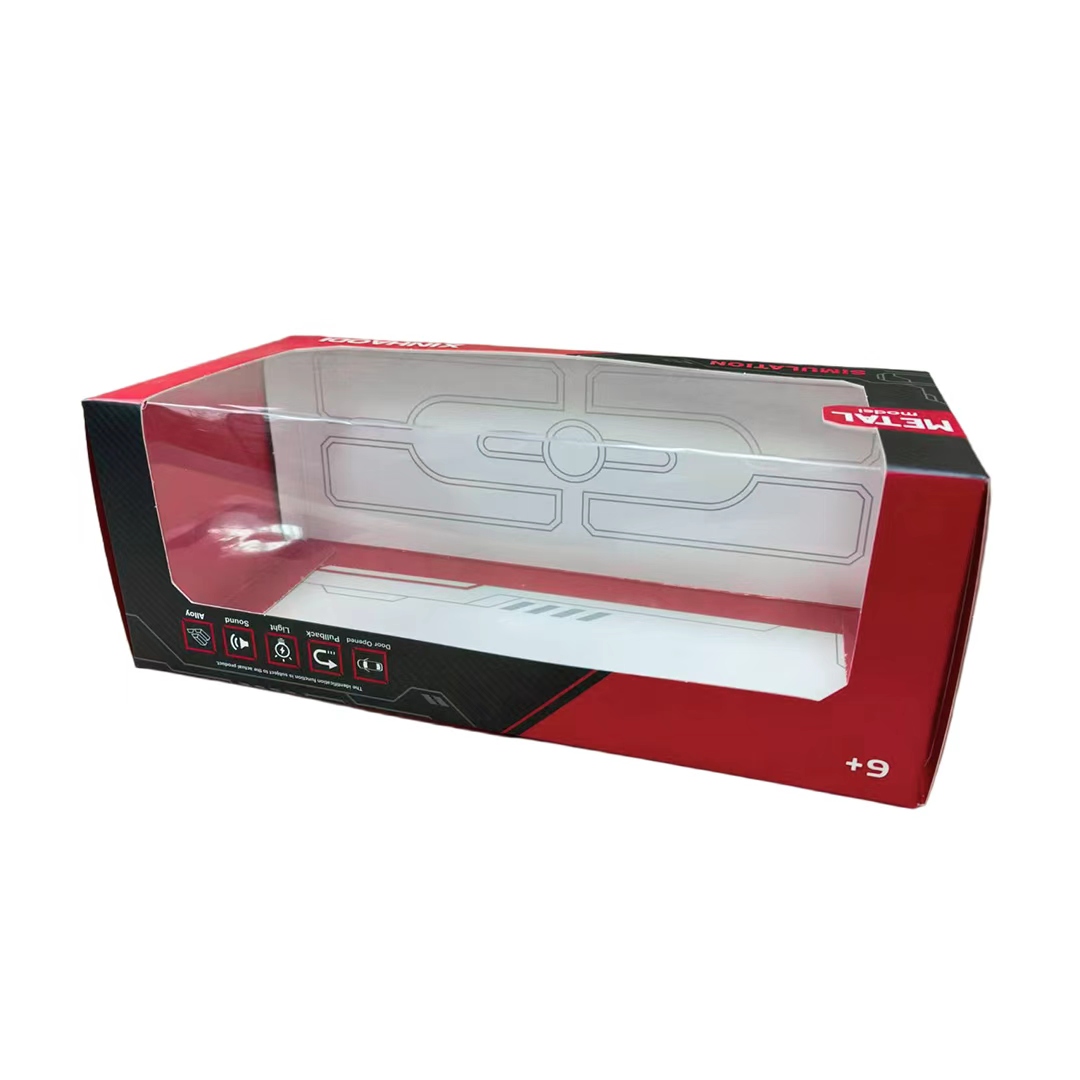

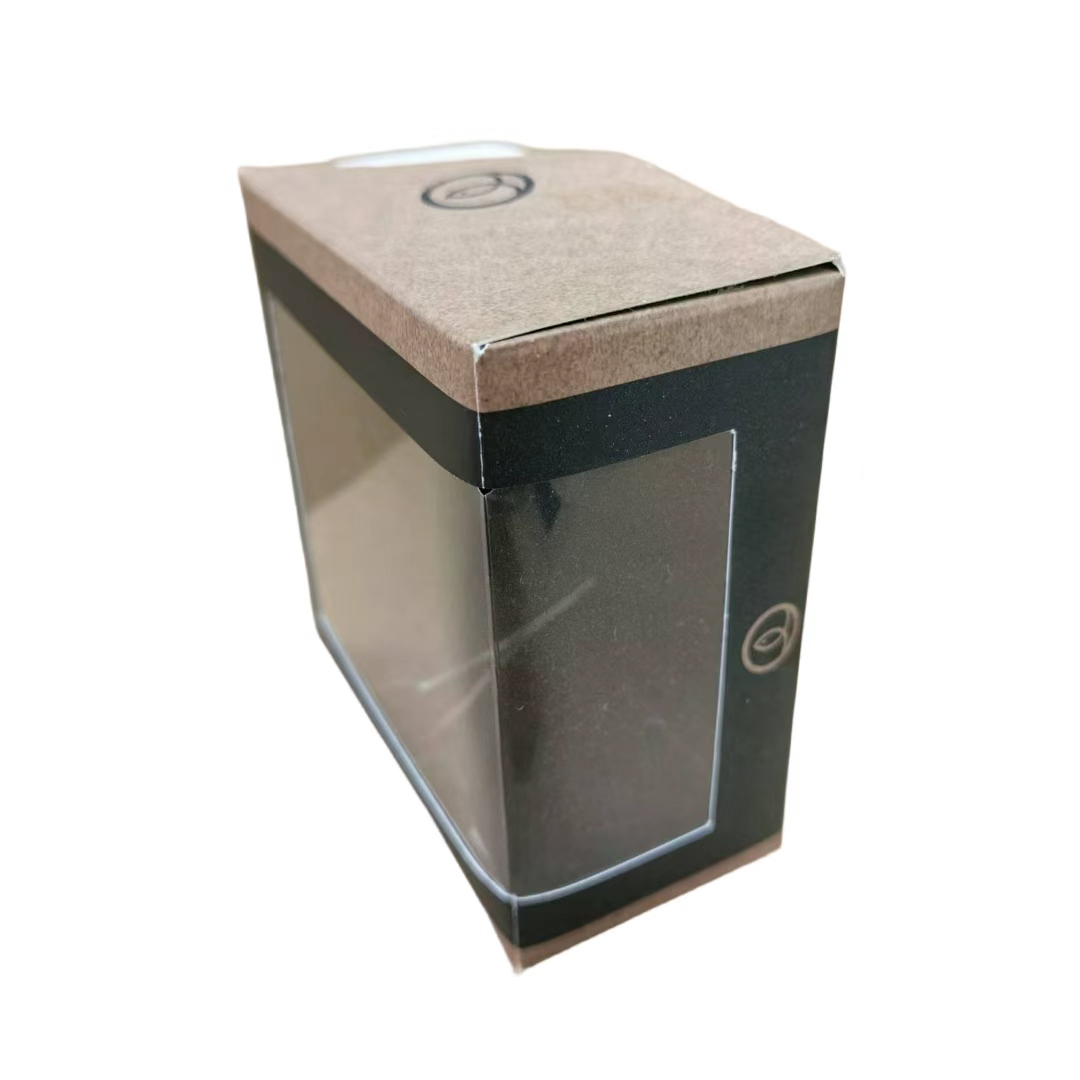

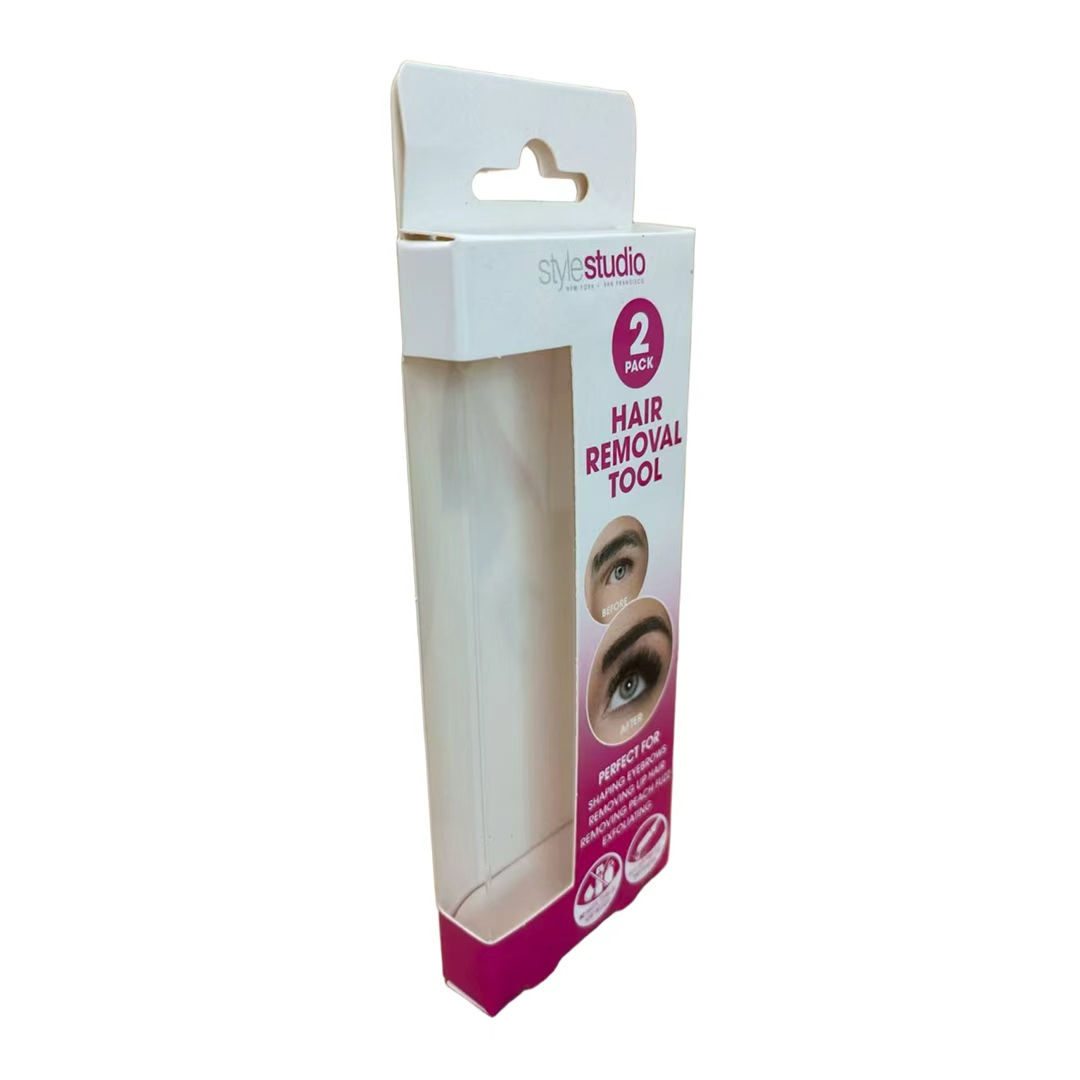

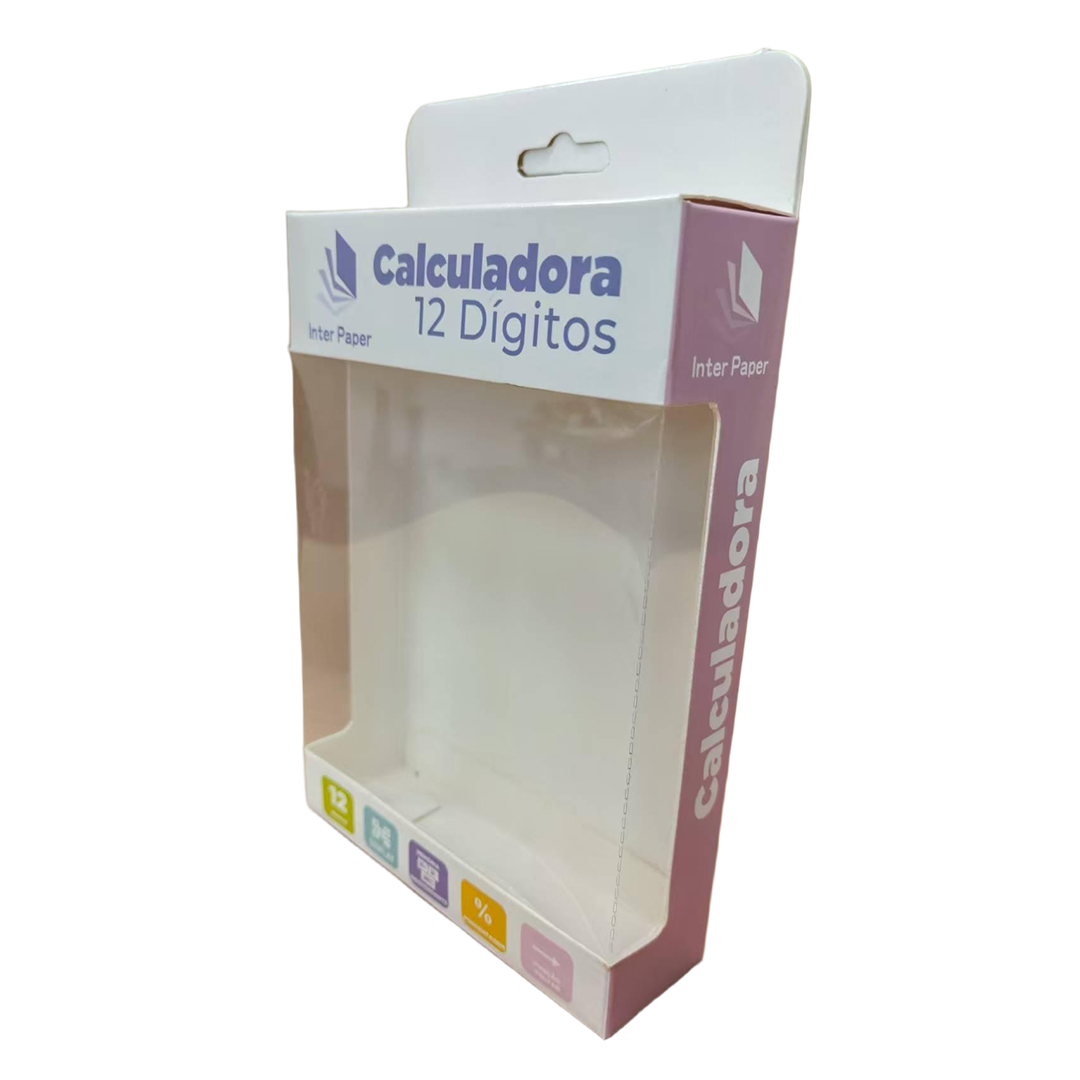

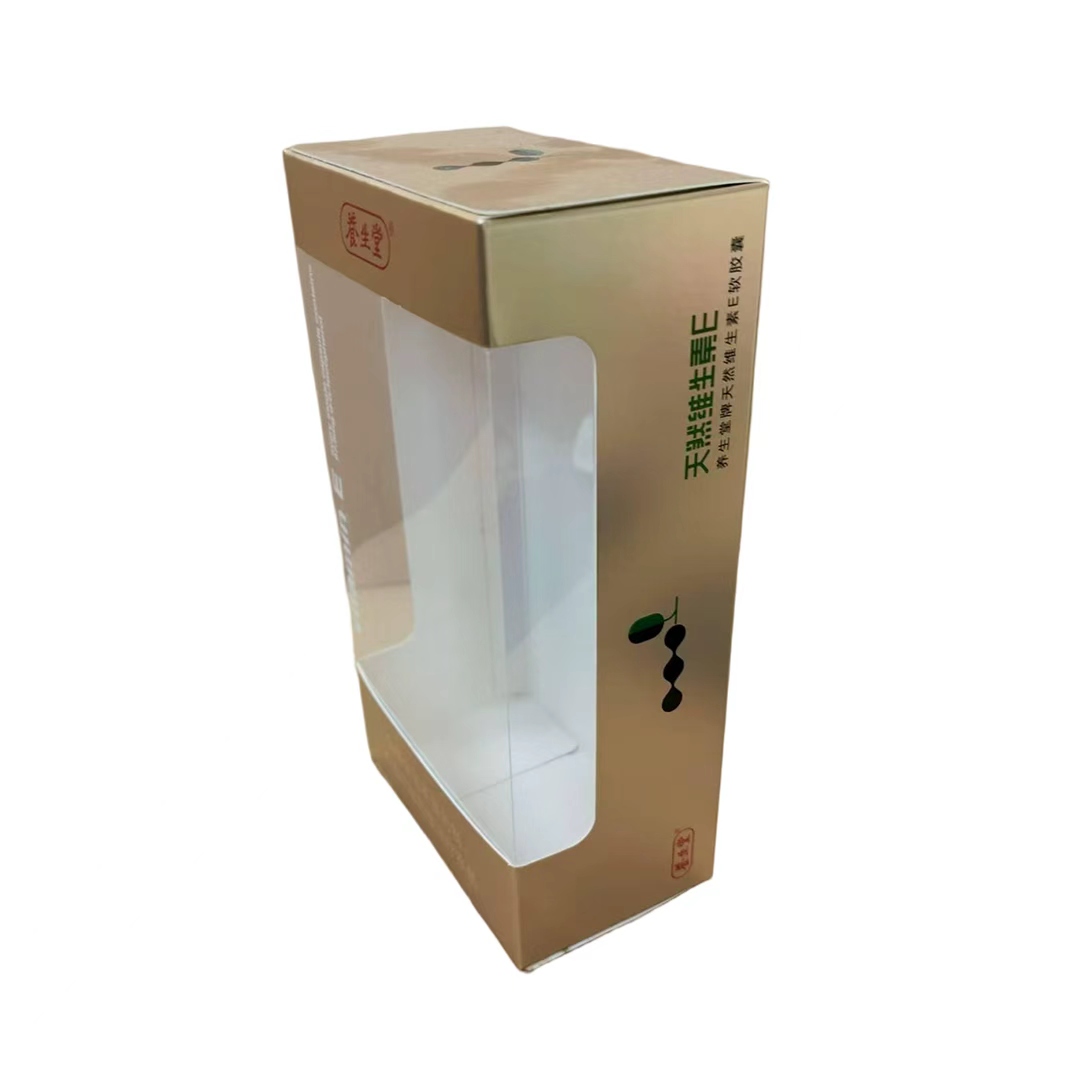

Final Product Samples
Exported Worldwide
Why Partner with FENGCHI
Our commitment to quality, reliability, and customer success has made us the preferred choice for packaging manufacturers worldwide.
Quality Assured
Manufactured by skilled technicians. ISO9001 certified quality management system. CE certified products ensuring international compliance.
Vast Experience
We find the right solution for your packaging production—from stand-alone machines to fully integrated turnkey systems. Customization is our strength.
50 Patents
We continuously push the boundaries of speed and performance, securing 50 patents through independent research and development.
Global Support
11 service and support centers worldwide with around 50 sales agents. Local support on a global level. Direct technical support and parts department.
What Our Customers Say
Hear from packaging professionals who have transformed their production with the Model Q Window Patcher.
“Model Q gave our window patching line a real productivity upgrade. The 9,000 sheets/hour max speed and ±0.5 mm positioning accuracy helped us keep quality consistent while reducing manual adjustments. The one-touch smart operation and digital setup also made changeovers much easier for our team.”
“We needed a machine that could handle different window styles without sacrificing precision, and Model Q delivered. It works well for a wide range of folding carton products, from tissue boxes to cosmetic and premium gift packaging, and the servo-controlled system gives us the stability we were looking for.”
“What impressed me most was the engineering detail. The 6 servos + 3 motors setup, intelligent sheet collection, and maintenance-friendly design made the machine feel built for long-term use. It’s a strong fit for continuous production, especially when reliability and uptime matter.”
Trusted by Industry Leaders Worldwide
Our Service for Your Success
Fengchi Printing Machinery knows that successful installation, training, and support are critical to your operation and achieving the profitability gains you target. This drives our commitment to your success.
Our goal is to provide you with the tools and technical knowledge that your in-house maintenance needs, to be able to fix their own machines.
Our technical support team and parts department work with customers to resolve issues over the phone, but when special care is needed, our team is prepared to make emergency field service visits, to get your plant up and running quickly. Parts, service, and support are handled directly through the Fengchi technical support group.
Frequently Asked Questions
What products can the Model Q Window Patching Machine produce?
The machine is suitable for gift boxes, cosmetic cartons, bakery boxes, toy packaging, and many other window packaging applications.
What is the maximum speed of the Model Q Window Patcher?
9,000 sheets per hour (155 m/min) maximum mechanical speed, with a sustained production speed of 8,000 sheets/hour for continuous 24-hour operation — approximately 192,000 finished cartons per day.
What film materials are supported?
The machine is designed for PET and PVC film applications commonly used in packaging industries.
Can the machine be adjusted for different window sizes?
Yes, the Model Q Window Patcher is highly customizable to accommodate various window dimensions and designs.
What is your delivery time?
Our delivery time is 10-30 working days after receiving full payment or deposit. The specific delivery time depends on the product and the order quantity.
Is technical support available for new users?
Absolutely. We provide comprehensive training and ongoing support to ensure you make the most of your investment.
Can we see the machine operating?
Yes — factory demos and video demonstrations are available on request.
How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator’s error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product’s photos and videos to make every detail clear. We also provide all lifetime warranty with paid service.
How about installation and training?
Normally, one operator can finish intallation in 2 hours with installation manual and video. If purchaser’s engineer travels at own cost to China, free training session. If engineer sent to purchaser’s factory, all travel cost paid by purchaser.
